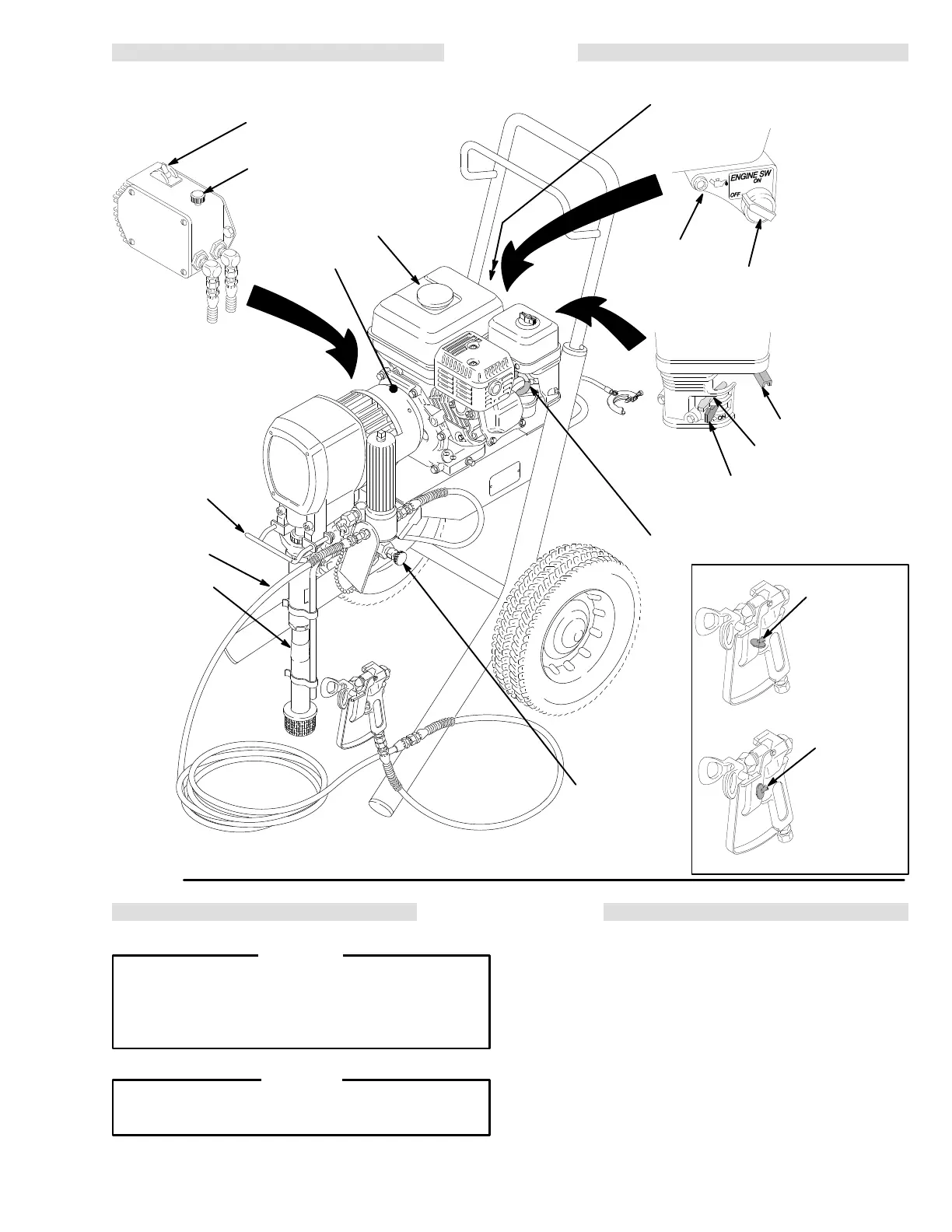

START UP
Fig
1
1–1
CLUTCH
PAIL HANGER
MAIN HOSE
BLACK FUEL
SHUT
OFF LEVER
GRAY
CHOKE
LEVER
THROTTLE
LEVER
ENGINE
ON/OFF
SWITCH
ENGINE
OIL LIGHT
PRESSURE
DRAIN V
ALVE
PRESSURE
ADJUSTING KNOB
PRESSURE CONTROL
ON/OFF SWITCH
SPARK PLUG
CABLE
GAS FILL CAP
STARTER
ROPE
SUCTION TUBE
0015
0016
0138
0136A
GUN SAFETY
LA
TCH SHOWN
ENGAGED
GUN SAFETY
LATCH
SHOWN
DISENGAGED
0137
MAINTENANCE
WARNING
To reduce the risk of serious bodily injury always
follow the Pressure Relief Procedure Warning
on page 2 before checking, adjusting, cleaning or
shutting
down the sprayer
.
CAUTION
For detailed engine maintenance and specifica-
tions,
refer to the separate engine manual.
DAILY: Check
the engine oil level and fill as
necessary
.
DAILY: Check
and fill the gas tank.
AFTER THE FIRST 20 HOURS OF OPERATION AND
EACH
100 HOURS THEREAFTER:
Change the oil.
WEEKLY: Remove
the
air filter cover and clean the ele
-
ment. In very dusty environments, check the filter daily.
Replace
the element as needed. Replacement elements
can
be purchased from your local HONDA dealer
.
WEEKLY: Check the level of the TSL in the displace-
ment pump packing nut. Fill the nut, if necessary. Keep
TSL
in the nut to help lubricate the pump packings.
SPARK PLUG: Use only a (NGK) BP6ES or BPR6ES
plug. Gap the plug to 0.025 to 0.030 in. (0.7 to 0.8 mm).
Always
use a spark plug wrench.
To Next Page
