6 308-798
Service

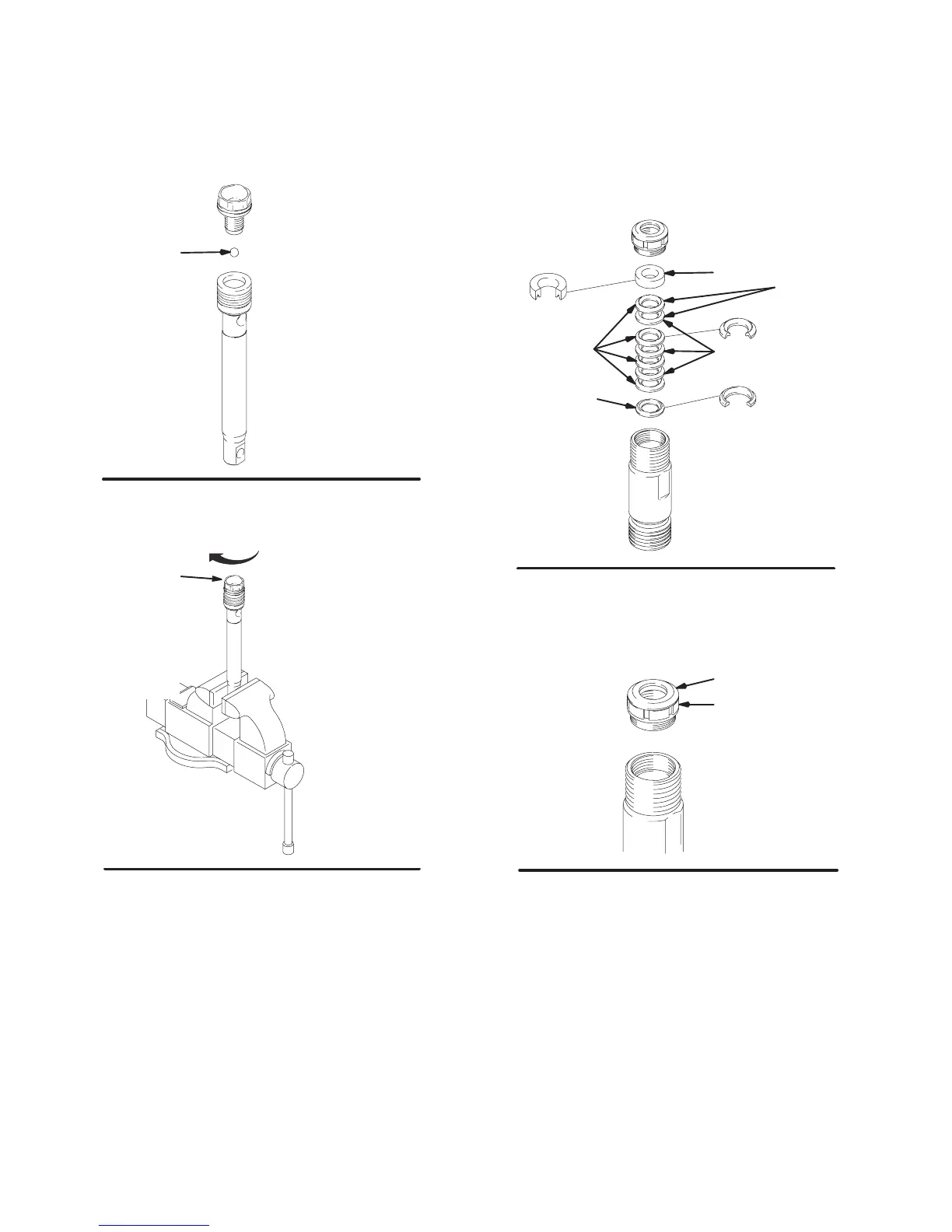

Fig. 32. Install ball (206) in piston rod. If Loctite is ap-
plied to piston valve threads, ensure that none gets on
ball.
Fig. 32
206
7575A
Fig. 33. Tighten piston valve to piston rod as specified:
Fig. 33
Torque to 32 "3 ft-lb
(239–923)
Torque to 40 "3 ft-lb
(240–291, 240–800)
Torque to 50 "5 ft-lb
(240–917)
7576A
Fig. 34. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203) and
leather packings (223) (note orientation). Place female
gland (224) in top of cylinder. Seat packings.
7573B
Fig. 34
223
224
203
204
Used on
240–291
240–800
&
240–917
Fig. 35. Install seal (201) into packing nut (202). Install
throat adjustment spacer onto packing nut. Loosely
install packing nut into cylinder.
Fig. 35
201
202
7581A
