Parts – Pump 240–917

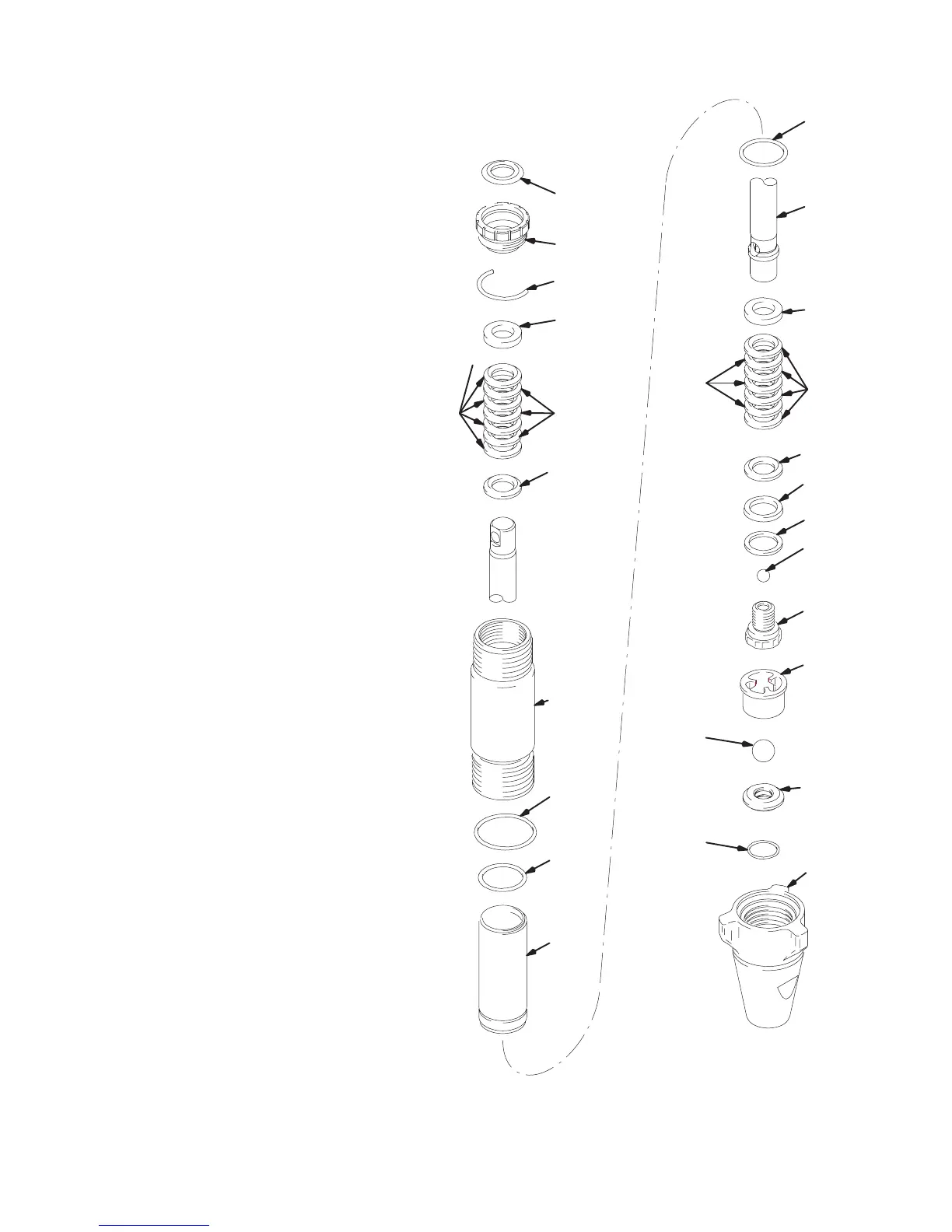

Model 240–917, Series A
Carbon Steel Displacement Pump
Ref
No. Part No. Description Qty.
201* 112–590 PLUG 1
202 189–589 NUT, packing 1
203* 193–722 V-PACKING 6
V-Max UHMWPE, blue
205 240–920 CYLINDER, pump 1
206* 107–203 BALL, sst, 0.3750 in. 1
207* 107–306 PACKING, o-ring 1
209* 112–589 SEAL, u-cup 1
210 240–580 VALVE, piston 1
212† 240–918 SEAT, carbide 1
includes 214 and 227
213 193–393 HOUSING, intake (foot) 1
214*† 107–167 BALL, sst, 0.875 in. 1
215 193–391 GUIDE, ball 1
216* 189–587 WASHER, back–up 1
217* 189–588 GLAND, female, piston 1
218* 112–591 V-PACKING, leather, piston 8
219* 189–585 GLAND, packing, male 2
220 240–921 SLEEVE, cylinder 1
221* 108–822 PACKING, o–ring 2
222 240–919 ROD, piston 1
224* 189–584 GLAND, packing, female 1
227*† 107–098 PACKING, o-ring 1
228 193–397 SPACER, nut 1
* These parts are also included in Repair Kit
240–916, which may be purchased separately.
†
These parts are also included in Carbide Seat Kit
240–918, which may be purchased separately.
*203
216
209
201*
202
224*
218*
219*
205
221*
220
222
206
219
203
217
210
215
212†
213
†*214
*218
221
207*
†*227
228
