19308-798

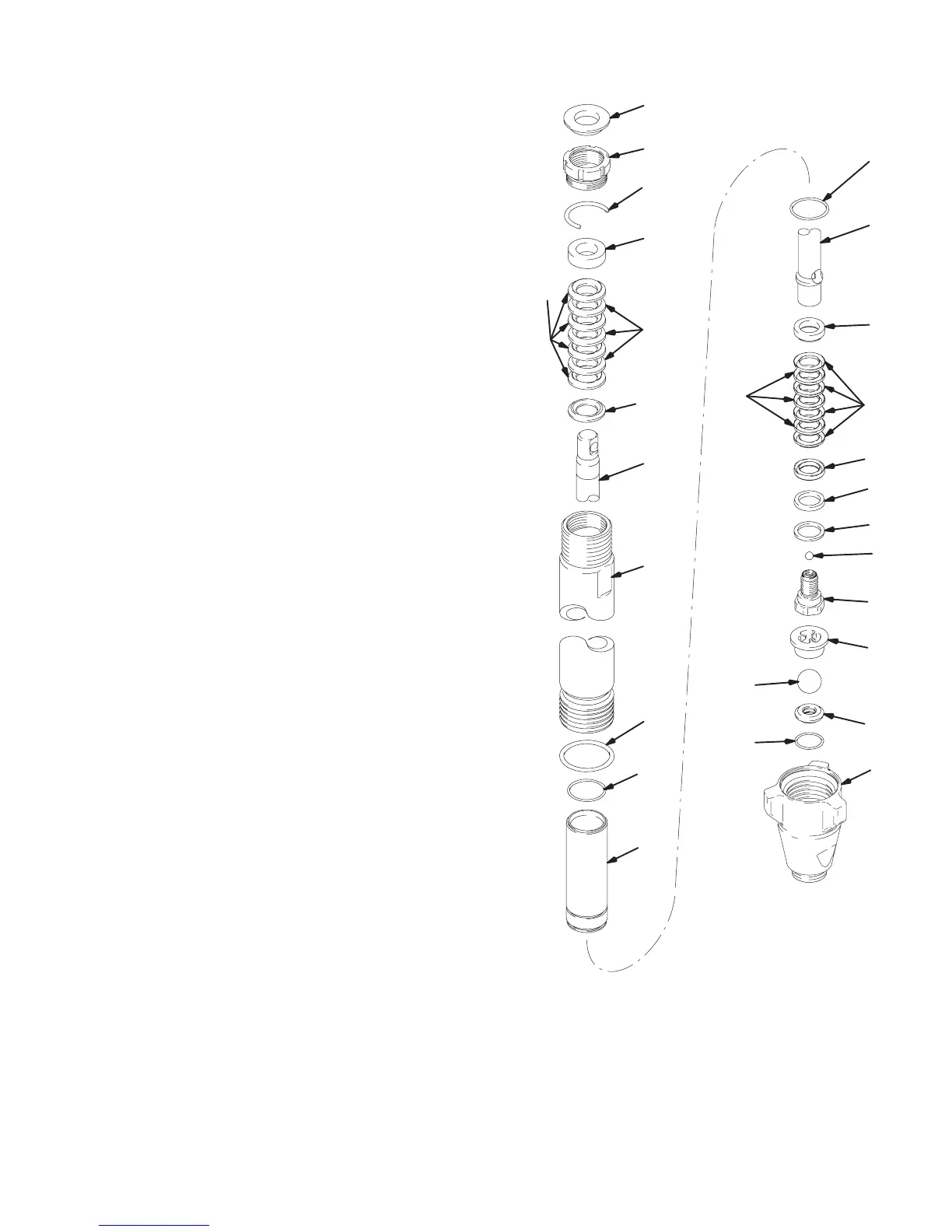

Parts – Pump 240–800
Model 240–800, Series A
Carbon Steel Displacement Pump
Ref
No. Part No. Description Qty.
201* 183–171 PLUG 1
202 193–032 NUT, packing 1
203* 193–124 V-PACKING 4
V-Max UHMWPE, blue
204* 183–176 GLAND, packing, male, throat 1
205 241–334 CYLINDER, pump 1
206* 101–947 BALL, sst, 0.3750 in. 1
207* 106–556 PACKING, o-ring 1
208* 193–125 V-PACKING, piston 4
V-Max UHMWPE, blue
209* 108–690 SEAL, u-cup 1
210 240–150 VALVE, piston 1
212† 193–028 SEAT, carbide 1
includes 214 and 227
213 194–326 HOUSING, intake (foot) 1
214*† 102–972 BALL, sst, 0.875 in. 1
215 193–027 GUIDE, ball 1
216* 186–653 WASHER, back–up 1
217* 183–185 GLAND, female, piston 1
218* 183–174 V-PACKING, leather, piston 3
219* 183–178 GLAND, packing, male 1
220 240–525 SLEEVE, cylinder 1
221* 107–098 PACKING, o–ring 2
222 241–285 ROD, piston 1
223* 183–175 V–PACKING, leather, throat 3
224* 183–177 GLAND, packing, female 1
227*† 108–526 PACKING, o-ring 1
228 193–127 SPACER, nut 1
* These parts are also included in Repair Kit
240–248, which may be purchased separately.
† These parts are also included in Carbide Seat Kit
240–524, which may be purchased separately.
*203
216*
209*
201*
202
224*
223*
204*
205
221*
220
222
206*
219*
208*
217*
210
215
212†
213
†*214
*218
221*
207*
†*227
228

222
