Spraying Techniques
Swivel Tube Adjustment
The adjustable swivel tube allows the HVLP–Turbine
Gun to be held in any position why spraying. To adjust
the position of the tube in the cup:
1. Loosen the nut (A) with a wrench (42).
2. Rotate the cup to the desired spray position.
3. Retighten the nut (A) with a wrench (42).

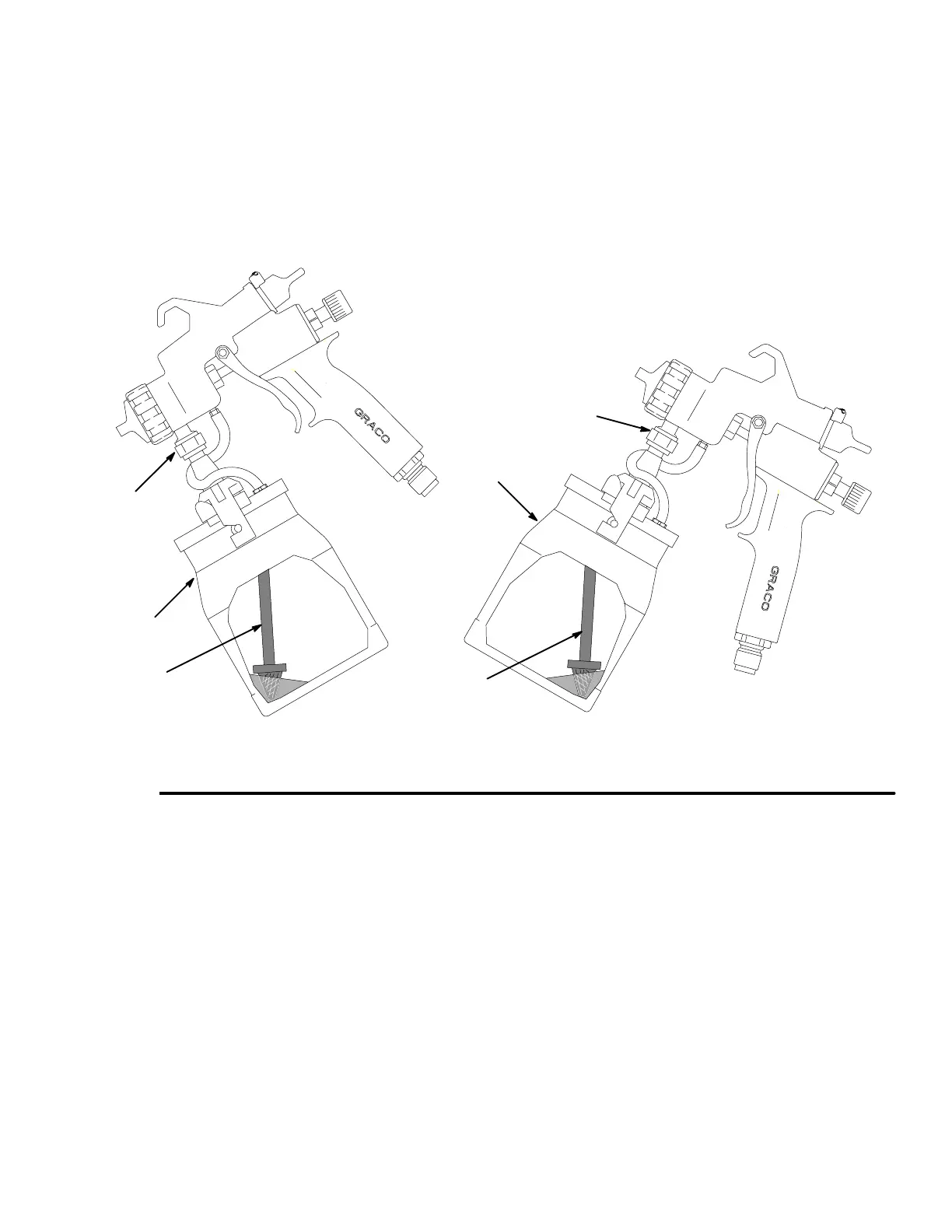

Fig. 16
A
Cup
A
Cup
Swivel tube positioned for spraying UPSwivel tube positioned for spraying DOWN
TI0804
Swivel tube
Swivel tube
Converting the HVLP Turbine Cup Feed
Gun to Pressure Feed (Parts, page 22).
1. Using a pair of pliers, remove air pressure tube
(30b) from air stem (31).
2. Hold adapter fitting (28) with wrench. Remove cup
assembly.
3. Remove air stem (31) from gun body (1).
4. Apply medium strength thread locker to set screw
(36) and assemble into gun body (1).
NOTE: To convert from pressure feed cup to cup
feed, reverse these instructions.
