309205 15
Maintenance

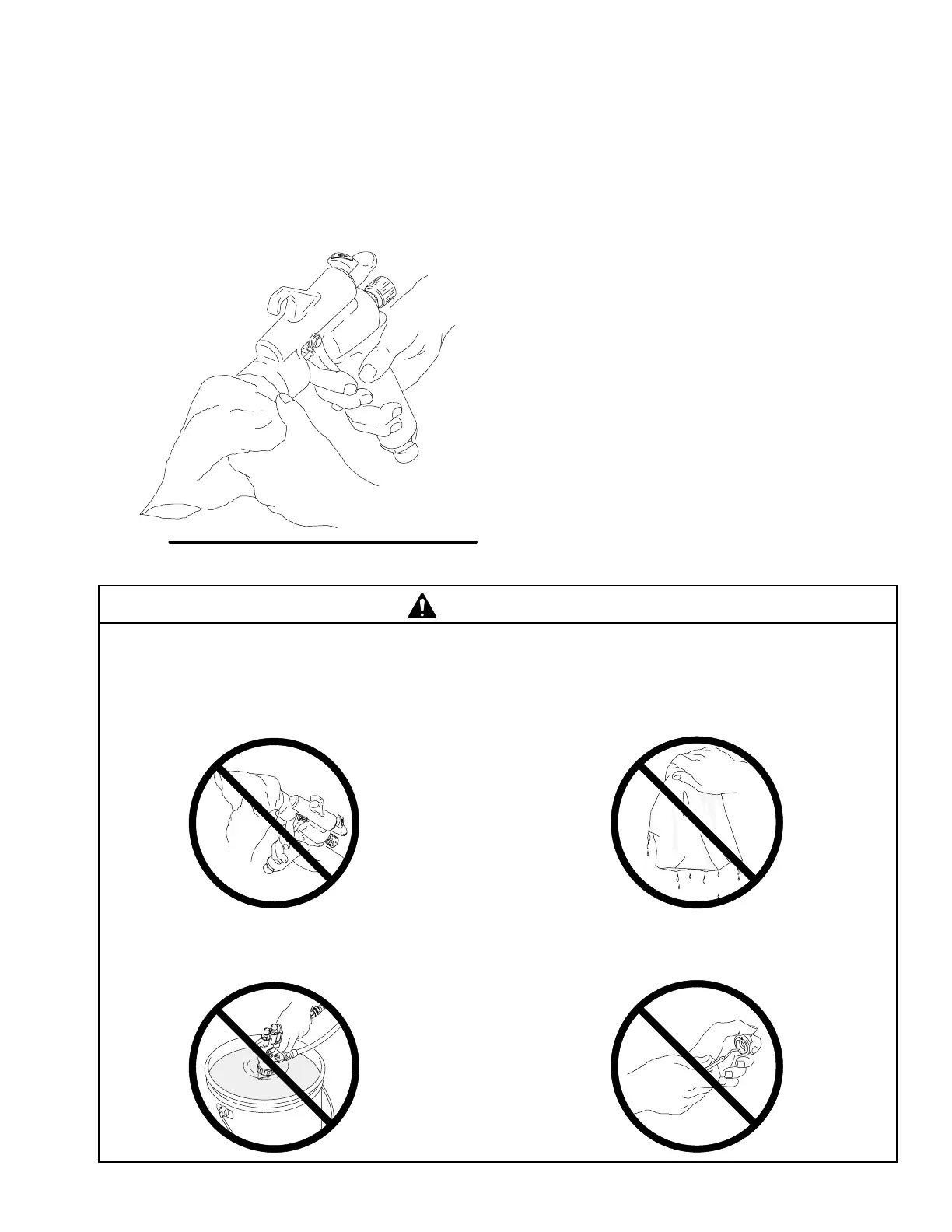

8. Trigger gun while hand tightening the fluid nozzle
(14a).
9. Install air cap (15) and retaining ring (13).
10. Dampen a soft cloth with solvent. Wring out the
excess. Point the gun down and wipe off the
outside of the gun.
Fig. 21
TI0818
11. Lubricate gun after cleaning it as instructed on
page 17.
CAUTION
Solvent left in gun air passages could result in a poor quality paint finish. Do not use any cleaning method which
may allow solvent into the gun air passages.
02055
02027
Do not immerse the gun in solvent.
Do not wipe the gun with a cloth soaked in
solvent; ring out the excess.
Do not point the gun up while cleaning it.
Do not use metal tools to clean the air cap
holes as this may scratch them; scratches can
distort the spray pattern.
07041A
TI0818
