Graco LineLazer IV 200HS - Sensor and Component Service; Distance Sensor Replacement

Trigger Sensor Adjustment
16 312226P
Trigger Sensor Adjustment
Refer to Troubleshooting for trigger sensor adjust-
ment, and see Operation Manual 312190.
Distance Sensor Replacement
1. Remove wheel (120) from LineLazer.
2. Remove screw (273), wire clamp (115), spacer
(272) and distance sensor (66).
3. Install new distance sensor (66) and spacer (272)
with wire clamp (115) and screw (273).
4. Install wheel (120) on LineLazer.

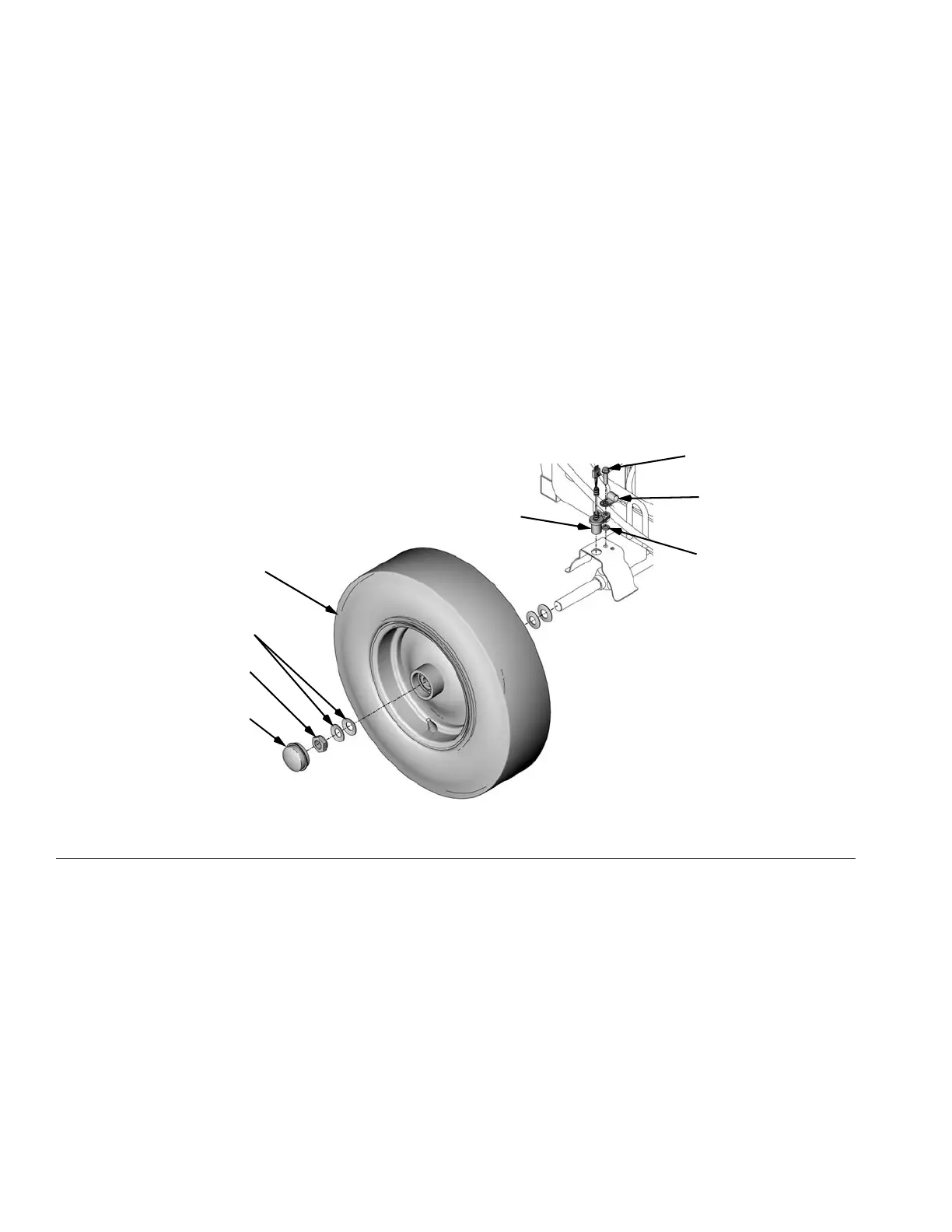

F
IG. 3
TI10237a
142
127
120
66
273
115
272
130
