Graco LineLazer IV 200HS - Engine Service; Engine Removal and Installation

Engine
20 312226P
Engine
Removal
1. Relieve pressure, page 7.
2. Remove throttle cable from engine.
3. Do Fan Belt, Removal; page 19.
4. Loosen hand nut (241). Swing bracket (30) out.
5. F
IG. 6. Disconnect red, yellow and white/red leads
from engine.
6. Remove engine and rocker plate (87c) from
sprayer.
7. Remove four screws (189), washers (114), washers
(170) and nuts (118) and remove rocker plate,
dampeners (59) and washers (114) from engine.
Installation
1. Install rocker plate (87c), dampeners (59) and
washers (170), washers (114) on engine (185) with
four screws (189), washers (170) and nuts (118);
torque to 20 ft-lb (27.1 N•m).
2. Install engine and rocker plate (87c) on sprayer.
3. Connect white/red, yellow and red leads.
4. Do Fan Belt, Installation; page 19.
5. Swing motor retainer bracket (30) in. Tighten hand
nut (241).
All service to the engine must be performed by an
authorized HONDA dealer.

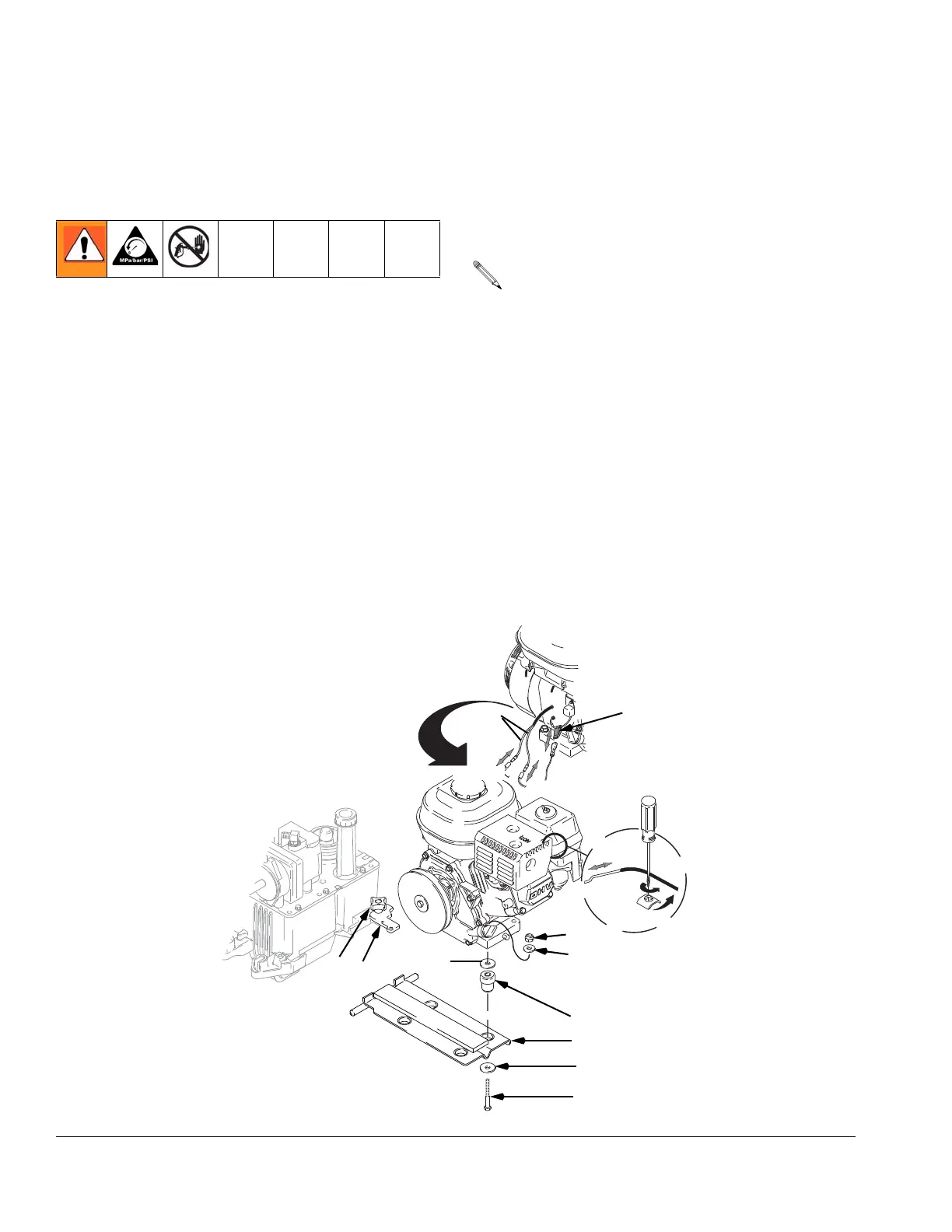

F
IG. 6
TI6520b
RED
WHITE/RED
GREY
YELLOW
118
114
30
241
170
59
87c
114
189
151
