Setup
313034A 11

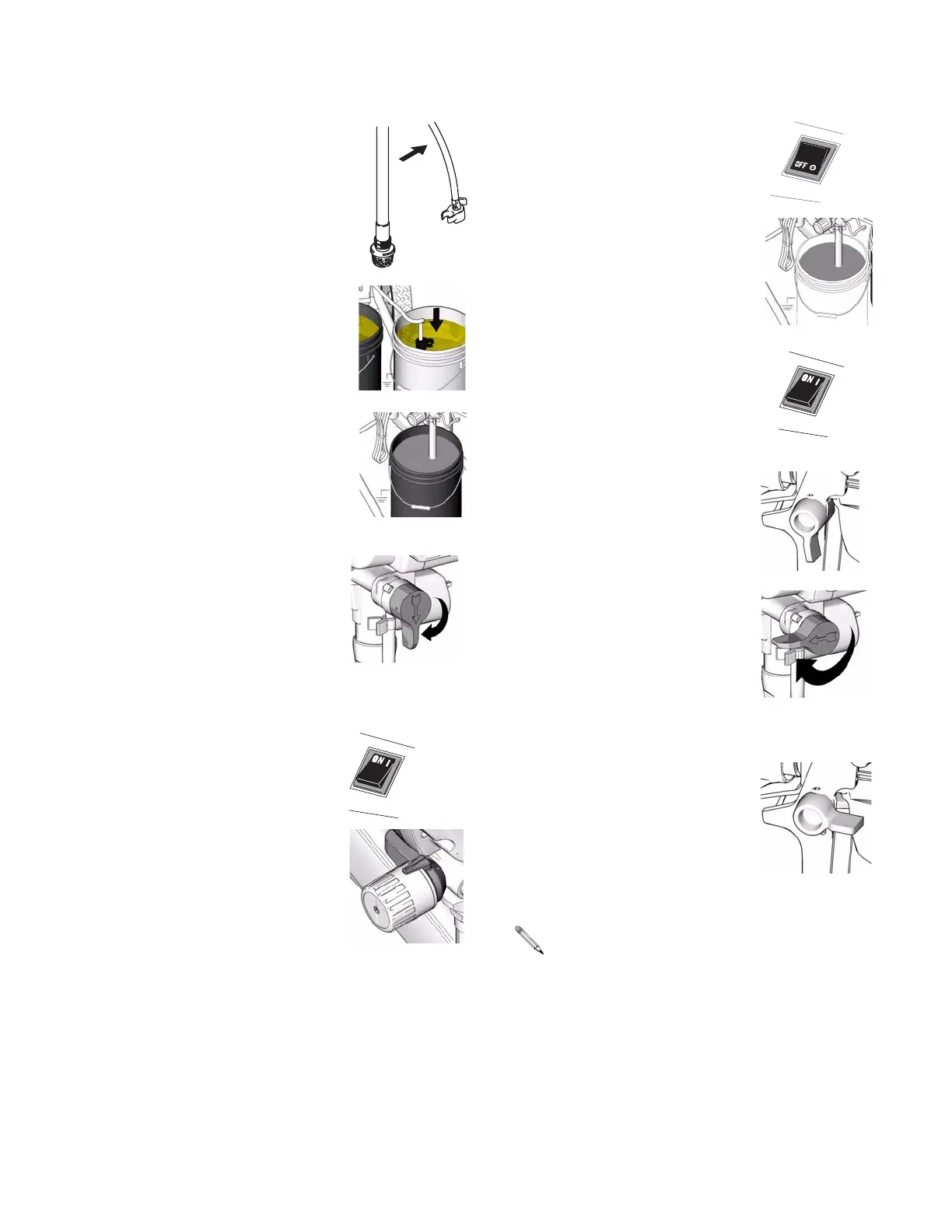

2. Separate prime tube (smaller)
from suction tube (larger).
3. Place prime tube in waste
pail.
4. Submerge suction tube in
water or flushing solvent.
5. Turn Prime/Spray Valve to
PRIME.
6. Plug sprayer in a grounded outlet.
7. Turn power switch ON.
8. Align setting indicator with
Prime/Clean setting on
Pressure Control knob until
pump starts, page 9.
9. When sprayer starts pumping, flushing solvent
and air bubbles will be purged from system.
Allow fluid to flow out of prime tube, into waste
pail, for 30 to 60 seconds.
10. Turn power switch OFF.
11. Transfer suction tube to
paint pail and submerge
suction tube in paint.
12. Turn power switch ON.
13. When you see paint coming
out of prime tube:
a. Point gun into waste pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Turn Prime/Spray valve
to SPRAY.
14. Continue to trigger gun into
waste pail until you see only
paint coming out of gun.
15. Release trigger. Engage
trigger lock.
16. Transfer prime tube to paint
pail and clip prime tube to
suction tube.
ti2039a
ti9652a
ti9651a
ti9346a
ti5580a
ti9718a
• Motor stopping indicates pump and hose
are primed with paint.
• If motor continues to run the sprayer is not
properly primed. To reprime repeat step 8.
ti2810a
ti9653a
ti5580a
ti9345a
ti8909a
ti8908a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
