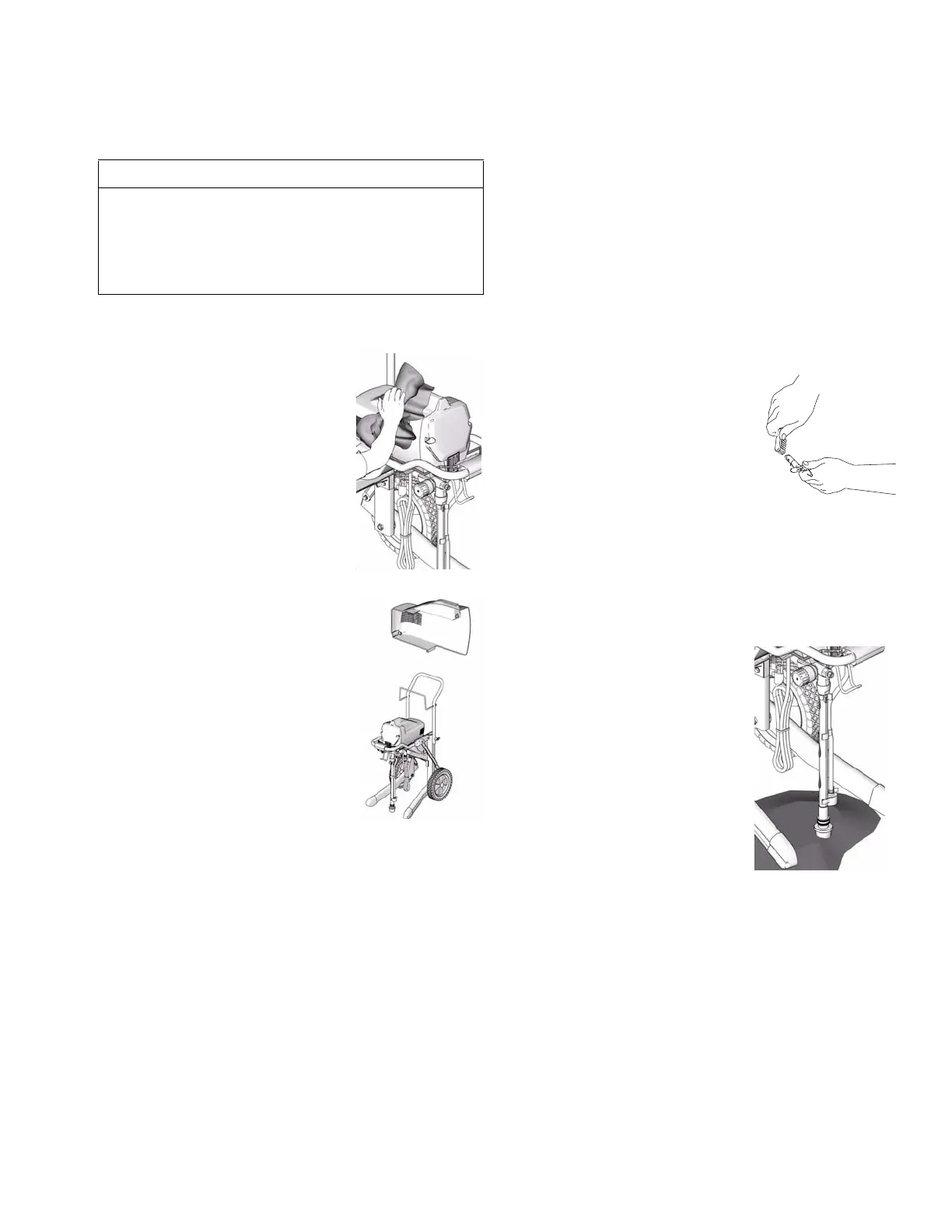

Maintenance and Service
313034A 25
Maintenance and Service
Caring for Sprayer
Keep sprayer and all accesso-
ries clean and in good working
order.
To avoid overheating motor,
keep vent holes in shroud clear
for air flow. Do not cover sprayer
while spraying.
Paint Hoses
Check hose for damage every time you spray. Do
not attempt to repair hose if hose jacket or fittings
are damaged. Do not use hoses shorter than 25 ft
(7.6 m). Wrench tighten, using two wrenches.
Tips
• Always clean tips with com-
patible solvent and brush
after spraying.
• Tips may require replacement
after 15 gallons (57 liters) or
they may last through 60 gal-
lons (227 liters) depending on
abrasiveness of paint.
• Do not spray with worn tip.
Pump Packings
When pump packings wear,
paint will begin to leak down
outside of pump.
• Replace pump packings at
first sign of leaking or addi-
tional damage could occur.
• Purchase a pump repair kit
and install according to
instructions provided with
kit.
• Consult a Graco/M
AGNUM
authorized service center.
CAUTION
Protect the internal drive parts of this sprayer
from water. Openings in shroud allow cooling of
mechanical parts and electronics inside. If water
gets into these openings, the sprayer could mal-
function or be permanently damaged.
ti9354a
ti9355a
ti2055a
ti9356a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
