Storage
313034A 23

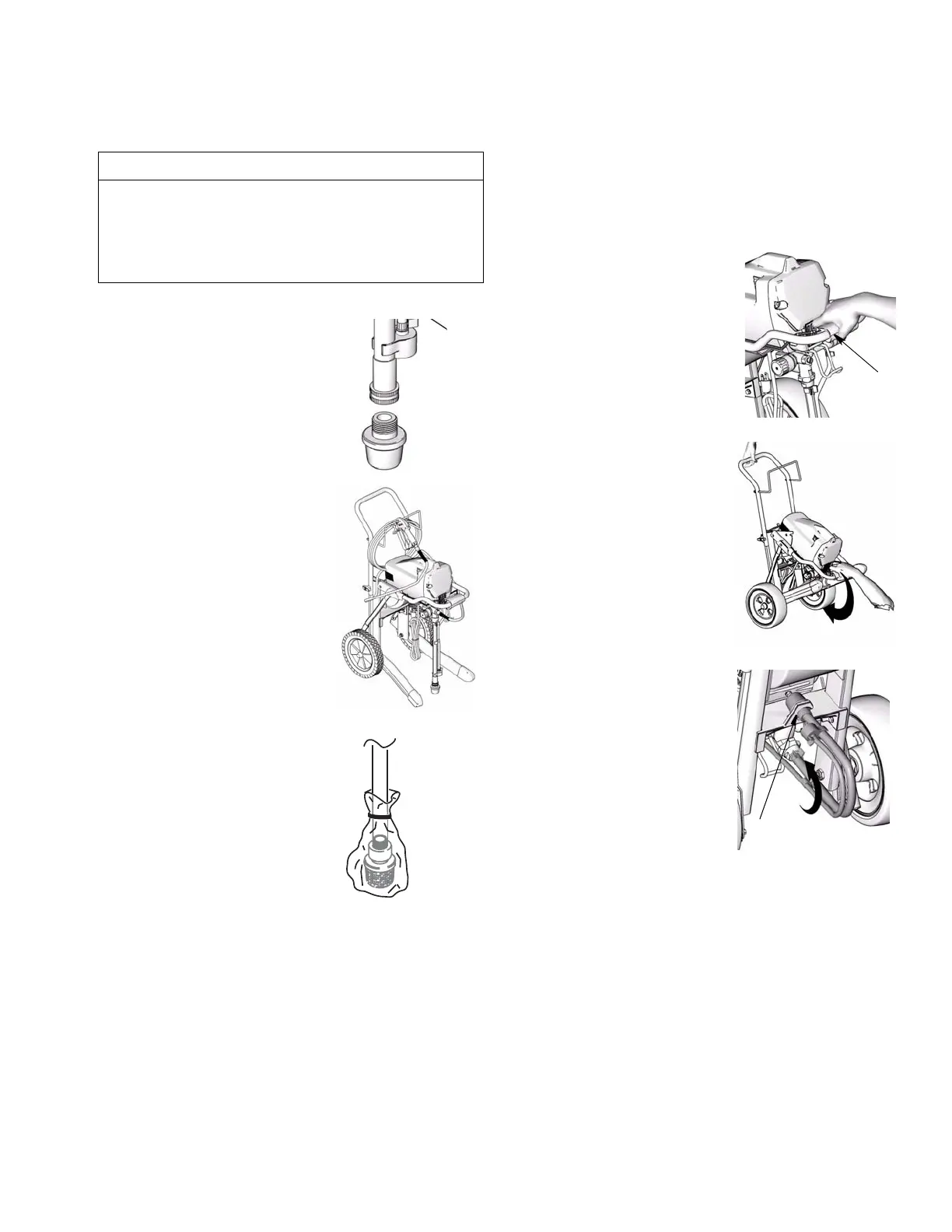

Stowing Sprayer
1. Screw inlet screen onto
suction tube.
2. Coil hose. Leave it
connected to sprayer.
Wrap hose around hose
wrap bracket.
3. Secure a plastic bag around
suction tube to catch any
drips.
4. Store sprayer indoors.
Fold-n-Store
™
Storage
The sprayer cart can be folded for convenient and
compact storage.
Folding the Sprayer (ProLTS Sprayers Only)
1. Grasp cart handle
securely with one hand.
With the other hand, lift
and pull Fold-n-Store han-
dle (a) in front of sprayer
frame, toward you.
2. Push front of sprayer
down, toward floor while
holding cart handle
securely with your other
hand as shown.
3. Slide suction tube
under hook (b) in back
of sprayer cart.
CAUTION
• Before storing sprayer make sure all water is
drained out of sprayer and hoses.
• Do not allow water to freeze in sprayer or hose.
• Do not store sprayer under pressure.
ti9433a
ti9366a
ti5552a
a
ti9425a
ti9432a
b
ti9428a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
