Unclogging Spray Tip
To avoid fluid splashback:
• Never pull gun trigger when arrow-shaped han-
dle is between SPRAY and UNCLOG positions.
• Tip must be pushed all the way into guard.

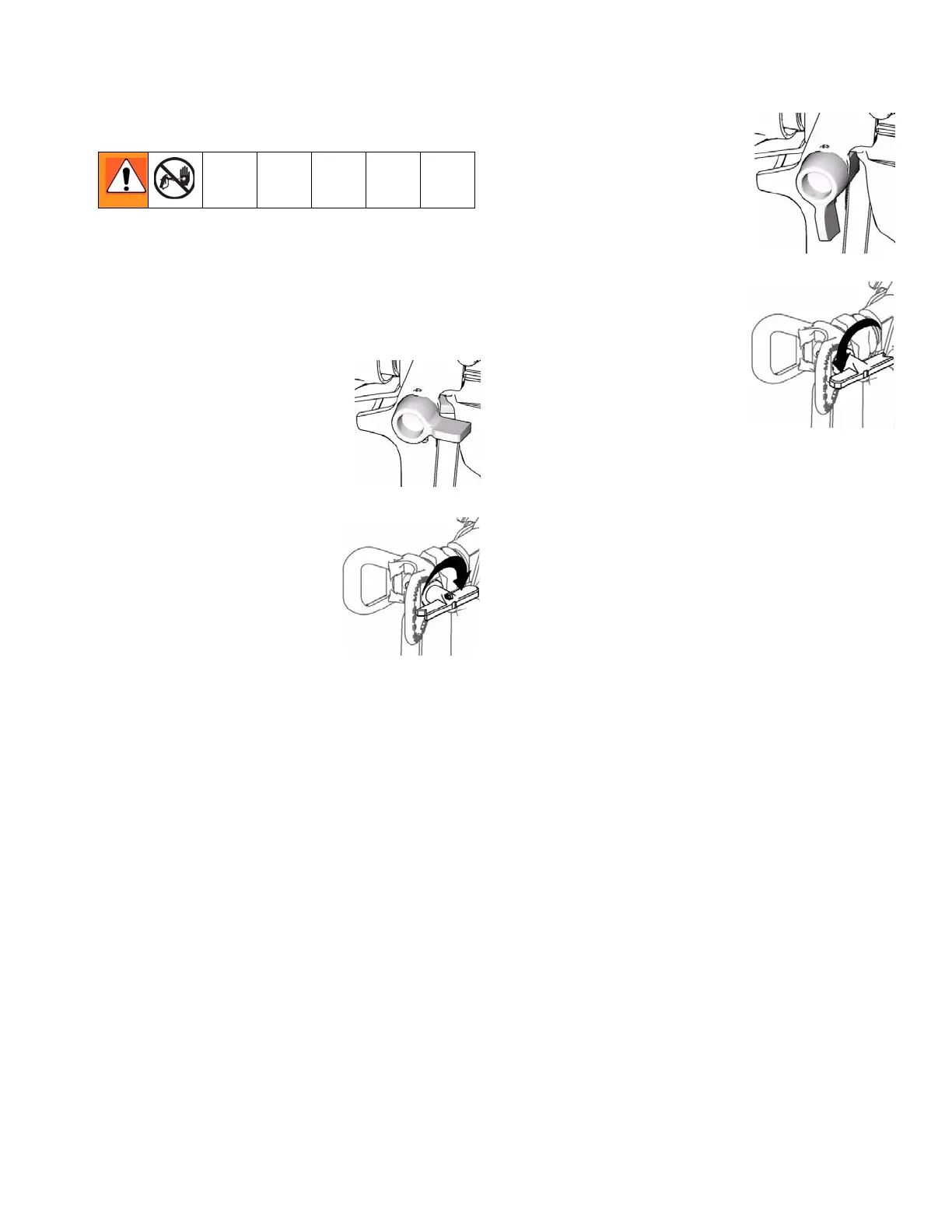

1. To UNCLOG tip obstruction,
engage trigger lock.
2. Point arrow-shaped handle
backward to UNCLOG
position.
3. Aim gun at piece of scrap
or cardboard.
4. Unlock trigger lock. Pull
trigger to clear clog.
5. When obstruction is
cleared, engage trigger
lock and rotate
arrow-shaped handle
back to SPRAY position.
Point the arrow-shaped handle on the spray tip
forward to SPRAY and backward to UNCLOG
obstructions.
ti8908a
ti9048a
ti8909a
ti9049a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
