Graco MAGNUM LTS 17 User Manual

Getting Started With Basic Techniques
16 313034A

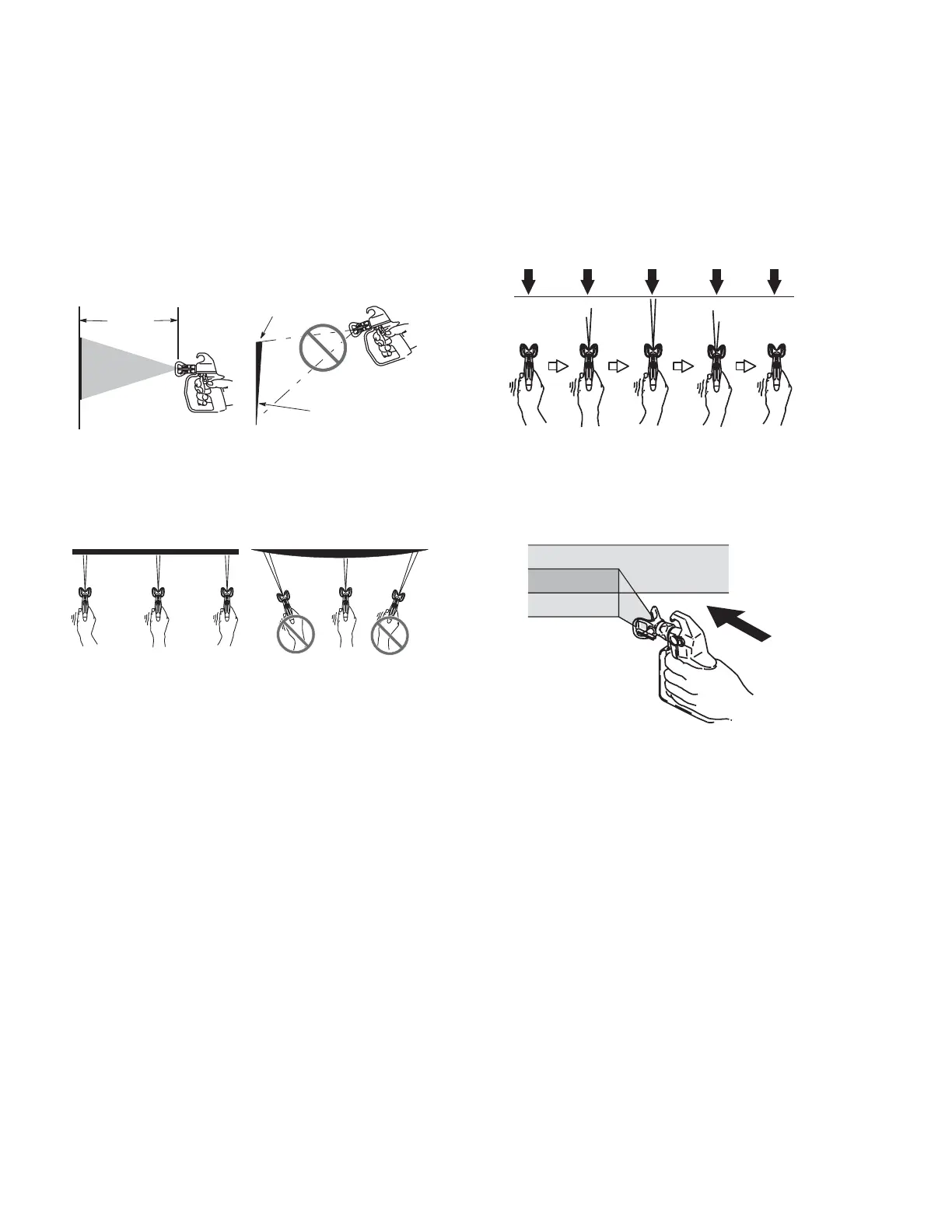

Getting Started With Basic Techniques
Use a piece of scrap cardboard to practice these
basic spraying techniques before you begin spray-
ing the surface.
• Hold gun 12 in. (30 cm) from surface and aim
straight at surface. Tilting gun to direct spray
angle causes an uneven finish.
• Flex wrist to keep gun pointed straight. Fanning
gun to direct spray at angle causes uneven fin-
ish.
Triggering Gun
Pull trigger after starting stroke. Release trigger
before end of stroke. Gun must be moving when
trigger is pulled and released.
Aiming Gun
Aim tip of gun at bottom edge of previous stroke,
overlapping each stroke by half.
12 in.
(30 cm)
even
finish
thick
thin
uneven
finish
ti5585a
even finish thin thick thin
ti2036a
ti2037a
ti2038a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
