Shutdown and Cleaning
313034A 21

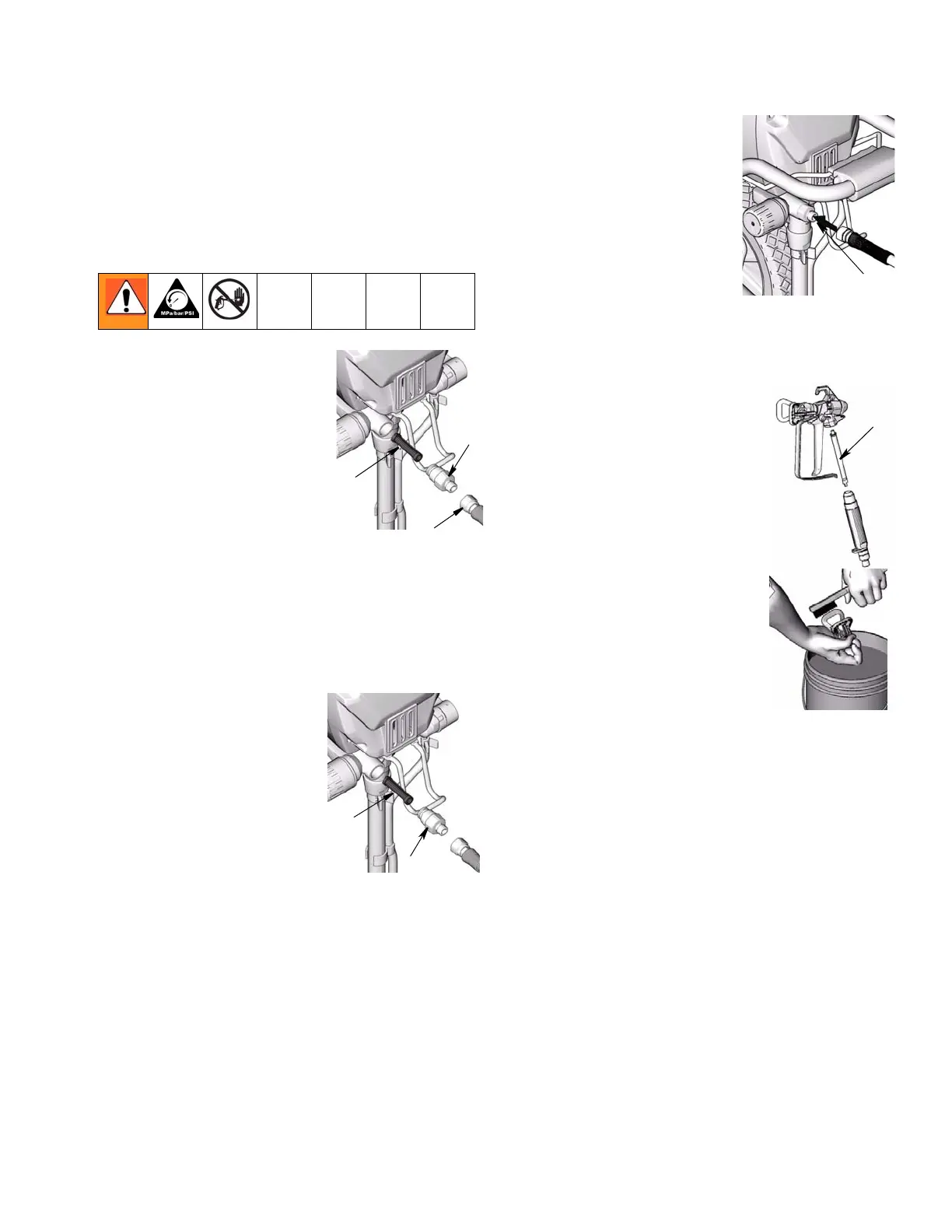

Cleaning InstaClean
™
Fluid
Filter (ProLTS Sprayers Only)
The InstaClean Fluid Filter prevents particles from
entering paint hose. After each use, remove and
clean it to insure peak performance.
1. Relieve pressure, page 9.
2.
a. Disconnect airless
spray hose (a) from
sprayer
b. Unscrew outlet fitting
(b).
c. Remove InstaClean
Fluid Filter (c).
3. Check InstaClean Fluid Filter (c) for debris. If
needed, clean filter with water and a soft brush.
a. Install open end of
InstaClean Fluid Fil-
ter (c) in sprayer.
b. Screw outlet fitting
(b) into sprayer.
4. Tighten outlet fitting and
reconnect hose (a) to
sprayer. Use two
wrenches to tighten
securely.
Cleaning Gun
• Clean gun fluid filter (d) with
water or flushing solvent and
a brush every time you flush
the system. Replace gun filter
if damaged.
• Remove tip and guard and
clean with water or flushing
solvent. A soft brush can be
used to loosen and remove
dried on material if needed.
• Wipe paint off outside of gun
using a soft cloth moistened
with water or flushing solvent.
a
b
c
ti9347a
c
b
ti9347a
a
ti9674a
ti11988a
d
ti9671a

Graco MAGNUM LTS 17 Specifications

General

Type	Airless Paint Sprayer
Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Weight	20 lbs
Power Source	Electric
Motor Power	5/8 HP
Spray Tip Size	0.017 inches
