Component Identification and Definition
12 312775J
Component Identification and Definition

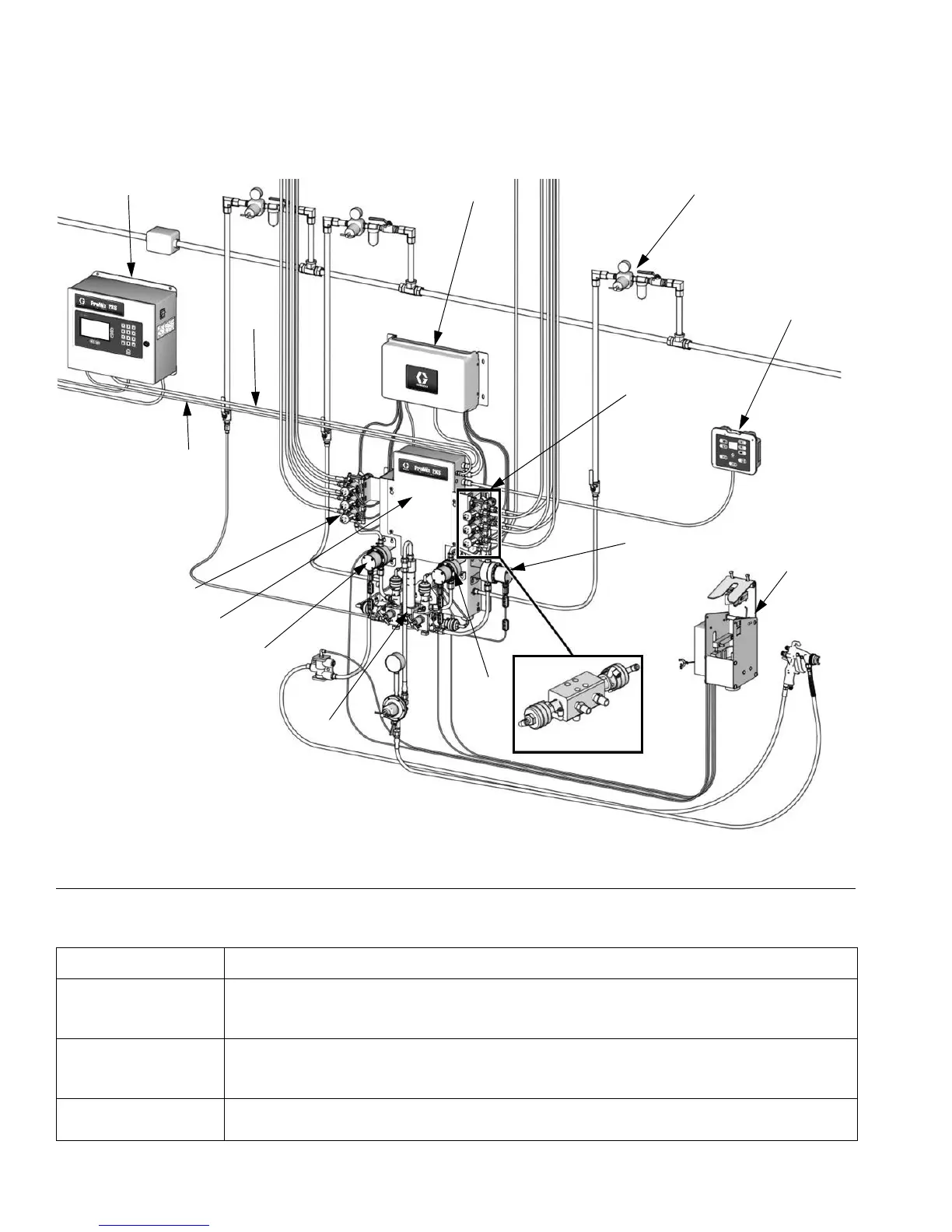

FIG. 2. Manual System, shown with G3000 Meters, Color/Catalyst Change, One Gun Flush Box, and
Accessory Solvent Flow Meter
TI29655a
EK
BC*
ST
ACV
CCM*
MS
MA
MB
FM
GFB
BCV
FO*
PS*
Air Controls/
Filter
* See the ProMix 2KS
Repair-Parts manual for
optional cable lengths.
BCV - acid models
Table 1: Component Descriptions
Component Description
EasyKey (EK)
Used to set up, display, operate, and monitor the system. The EasyKey accepts 85-250 VAC,
50/60 Hz line power and converts that power to acceptable low voltage and optical signals
used by other system components.
Booth Control (BC)
Used by the operator for daily painting functions including: choosing recipes, initiating job com-
plete, reading/clearing alarms, and placing the system in Standby, Mix, or Purge mode. It is
typically mounted inside the booth or near the painter.
Fluid Station (ST)
Includes air control solenoids, flow switches, and mountings for the fluid flow meters and the
fluid manifold assembly. Its control board manages all proportioning functions.
