Dimensions and Mounting Hole Layouts
34 312775J
Dimensions and Mounting Hole Layouts
Module
A
Overall
Width
in. (mm)
Overall
Depth
in. (mm)
B
Overall
Height
in. (mm)
Mounting Dimensions,
Width (C) x Height (D)
in. (mm)
E
Mounting
Hole Size
in. (mm)
Weight
lb (kg)
EasyKey 14.0
(355.6)
6.6 (167.6) 13.5
(342.9)
12.0 x 12.75 (304.8 x 323.9) 0.3 (7.6) 22.2 (10.1)
Booth Control 7.2 (182.9) 3.0 (76.2) 6.0 (152.4) none; see mounting bracket
below
none 2 (0.91)
Booth Control
Mounting Bracket
3.75 (95.3) 2.0 (50.8) 6.0 (152.4) 2.5 x 3.0 (63.5 x 76.2) 0.281
(7.14)
2 (0.91)
Wall Panel 17.5
(444.5)
11.0
(279.4)
27.0
(685.8)
16.5 x 16.25 (419.1 x 412.8) 0.5 (12.7) 50 (22.7)
Gun Flush Box See Gun Flush Box manual 312784.
Color Change
Control Module
See Color Change Module manual 312787.

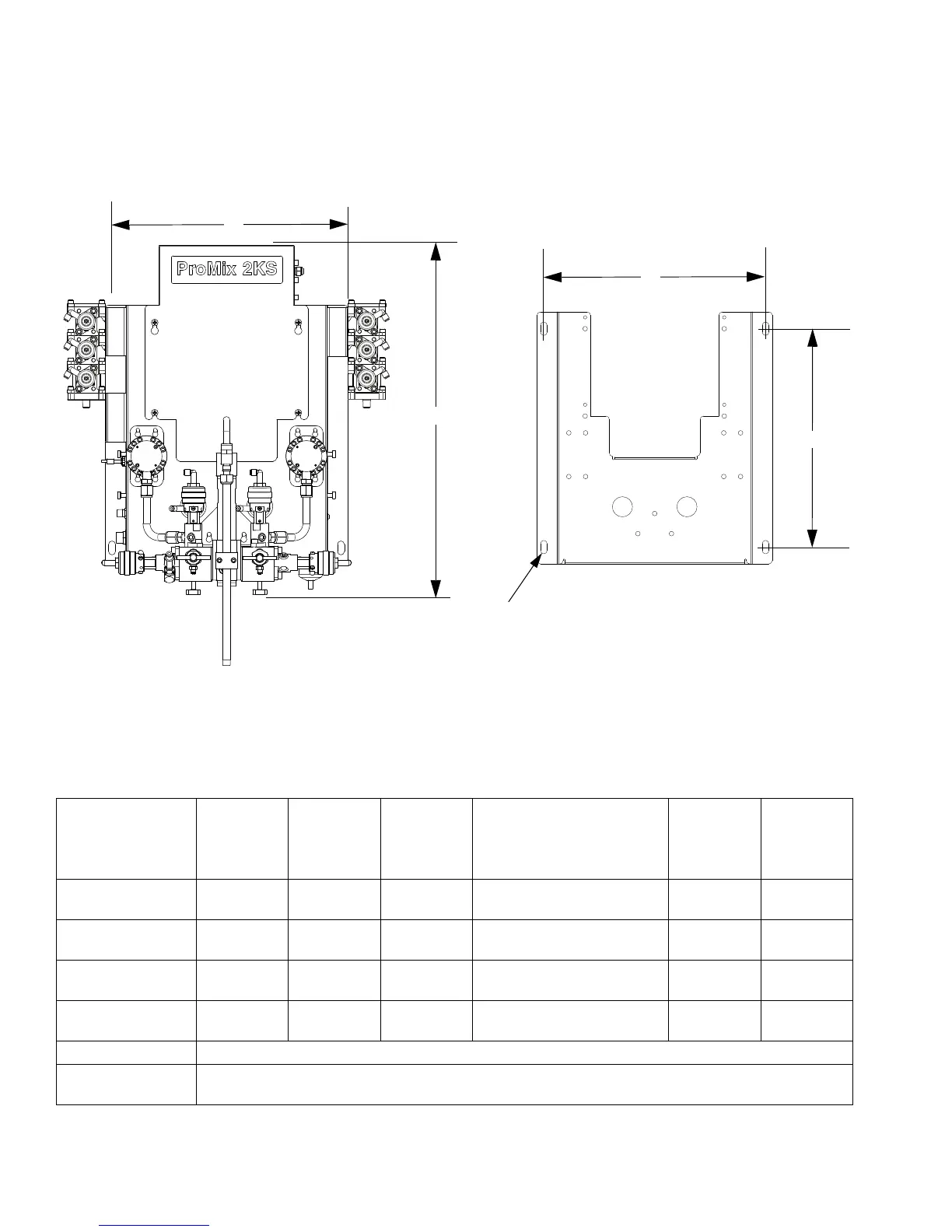

Wall Mount Fluid Station
TI14134a
TI11894b
Mounting plate only shown, for clarity
NOTE: Height is shown from top of panel to fluid shutoff
valves, and does not include the effect of variable fluid
integrator heights. Width of panel does not include
optional color/catalyst valve stacks.
A
D
C
B
E
