Graco ProMix 2KS Installation

Electrical
30 312775J

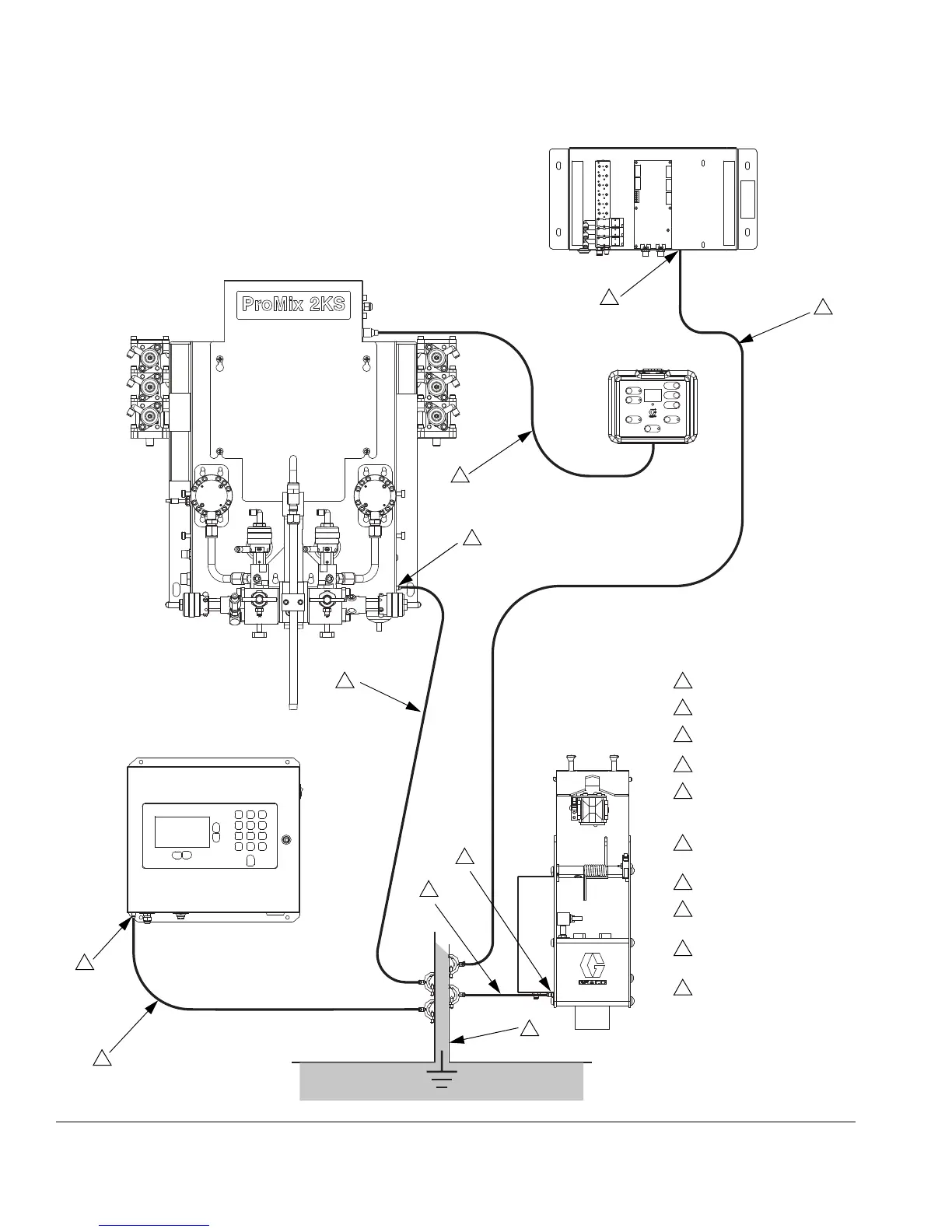

FIG. 18: Grounding
Key:
EasyKey ground screw
EasyKey ground wire
Fluid Station ground screw
Fluid Station ground wire
True Earth Ground - check
your local code for
requirements
Gun Flush Box ground wire
connection point
Gun Flush Box ground wire
Power Cable, Booth
Control/Fluid Station
Color Control Module
ground screw
Color Control Module
ground wire (Part No.
223547).
1
2
3
4
5
6
7
8
9
10
Gun Flush Box
Booth Control
Wall Mount Fluid Station
EasyKey
1
2
3
4
5
6
7
8
10
Color Change Module
TI12807a
9
