ProMix 2KS Integration Specifics
312779E 57
Purge Mode Process
See F
IG
. 67, Table 5, and Table 6.
F
IG

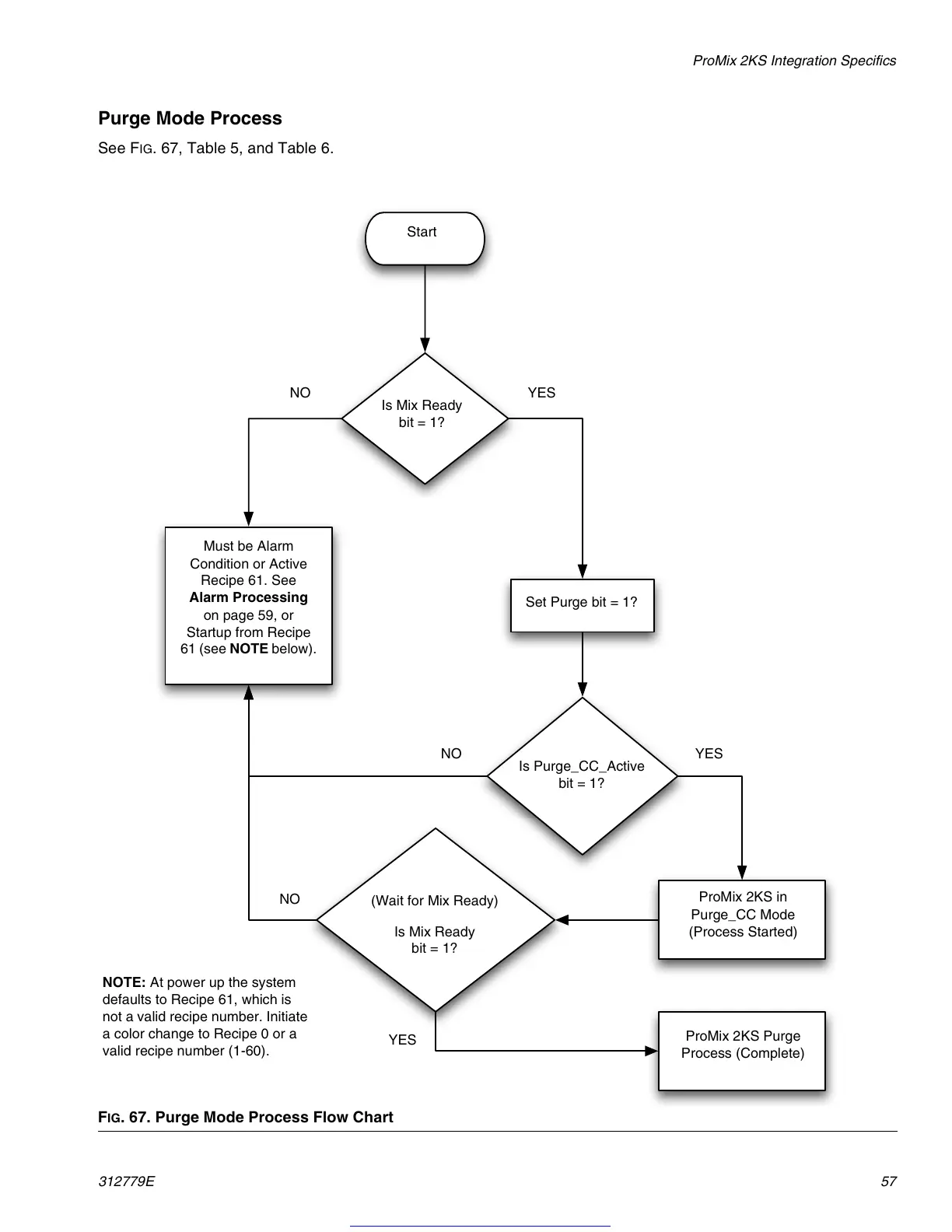

. 67. Purge Mode Process Flow Chart
Start
Is Mix Ready
bit = 1?
Must be Alarm
Condition or Active
Recipe 61. See
Alarm Processing
on page 59, or
Startup from Recipe
61 (see NOTE below).
YESNO
NO
YES
ProMix 2KS in
Purge_CC Mode
(Process Started)
Set Purge bit = 1?
Is Purge_CC_Active
bit = 1?
Is Mix Ready
bit = 1?
NO
YES
(Wait for Mix Ready)
ProMix 2KS Purge
Process (Complete)
NOTE: At power up the system
defaults to Recipe 61, which is
not a valid recipe number. Initiate
a color change to Recipe 0 or a
valid recipe number (1-60).
