Tank Specifications and TLM Offset
3A9522A 19
Tank Specifications and TLM Offset
Vertical Tank:
• Maximum Volume = 999,999 gal-
lons or liters.
• Tank walls must be uniformly verti-
cal from empty level to full (F
IG. 14
and FIG. 15).

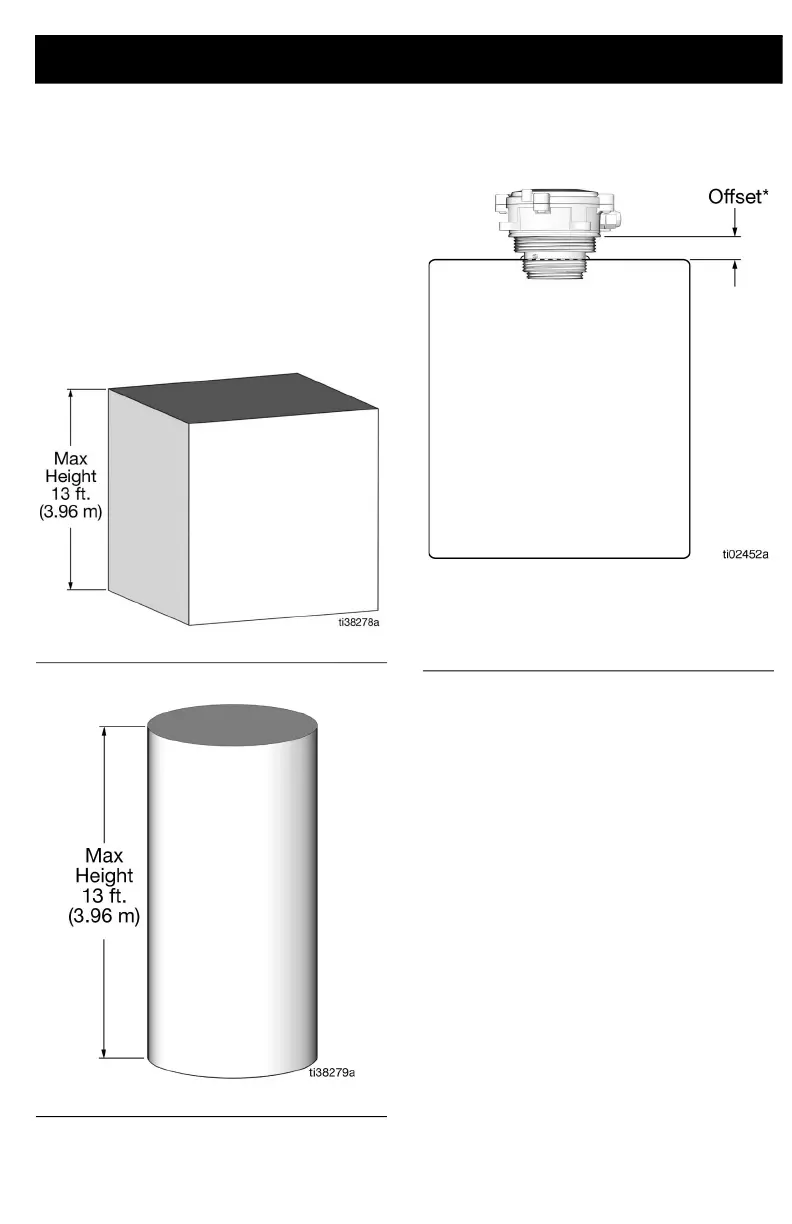

FIG. 14
FIG. 15
FIG. 16
NOTE: *TLM offset is the distance from the
maximum height to the shoulder above the
threads on TLM.
