Graco Reactor A-25 Operation

Setup
18 309812D

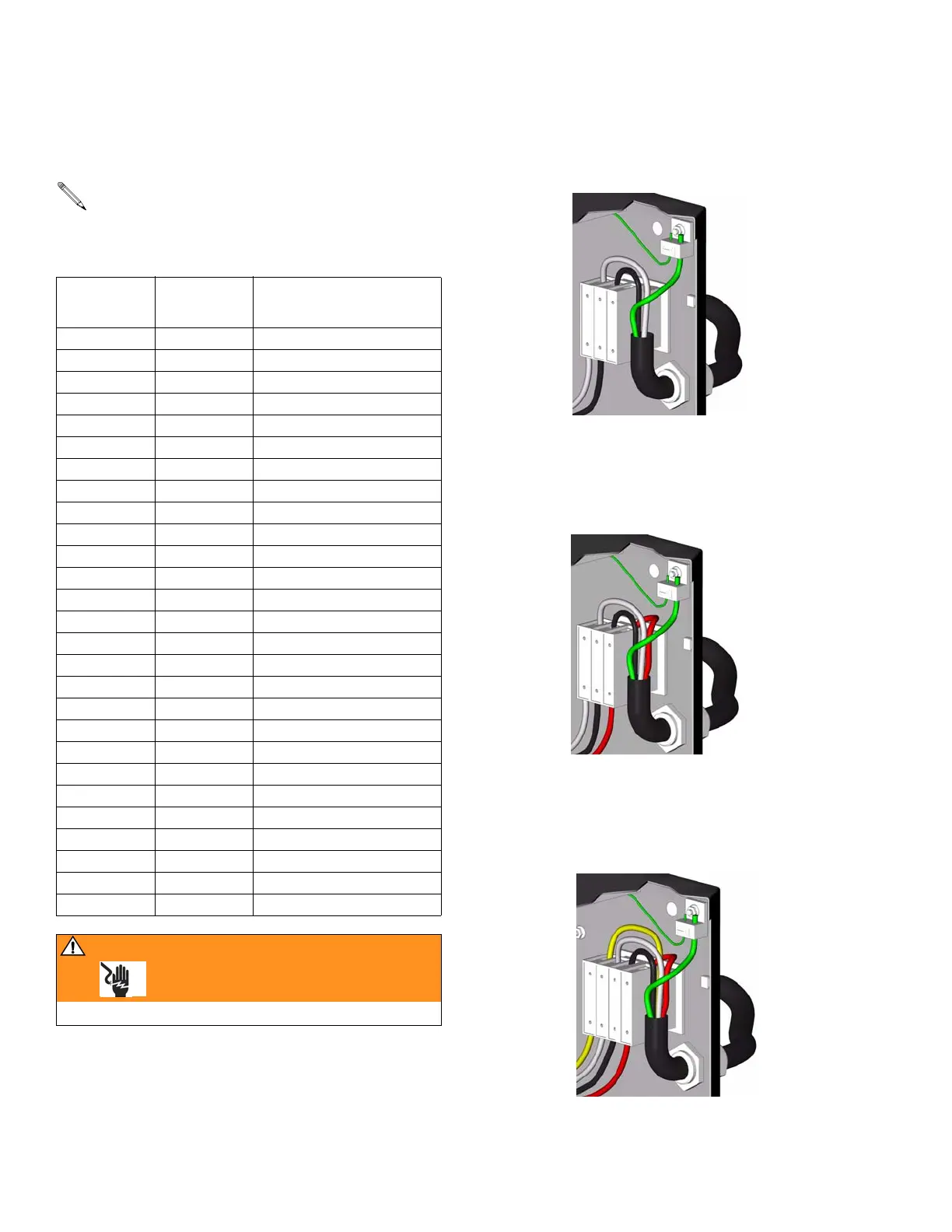

3. Connect electrical cord
Power cord is not supplied. See TABLE 2. Use 5/32
or 4 mm hex allen wrench to make connections.
Table 2: Power Cord Requirements
Part No. Model
Cord Specification
AWG (mm
2
)
246037 A-25 6 (13.3), 2 wire + ground
246750 A-25 8 (8.4), 3 wire + ground
246751 A-25 10 (5.3), 4 wire + ground
246038 A-50 4 (21.2), 2 wire + ground
246754 A-50 8 (8.4), 3 wire + ground
246755 A-50 8 (8.4), 4 wire + ground
246639 A-XP2 6 (13.3), 2 wire + ground
246752 A-XP2 8 (8.4), 3 wire + ground
246753 A-XP2 10 (5.3), 4 wire + ground
248635 A-XP2 2:1 6 (13.3), 2 wire + ground
248636 A-XP2 2:1 8 (8.4), 3 wire + ground
248637 A-XP2 2:1 10 (5.3), 4 wire + ground
246039 H-50 4 (21.2), 2 wire + ground
246756 H-50 8 (8.4), 3 wire + ground
246757 H-50 8 (8.4), 4 wire + ground
246040 H-XP3 4 (21.2), 2 wire + ground
246758 H-XP3 8 (8.4), 3 wire + ground
246759 H-XP3 8 (8.4), 4 wire + ground
246365 HT-6.0 8 (8.4), 2 wire + ground
246760 HT-6.0 10 (5.3), 3 wire + ground
246761 HT-6.0 12 (3.3), 4 wire + ground
246607 HT-10.2 6 (13.3), 2 wire + ground
246762 HT-10.2 8 (8.4), 3 wire + ground
246763 HT-10.2 10 (5.3), 4 wire + ground
246364 HT-15.3 4 (21.2), 2 wire + ground
246764 HT-15.3 8 (8.4), 3 wire + ground
246765 HT-15.3 8 (8.4), 4 wire + ground
WARNING
Read warnings, page 8.
a. 230V, 1 phase: Connect power leads to
L1 and L2, and green to ground (GND).
b. 230V, 3 phase: Connect power leads to
L1, L2, and L3. Connect green to
ground (GND).
c. 380V, 3 phase: Connect power leads to
L1, L2, and L3. Connect neutral to N.
Connect green to ground (GND).
L1
L2
GND
TI2515c
L1
L2
GND
TI3248b
L3
L1
L2
GND
TI2725b
L3
N
