Graco Reactor A-25 Operation

Setup
309812D 19
4. Connect power source
to motor
a. Air powered models:
See F
IG. 1. Connect air supply line (U)
to air regulator kit inlet. See Technical
Data on page 40 for inlet sizes, recom-
mended hose sizes, and air consump-
tion requirements.
b. Hydraulic powered models:
Hydraulic shutoff valve (HS, FIG. 3 on
page 12) may be disconnected for ship-
ping. Connect valve to hydraulic inlet fit-
ting before connecting hydraulic supply
line.
See F
IG. 2. Connect hydraulic supply
line (S) to shutoff valve (HS). Connect
return line (T) to return fitting. See
Technical Data on page 40 for fitting
sizes, recommended hose sizes, and
hydraulic flow and consumption require-
ments.
Typical hydraulic power supply will have:
• pressure compensated piston pump
• adjustable pressure range from
300-1200 psi (2.1-8.4 MPa, 21-84
bar)
• suction strainer
• return line filter
• air bleed valve
• pressure gauge
• case drain cooler
• appropriate motor starter.
5. Connect feed pumps
a. Install feed pumps (K) in component A
and B supply drums. See F
IG. 1 and
F
IG. 2, pages 10 and 11.
b. Seal component A drum and use desic-
cant dryer (M) in vent.
c. Install agitator (L) in component B drum,
if necessary.
d. Inlet valve/strainer assemblies may be
disconnected for shipping. Connect to
pump fluid inlets, then connect supply
hoses (J) from feed pumps to Reactor
fluid inlet valves (VA, VB).
Supply hoses from feed pumps should be 3/4 in.
(19 mm) ID minimum.
Model HT heat packages only: connect propor-
tioner hoses to 1/2 npt(f) connections on heater
inlet blocks.

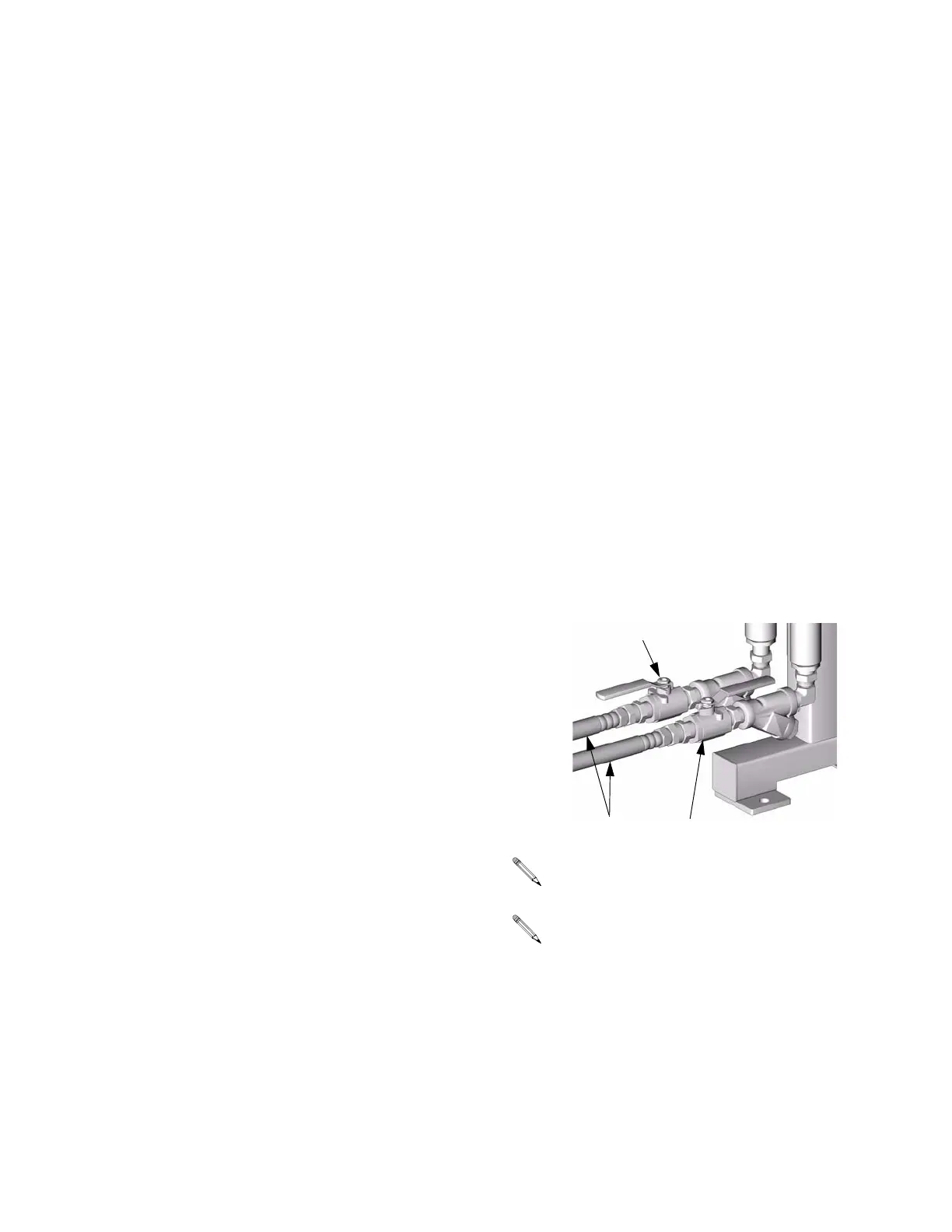

TI3590b
VA
J
VB
