Setup
20 309812D

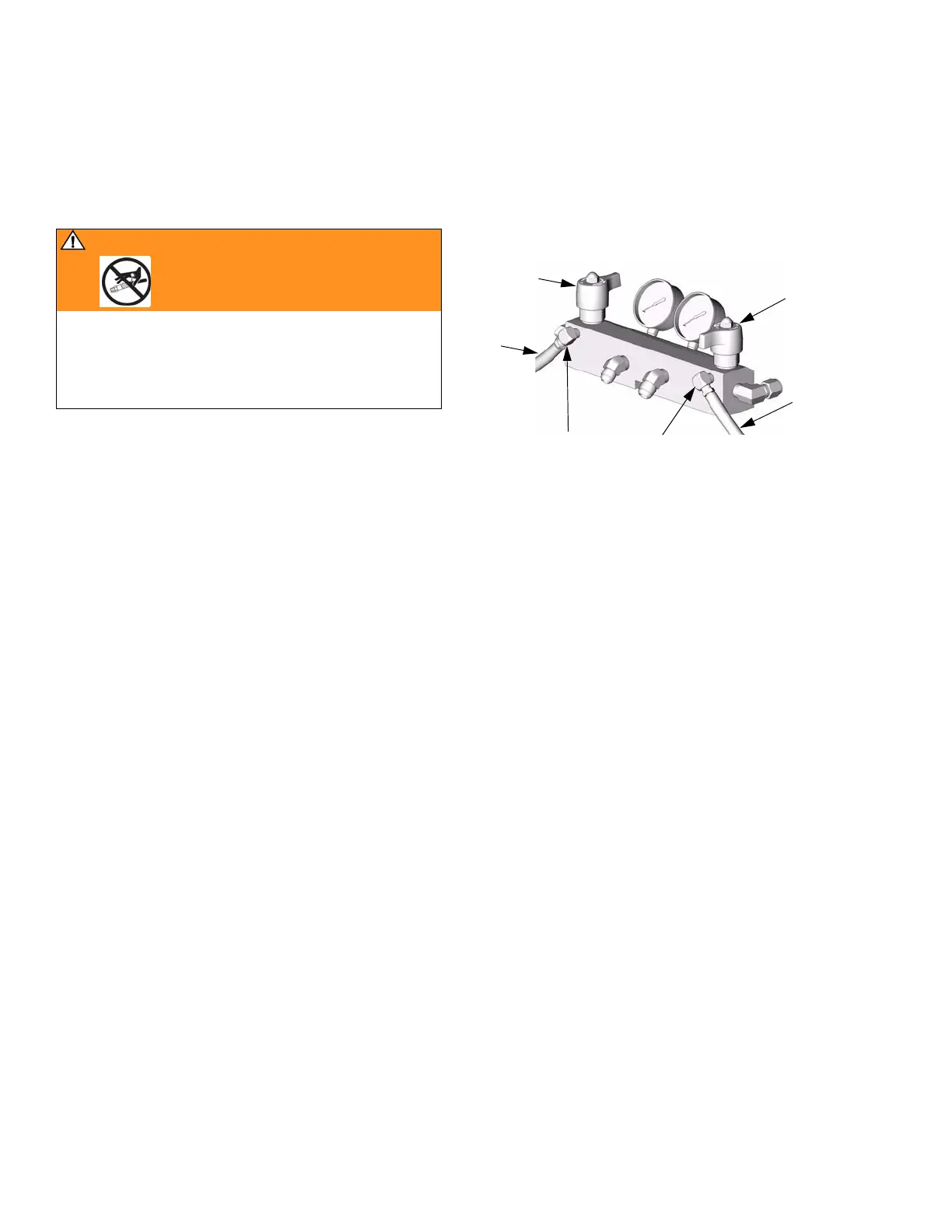

6. Connect pressure relief
lines
WARNING
Do not install shutoffs downstream of the PRESSURE
RELIEF/SPRAY valve outlets (BA, BB). The valves
function as overpressure relief valves when set to
SPRAY. Lines must be open so valves can automati-
cally relieve pressure when Reactor is operating.
a. Recommended: Connect air purge
hose (R) to relief fittings (BA, BB) of
both PRESSURE RELIEF/SPRAY
valves. Route hose back to component
A and B drums. Also see F
IG. 1, page
10.
b. Alternately: Secure supplied bleed
tubes (N) in grounded, sealed waste
containers (H). See F
IG. 2, page 11.
TI3589a
BA BB
SA
SB
R
R
To Next Page
