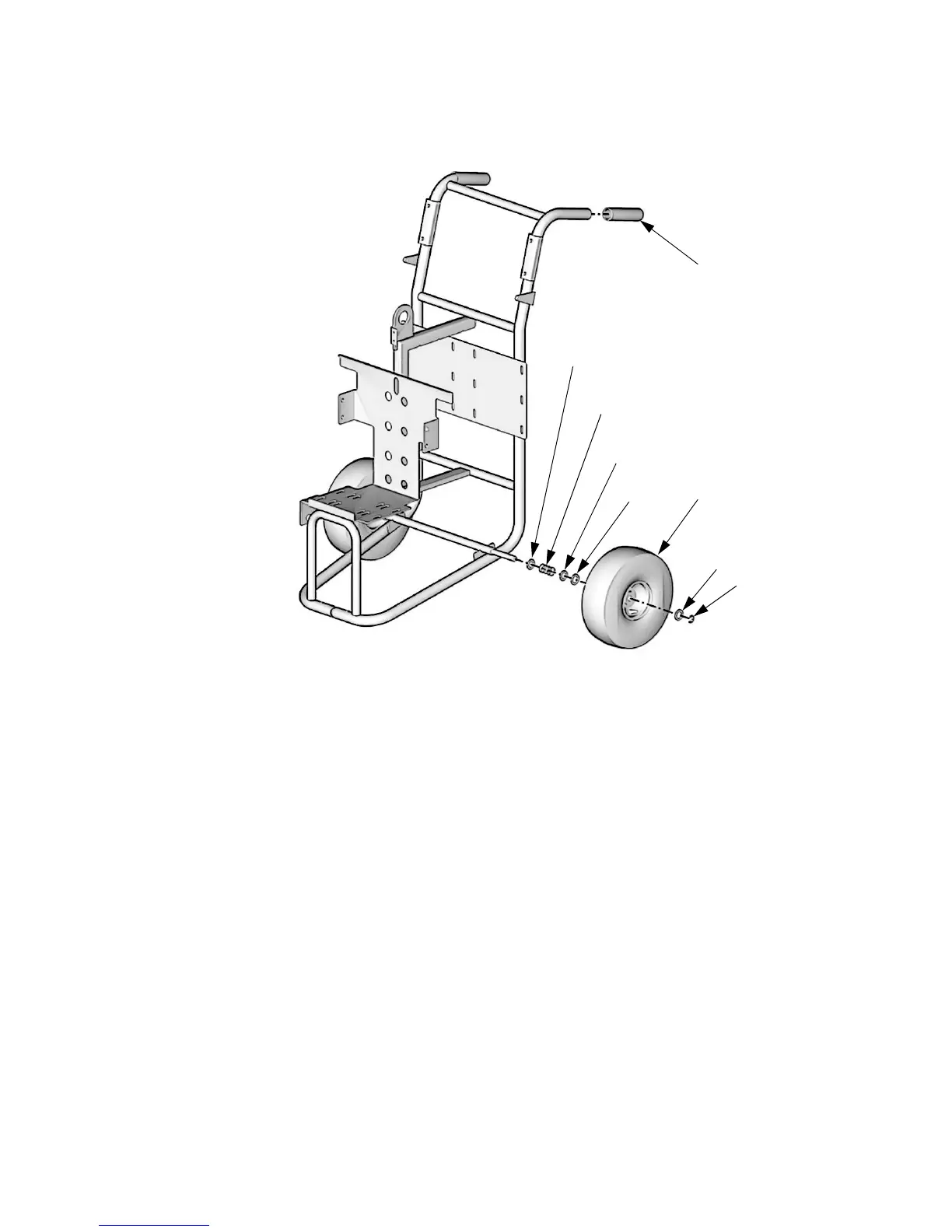

Parts
311075R
67
P
ar
t No. 249582, Car
t
Ref. P
art
Description
Qty
602
154636
W
ASHER, flat
4
603
116411
SPRING
2
604
116477
W
ASHER, flat; nylon
4
605
116478
WHEEL, pneumatic
2
606
101242
RING, retaining
2
607
GRIP
, handle
2
607
602
603
602
604
60
5
604
606
TI6976a
66
68
Table of Contents
Table of Contents
2
Related Manuals
3
Systems
3
Models
4
Warnings
5
Overview
8
Isocyanate Hazard
9
Foam Self-Ignition
9
Moisture Sensitivity of Isocyanates
9
Keep Components a and B Separate
10
Changing Materials
10
Component Identification
11
Controls and Indicators
13
Motor/Pump Control Function Knob
13
STATUS Indicator
13
Motor Power Switch/Circuit Breaker
14
Heater Power Switch/Circuit Breaker
14
Heater Temperature Controls
14
Fluid Temperature Sensors and Displays
14
Setup
15
Startup of Heated Units
22
Heatup Guidelines
23
Heat Management Tips
23
Agents
24
Spraying/Dispensing
25
Pause (Heated Units)
26
Refilling Tanks
26
Pressure Relief Procedure
27
Shutdown
27
Maintenance
28
Flushing
29
Troubleshooting
31
Status Codes
31
Troubleshooting Chart
34
Repair
39
Before Beginning Repair
39
Removing Supply Tanks
39
Recirc/Spray Valves
40
Displacement Pump
41
Control Module
43
Fluid Heaters (if Supplied)
48
Pressure Transducers
48
Drive Housing
49
Cycle Counter Switch Replacement
50
Electric Motor
51
Motor Brushes
52
Fan
52
Parts
54
Suggested Spare Replacement Parts
68
Accessories
68
Dimensions
69
Technical Data
70
Graco Standard Warranty
72
Graco Information
72
