Graco Series A Instructions-Parts List

8 307273

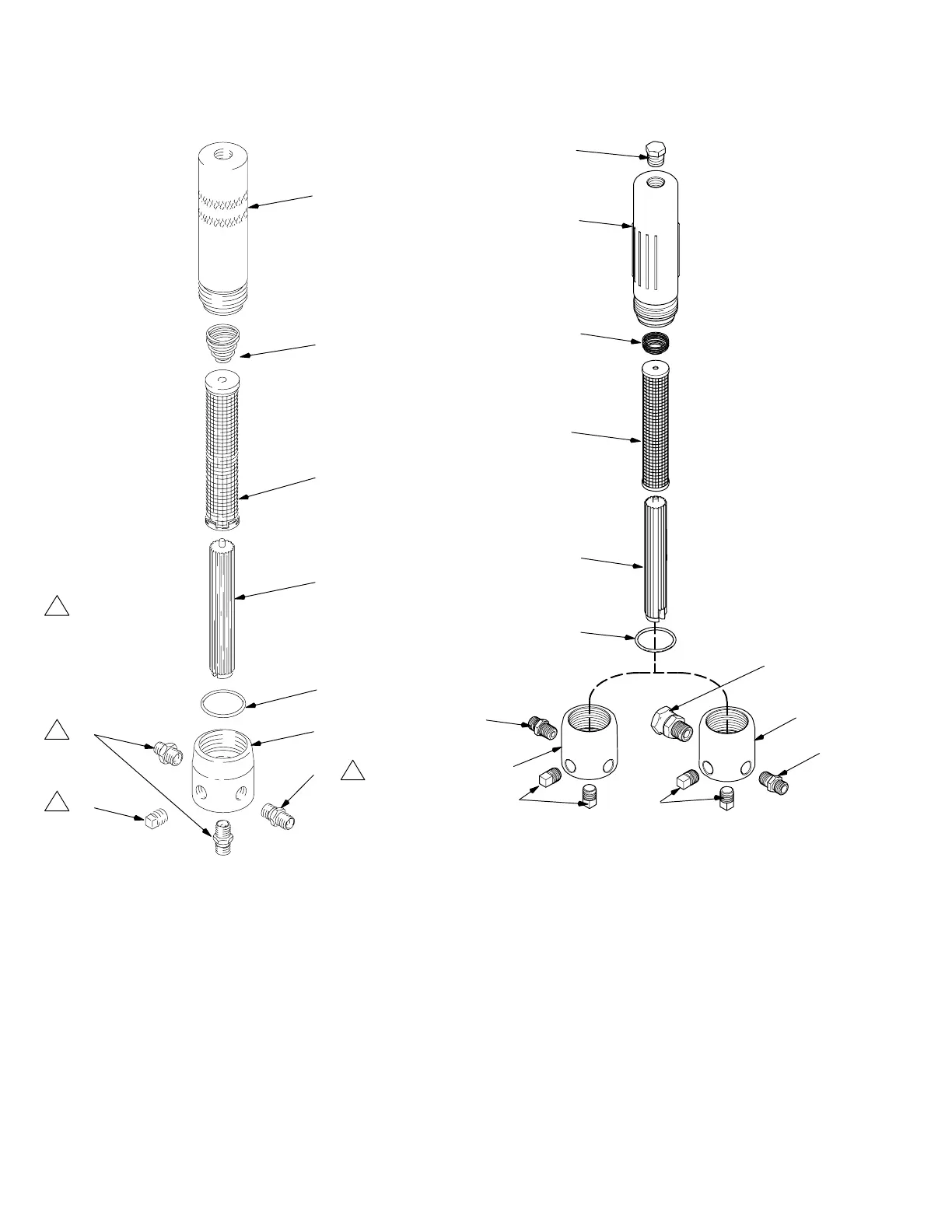

Parts
Model 218029, Series B Model 24V925, Searies A
Model 241317, Series A Model 24T914, Series A
02530B
9
3n
6
5n
8
7
11
4
10
1
1
1
1
Used only on
241317
Model 223160, Series B
Model 24A587, Series B
1
7
8
5n
6
3n
4
2
9
02531b
10
9
2
4
Model 223160 Model 24A587
Ref. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt 2
5n 167025 SCREEN, stainless steel; 60 mesh 1
(Models 218029 and 241317 only)
167024 SCREEN, stainless steel; 30 mesh 1
(Model 24T914 only)
167026 SCREEN, stainless steel; 100 mesh 1
(Model 24V925 only)
6 186075 SUPPORT, filter; polyethylene 1
7 BOWL, filter; carbon steel 1
24C501 Model 218029 (shown) 1
246582 Model 241317 1
179773 Model 24T914 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
11 157350 ADAPTER, 3/8 npt x 1/4 npt 1
Ref. Part No. Description Qty.1
110740 PLUG; 3/8 npt; stainless steel 1
2 111697 PLUG; 1/4 npt; stainless steel 2
3n 104361 O-RING; PTFE 1
4 166846 NIPPLE; 1/4 npsm x 1/4 npt;
stainless steel 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 185631 HOUSING, filter; stainless steel 1
10 235208 SWIVEL, 3/8–18 npsm x 3/8–18 npt 1
(Model 24A587)
n Keep these spare parts on hand to reduce down time.
