Graco Series A Instructions-Parts List

307273 7

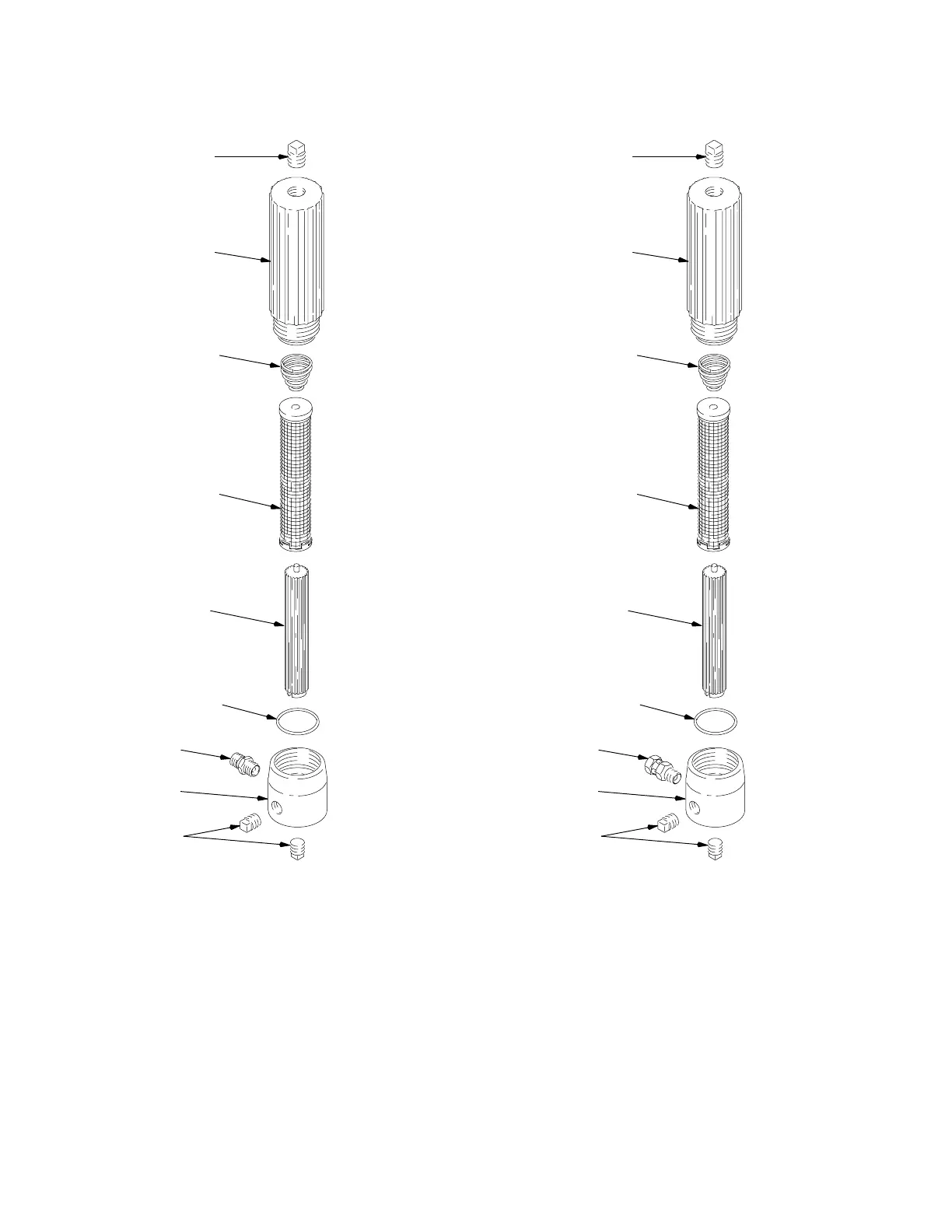

Parts
Model 214570, Series B
1
2
4
9
3n
6
5n
8
7
02529
Model 236789, Series A
1
2
9
3n
6
5n
8
7
4
Ref
No. Part No. Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
2 100509 PLUG; 1/4 npt; iron 2
3n 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 172831 BOWL, filter; aluminum 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
n Keep these parts on hand to reduce down time.
Ref
No. Part No. Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
2 100509 PLUG; 1/4 npt; iron 2
3n 104361 O-RING; PTFE 1
4 155665 SWIVEL 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 172831 BOWL, filter; aluminum 1
8 171941 SPRING, compression; stainless steel 1
9 188562 HOUSING, filter; carbon steel 1
n Keep these parts on hand to reduce down time.
