Maintenance
3A2988C 15
Maintenance
Clean Static Mixers
See FIG. 1, page 6. One 12 element mixer is attached
(S, Part No. 262478) to the integrator hose (L). This
housing uses mix elements, available in a package of 25
(W, Part No. 248927).
Clean Mix Manifold Outlet
1. Remove outlet fitting (33) to expose B center injec-
tion tube (9).
2. Clean any build-up on, around, or inside the
tube (9).
3. Reinstall outlet fitting (33).
NOTICE
Never use a swivel union on the mixer inlets. The
union will compress the tube and make it impossible
to remove the mix element.

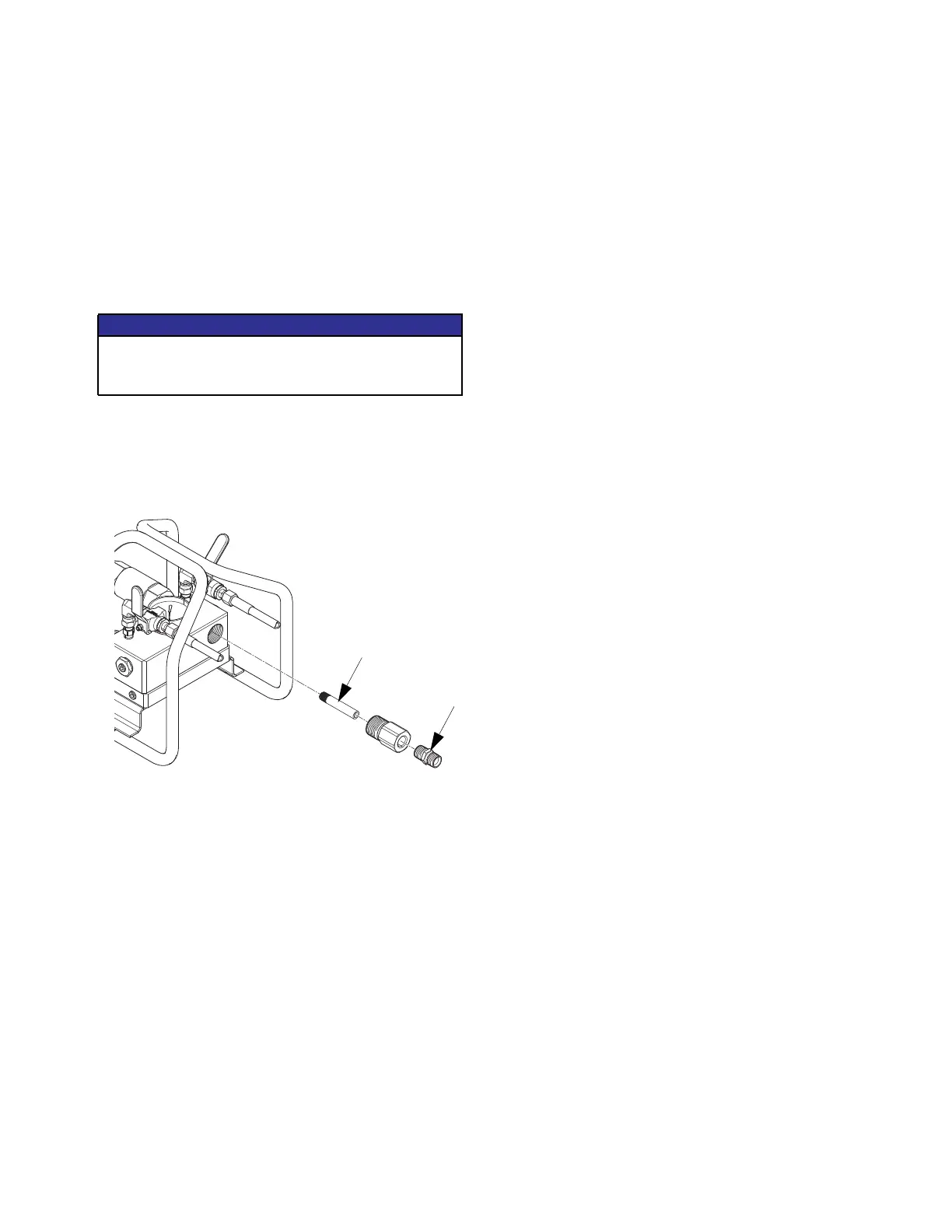

ti20096a
33
9
