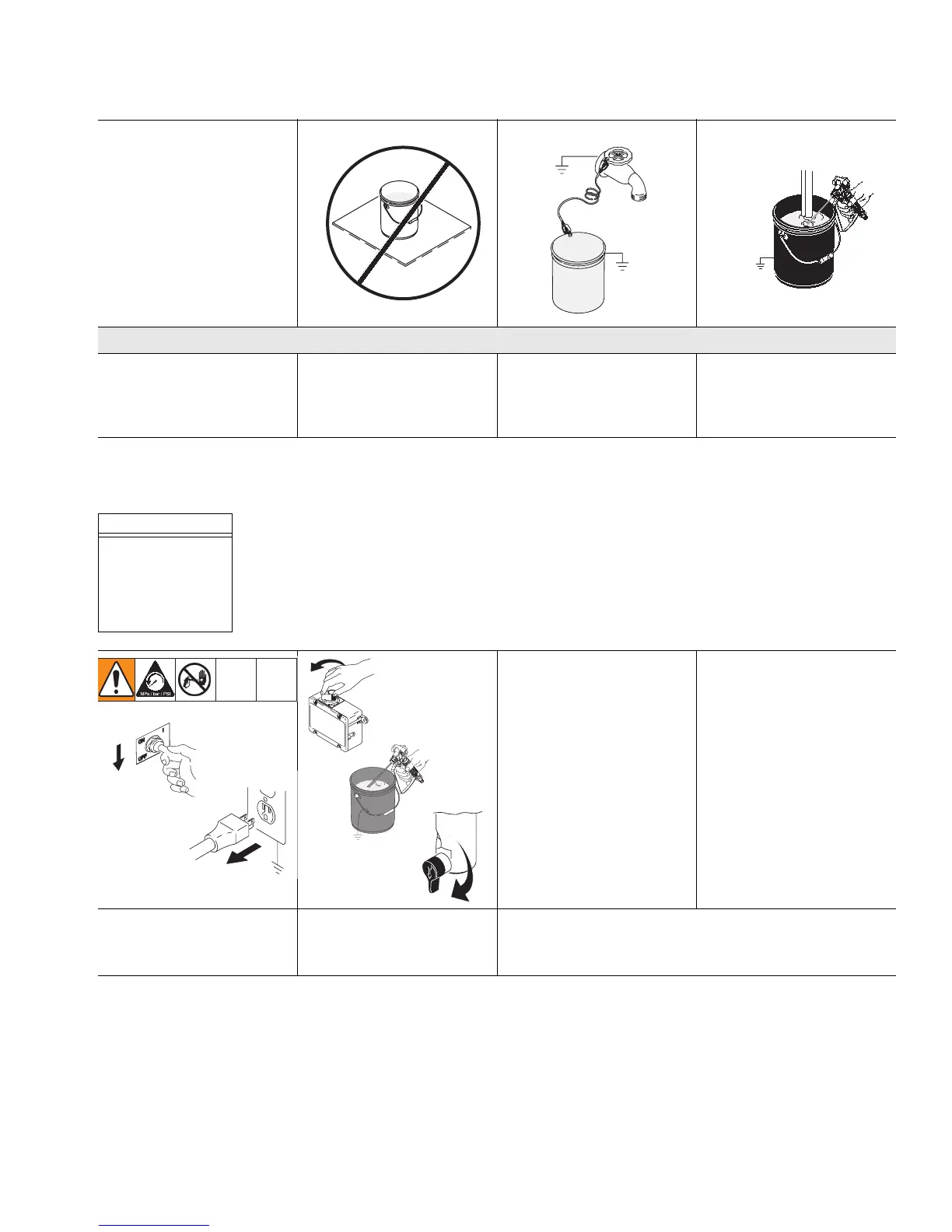

Pressure Relief Procedure
Pails
• Solvent and oil/based fluids:
follow local code. Use only
conductive metal pails, placed on
a grounded surface such as
concrete.
• Do not place pail on a
nonconductive surface such as
paper or cardboard which
interrupts grounding continuity.
• Grounding a metal pail: connect a
ground wire to the pail by clamping
one end to pail and other end to a
true earth ground such as a water
pipe.
• To maintain grounding
continuity when flushing or
relieving pressure: hold metal
part of spray gun firmly to side
of a grounded metal pail. Then
trigger gun.
ti5850a
ti5851a
TIAB
English
To reduce risk of injury
from injection, follow this
procedure whenever you
are instructed to relieve
pressure, stop spraying,
service equipment or
install or clean spray tip.
1 Turn power OFF and unplug
sprayer.
2 Turn pressure to lowest setting.
Trigger gun to relieve pressure.
Turn prime valve down.
If you suspect spray tip or hose is completely clogged, or that pressure has
not been fully relieved after following these steps, VERY SLOWLY loosen
tip guard retaining nut or hose end coupling to relieve pressure gradually,
then loosen completely. Now clear tip or hose obstruction.
