Spraying
18 3A9014A
Reversible Spray Tips
Your sprayer is shipped with wide and
narrow reversible Spray Tips.
• Blue Spray Tips are for spraying
paint and should be used with the
blue Pump Filter.
• Green Spray Tips are for spraying
stain and should be used with the
green Pump Filter (green tips and
filter are not included with all
models).

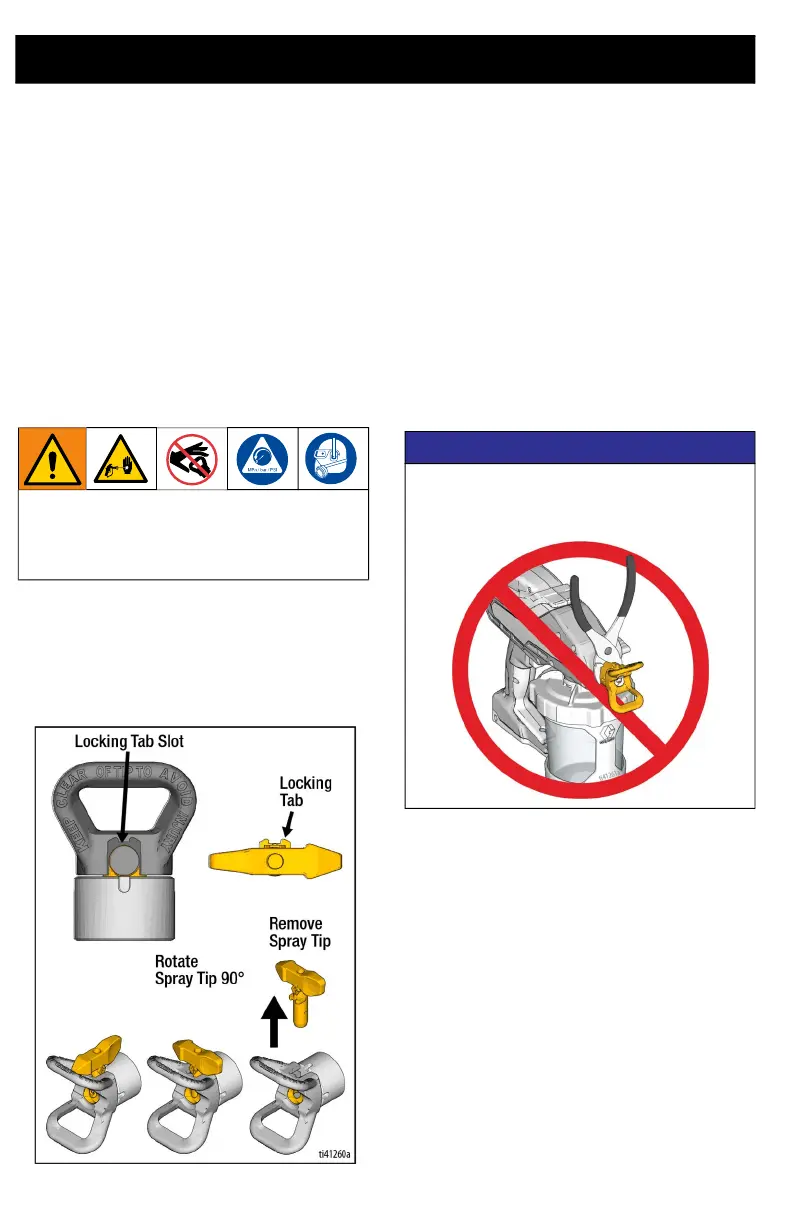

Spray Tip Removal
1. Turn Prime Knob down to PRIME
position to relieve system pressure.
2. Rotate Spray Tip 90 degrees.
3. Pull the Spray Tip straight out of the
Spray Tip Guard.
Spray Tip Installation
1. Align Spray Tip locking tab with the
locking tab slot in the Spray Tip Guard.
2. Push the Spray Tip all the way into the
Spray Tip Guard.
3. Rotate the Spray Tip to the SPRAY
position.
NOTE: Make certain the Spray Tip locking
tab is pushed all the way into the slot in the
Spray Tip Guard. You should not be able to
remove the Spray Tip from the Spray Tip
Guard when it is in the SPRAY or UNCLOG
positions.
To avoid serious injury from skin injection,
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
NOTICE
The Spray Tip Guard is permanently
attached to the sprayer. Removal will result
in damage to the sprayer.
