Graco ULTRA MAX 695 Manual

14 309251
On/Off and 15/20A Switch Replacement
1095 120 Vac (245030 – 245032, 245039)
Removal
1.
Relieve pressure; page 4.

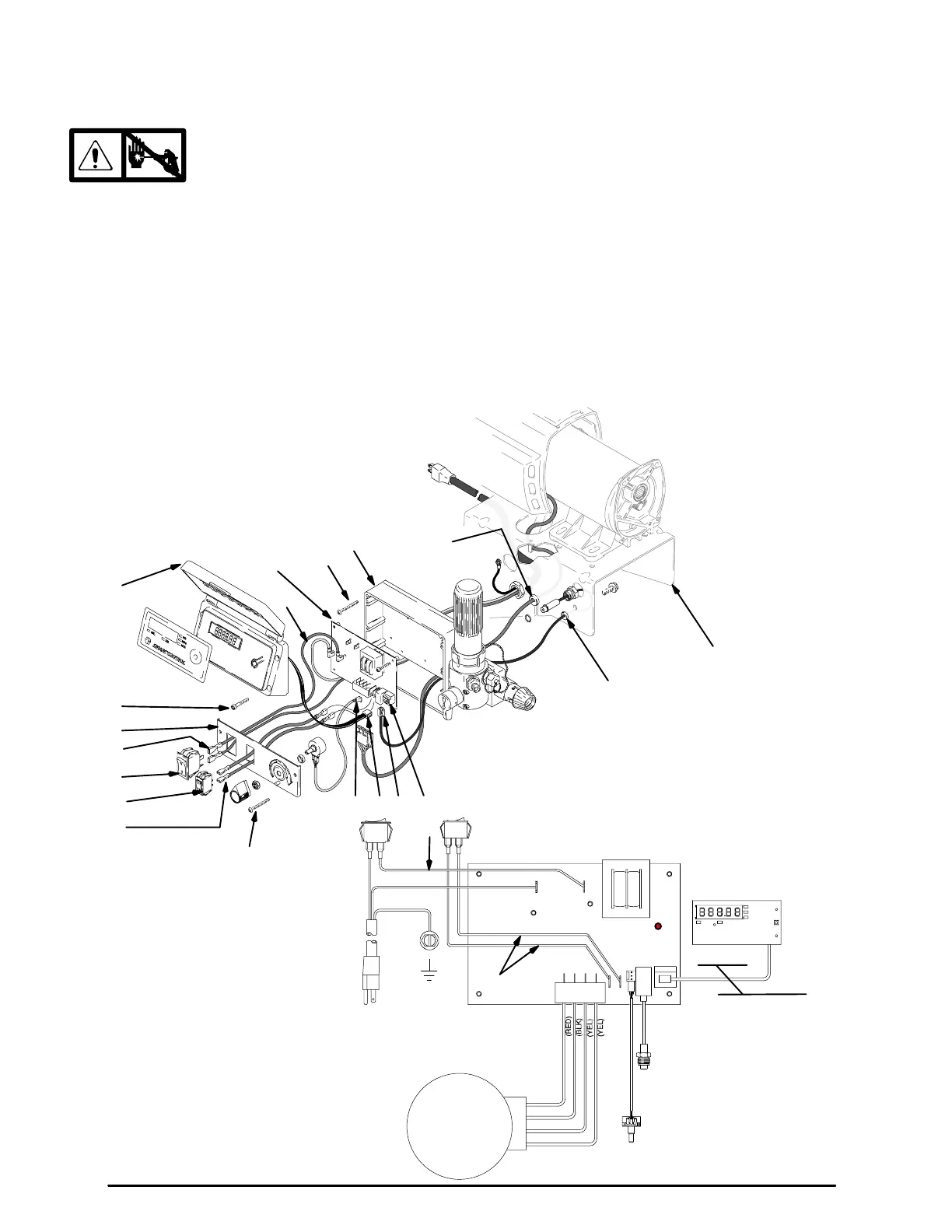

2. Fig. 11. Remove four screws (60) and pressure
control cover (49). Disconnect display connector (B).
3. Remove two screws (108) and control panel (67).
4. Disconnect two wires (A1) from ON/OFF switch (86).
5. Squeeze inside tabs on ON/OFF switch (86) and
remove from control panel (67).
6. Disconnect two wires (A2) from 15/20A switch (86).
7. Squeeze inside tabs on 15/20A switch (60) and
remove from control panel (67).
Installation
1.
Push 15/20A switch (60) into control panel (67) until
inside tabs snap in place
.
2.
Connect two wires (A2) to 15/20A switch (86).
3. Push ON/OFF switch (86) into control panel (67) until
inside tabs snap in place
.
4.
Connect two wires (A1) to ON/OFF switch (86).
5. Install control panel (67) with two screws (108).
6.
Install display connector (B). Install pressure control
cover (49) with four screws (60).
Display
Not available
on all sprayers
ti0902A
15/20A
Switch 60
Wiring Diagram
Pressure
Transducer
Ref 68
Potentiometer
Ref 64
Red (+)
Black (–)
Yellow
Power Cord
Ref 66
On/Off
Switch
Ref 86
Black
White
70
Green
North America
1095 120 VAC
Motor
Fig. 11
Black
Violet
49
60
86
A2
67
A1
60
112
41
43
D EBC
108
58
42
72
108
Ref
38
LED

Graco ULTRA MAX 695 Specifications

General

Maximum Flow Rate	0.95 GPM
Maximum Operating Pressure	3300 PSI
Hose Length	50 ft
Maximum Pressure	3300 PSI
Power Source	Electric
Material	Stainless Steel
Motor Power	2.0 hp Brushless DC
