User Interface Display
NOTE:
For details regarding the user interface display see the
XM Plural-Component Sprayer operation manual
312359.
Main Display Screen Components
The following figure calls out the navigational, status, and general informational components of each display screen.
F

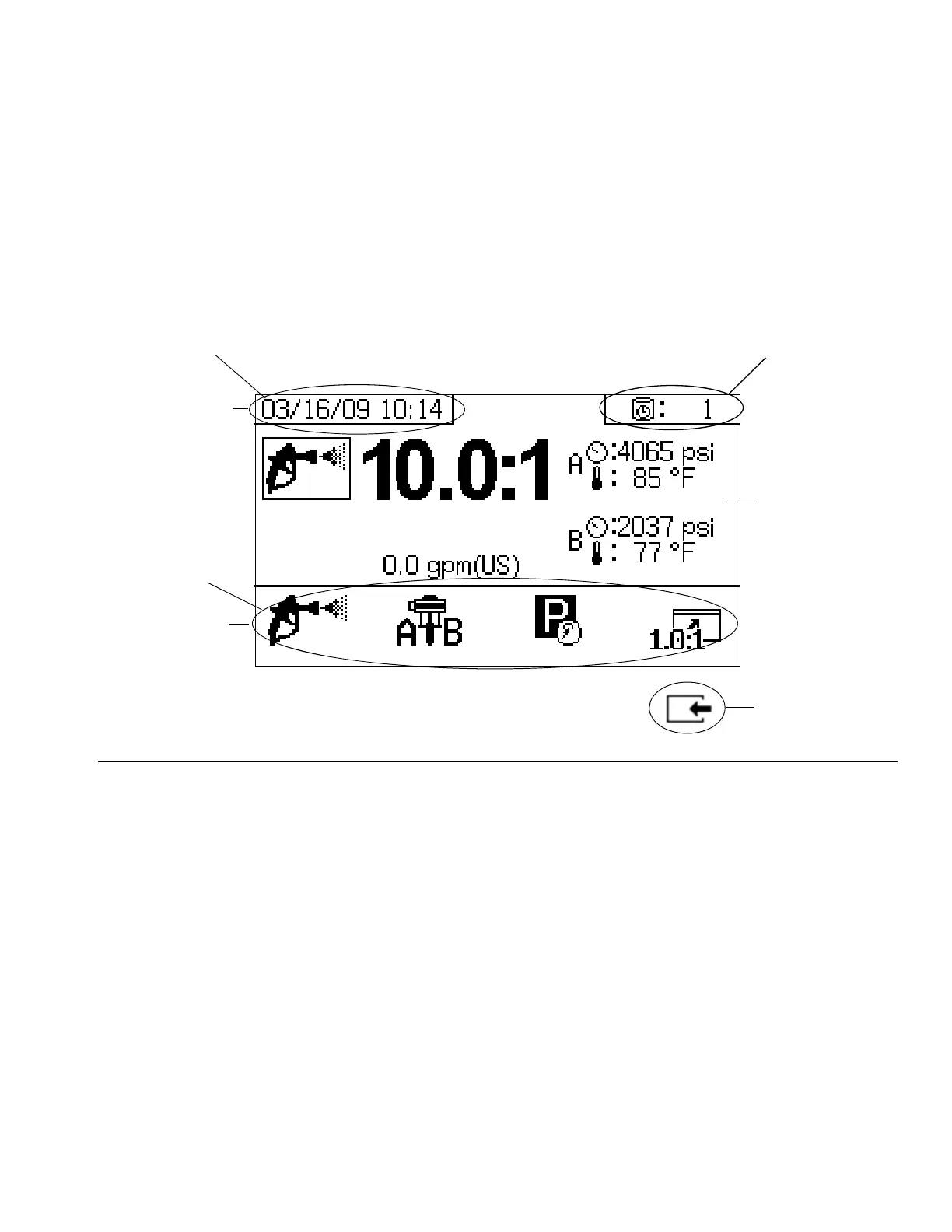

IG. 5: Main Display Screen Components
Current Date and Time
Navigate to screens
within same group
Go back one screen
Current Status Bar
Navigational Bar
Function Display
Remaining Potlife Time
To Next Page
