Flush Mixed Material

Flush Mix Manifold

Use Solvent Pump

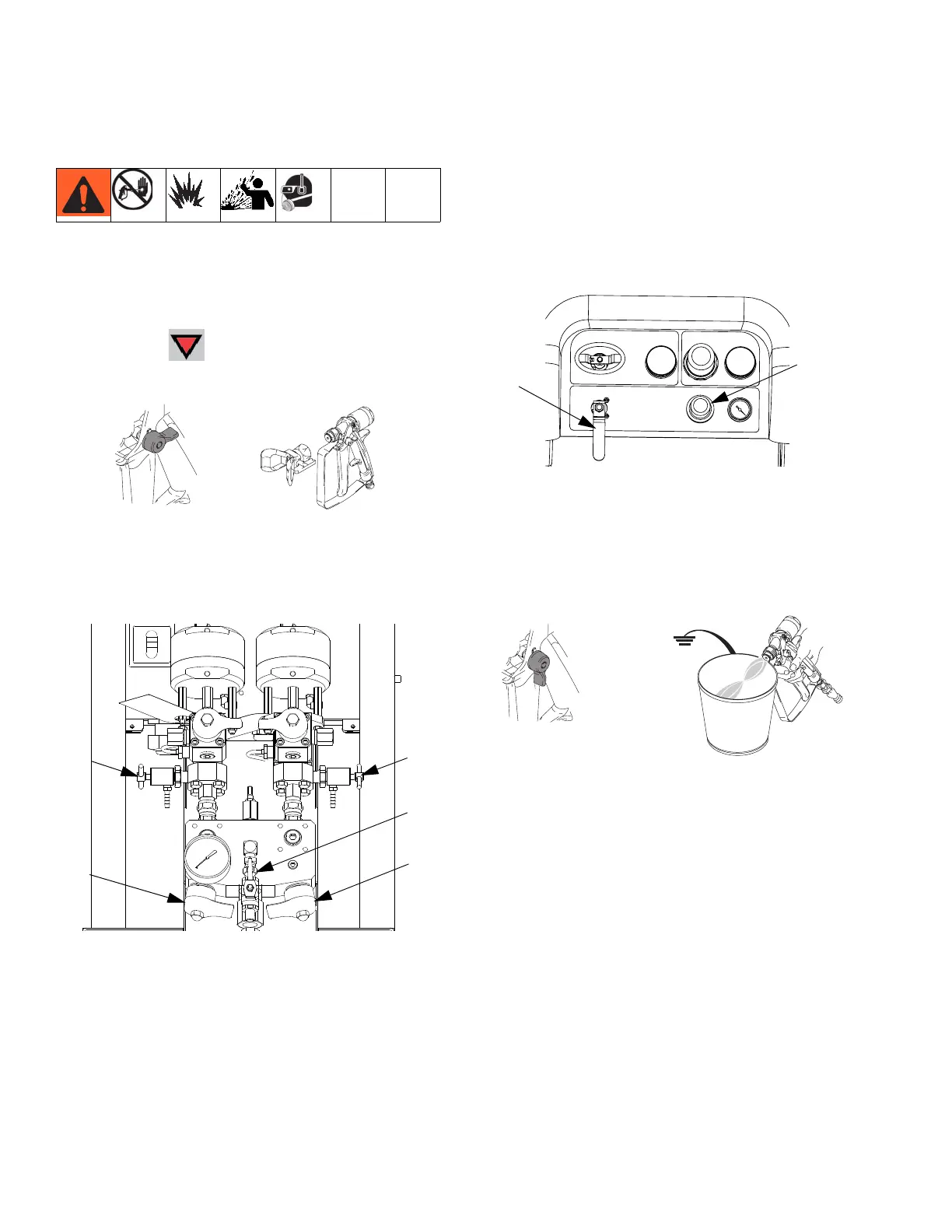

1. Press Stop to turn off system. Engage trigger

lock. Remove spray tip.

2. Ensure sampling valves (AE, AF) and mix manifold

valves (AH, AJ) are closed.

3. Open solvent shutoff valve (AK) at mix manifold.

4. Open solvent pump air valve (CB). Pull out and

slowly turn solvent pump air regulator (CG) clock-

wise to increase air pressure. Use lowest possible

pressure.

5. Disengage trigger lock and trigger gun into a

grounded pail. Use a pail lid with a hole to dispense

through. Seal around hole and gun with a rag to pre-

vent splash back. Be careful to keep fingers away

from front of gun. Flush out mixed material until

clean solvent dispenses.

ti1949a

ti1948a

ti1950a

ti1953a
