Graco XM User Manual

Parts
22
XMA_00 and XMB_00 Parts
NOTE: Reference numbers not listed are not
included with XMA_00 and XMB_00 systems.
 Included with XMAD00 and XMBD00 systems only.
 Included with XMAA00 and XMBA00 systems only.
 Included with XMBA00 and XMBD00 systems only.
 Not shown.
 Replacement Danger and Warning labels, tags, and
cards are available at no cost.
Ref. Part Description Qty.
2 255753 MANIFOLD, mix; see manual
313289
1
3 255969 VALVE, ratio control, left; see man-
ual 313289
1
4 255970 VALVE, ratio control, right; see
manual 313289
1
5 255761 MODULE, air controls, upper; see
manual 313289
1
6 255762 MANIFOLD, inlet air distribution;
see manual 313289
1
7 255771 BOX; see manual 313289 1
19 255728 MODULE, alternator 1
20 110637 SCREW, mach, pan hd
XMAA00 and XMBA00 3
XMAD00 and XMBD00 5
21 C12508 TUBING, nylon, round 5
22 15V778 CABLE, I.S.CAN, female/female;
20 in.
1
23 15V782 CABLE, I.S. CAN, male/female;
20 in.
1
24 15V783 CABLE, male/female; 39 in. 1
25 15V747 POWER SUPPLY, assy.; 24Vdc,
2.5A, 60W
1
26 100035 SCREW, machine, pan hd 4
27 15X407 CABLE, power 1
28 115306 FILTER, power 1
29 15V779 CABLE, I.S. CAN, female/female;
34 in.
1
38 112958 NUT, hex, flanged 11
40 15X393 LABEL, warning, USB 1
41 15X126 LABEL, codes 1
42 15W598 LABEL, warning 1
43 156971 NIPPLE, short 1
44 115243 REGULATOR, air, 1/4 npt 1
45 112307 ELBOW, street; 1/8 nptf x 1/8 nptm 1
46 15W017 VALVE, safety, regulator 1
47 115841 ELBOW, swivel, male; 1/4 npt 1
48 104655 GAUGE, pressure, air 1
49 156823 UNION, swivel 1
50
 102063 WASHER, lock, ext 1
51 15B090 WIRE, grounding, door 1
52 100284 NUT, hex mscr 1
53 121295 SCREW, cap, socket hd 8
54 158491 NIPPLE; 1/2 npt 2
55 100361 PLUG, pipe; 1/2 in. - 14 nptf 2
56 15R529 BLOCK, manifold 2
57 156684 ADAPTER, union 2
58 121139 O-RING 2
59 15J594 HOUSING, valve 2
60 255747 CARTRIDGE, valve 2
61 15R380 HANDLE, green 1
62 15J916 HANDLE, blue 1
63 117623 NUT, cap; 3/8-16 unc 2
64 24A034 CARRIAGE 1
65 111801 SCREW, cap, hex hd 12
66 108636 MUFFLER 1
67 121688 CONNECTOR, 3/8 npt x 3/8 tube 1
68 054753 TUBE, nylon, round, black; 10 ft;
see Component Identification,
page 9
69 054757 TUBE, nylon, round; 10 ft; see
Component Identification, page 9
73 238909 WIRE, grounding assy 1
74 16A004 FLASH DRIVE, USB, 2.0 1
Ref. Part Description Qty.

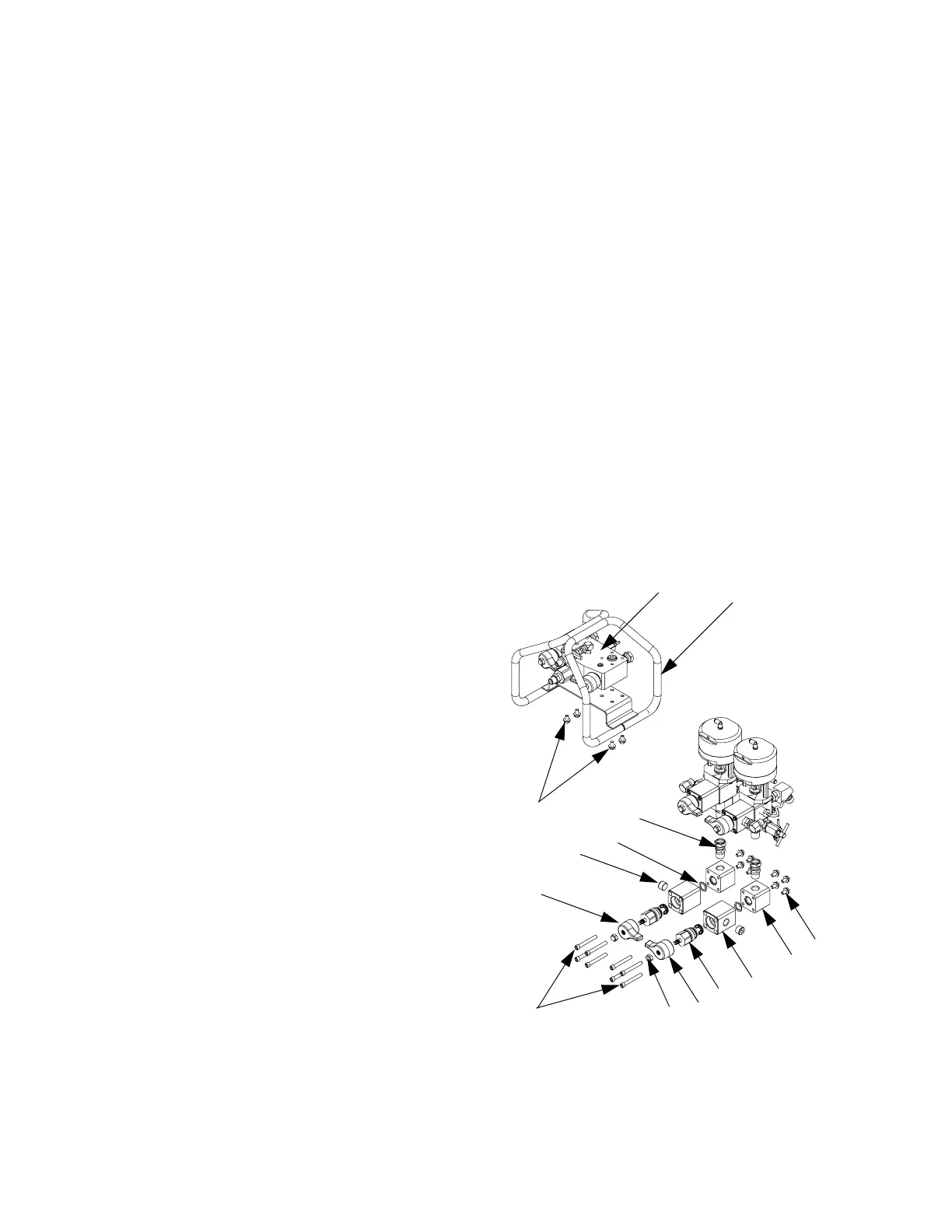

XMBA00 and XMBD00 Systems Only
2
64
65
57
62
55
53 63
61
59
56
65
60
58
r_xmaa00_313292_1a
