Component Identification
3A0420ZAF 17
XP-h Proportioners
Key:
D High Pressure Fluid Pump
E Hydraulic Motor
F Fluid Heater (optional)
G Solvent Flush Pump (optional); see page 19
H Solvent Flush Pump Air Controls; see page 19
J 7 Gallon Hoppers (optional)
KCart
LBrake
M Handle (lift to release)
N Fluid Control Assembly; see page 18
P Tie Rods
R Motor Adapter Plate
S Adjustable Packing Nuts with Wet Cups
T Yoke With Rod Bearings
U Recirculation Lines
V Yoke Position Nut
W Static Mixer Tubes with Replacement Plastic Elements
X Motor Position Indicator Lines; see Motor Position on
page 25
Y Over Pressure Rupture Disc;
only 38cc, 48cc, 54cc, 58cc, and 72cc pumps
Z Air Motor Ground Wire

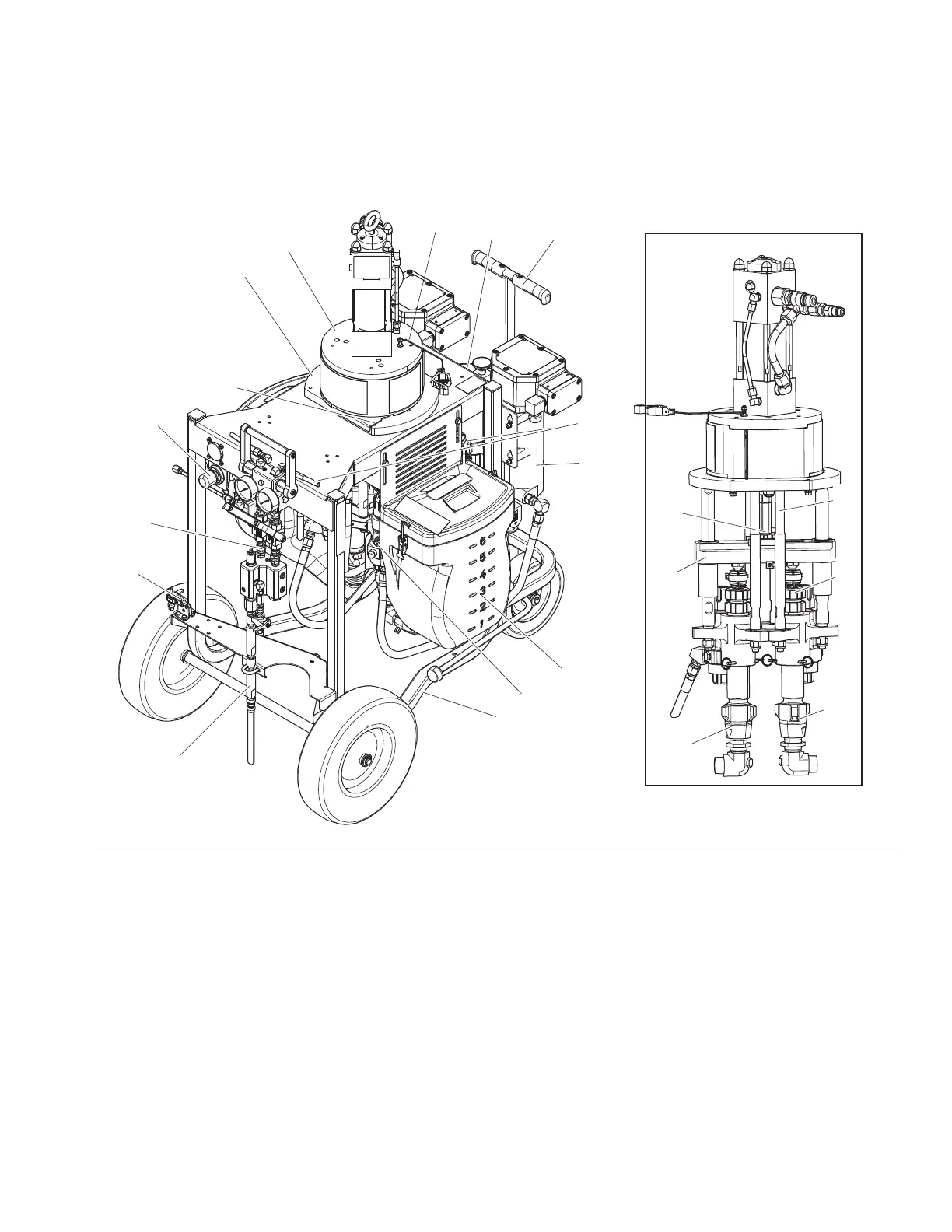

FIG. 2: XP70-h System with Optional Accessories
WLF
(
5
;
+
1
.
/
:
-
)
8
8
*
0
'
'
6
3
9
7
<
=
XP-h Pump Package
