Parts
3A0420ZAF 75

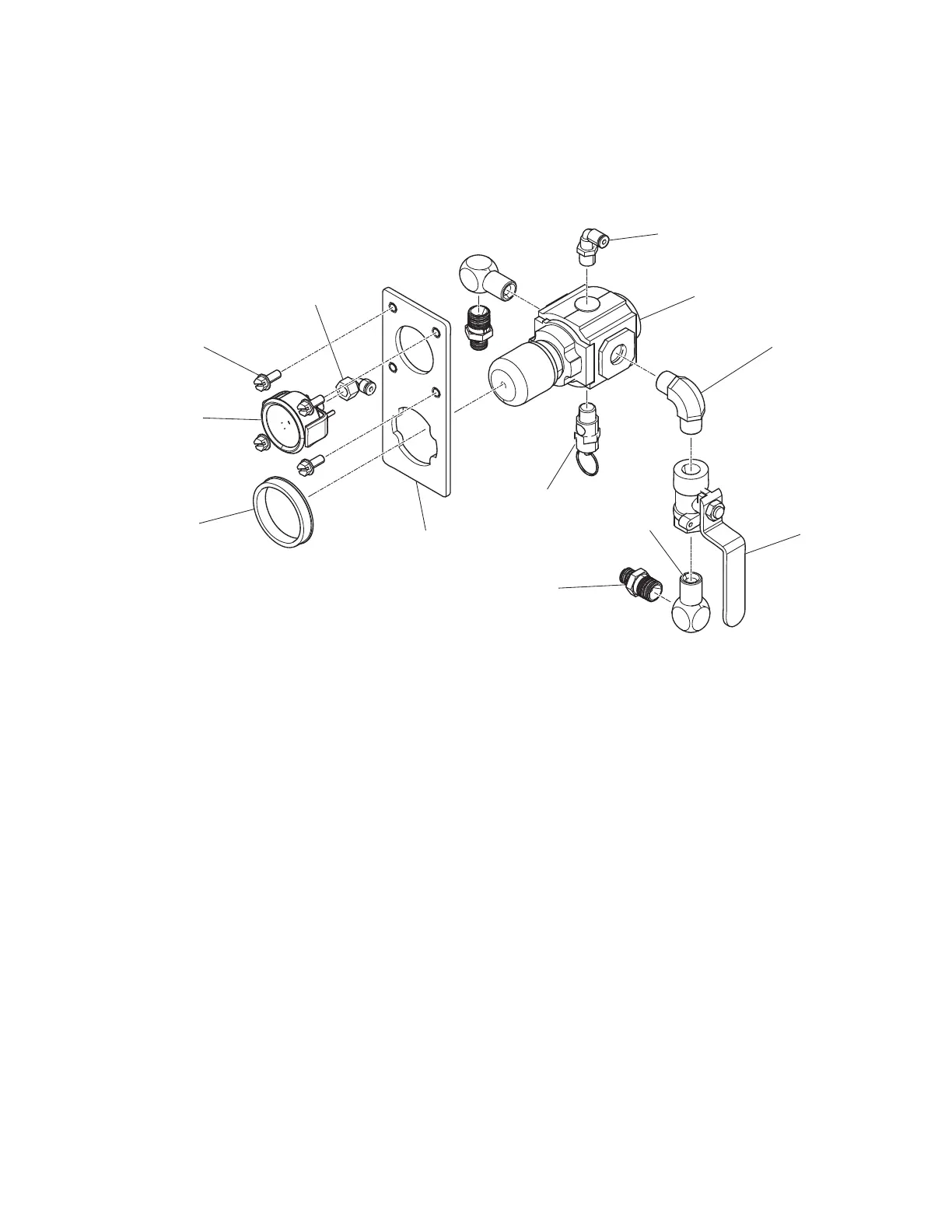

Solvent Air Control Parts
24F126
Parts List
WLD












Ref. Part Description Qty.
551 - - - - - PANEL, air controls, slvt, painted
1
552 15T500 GAUGE, pressure, air, pl mnt, 1/8
1
553 15T536 REGULATOR, air, 3/8 npt
1
554 16F810 NUT, regulator, steel
1
555 114362 VALVE, ball, air
1
556 15T498 FITTING, 90 , swvl, 5/32 t x 1/8 fnpt
1
558 113498 VALVE, safety, 110 psi
1
559 15T937 FITTING, elbow, swivel 1/4 npt x 5/32 t
1
560 155699 FITTING, elbow, street
2
561 164672 ADAPTER
2
563 054753 TUBE, nylon, rd, black
0.75
568 108296 SCREW, mach, hex wash hd
4
569 109544 FITTING, elbow, pipe, male
1
