Setup
3A0420ZAF 27

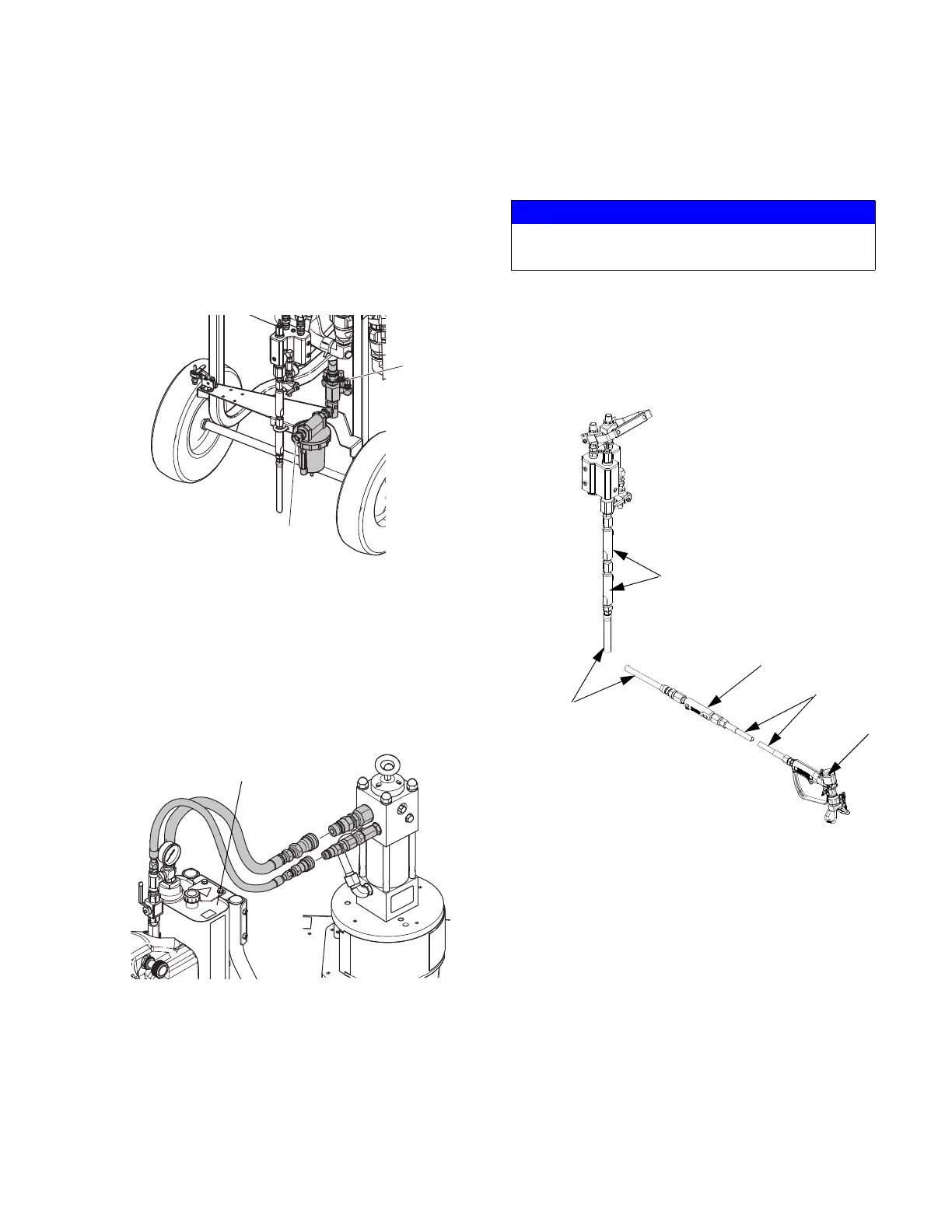

Connect Air Supply
For XP systems only.
1. Connect the air supply hose to the 3/4 npt(f) air filter
inlet (C).
Use a 3/4 in. (19.1 mm) ID minimum air hose. Air
consumption is 75 cfm per gallon per minute spray-
ing. Do not use cam-lock type quick disconnects.
2. Remove plugs (PL) as necessary for solvent pump
and feed supply pump air hoses. See pump
manuals for setup instructions.
Connect Hydraulic
Supply/Return Lines
For XP-h systems only.
Refer to your GH Power Pack instruction and parts
manual for more information on the GH Power Pack.
Connect Static Mixers, Gun, and
Hoses
1. Connect the outlet of the two primary static mixer
tubes with mixer elements (W) to the fluid mix
hose (25), cleanup mixer (27, 28), whip hose (30),
and spray gun (GN).
2. Add mixed material hose as necessary between the
mix hose (25) and cleanup mixer (27, 28).
NOTICE
To prevent creating a flare on the mixer tube, do
not use a union swivel end on the mix tube inlet.
25
W
27, 28
30
GN
Standard Mix Manifold shown
