Parts
76 3A0420ZAF

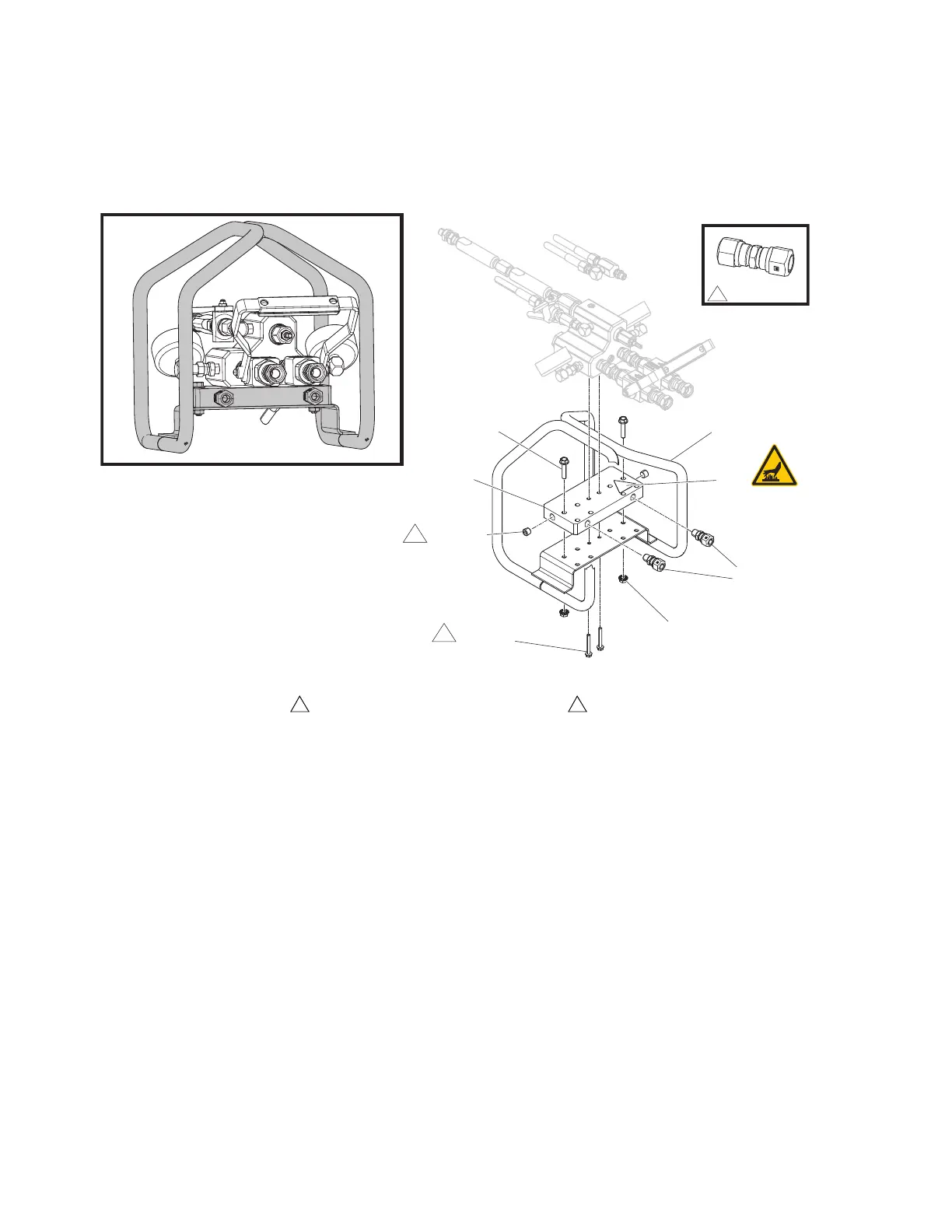

Heater Block Remote Manifold Kit
Kit 24Z934
WLD



[
[
[
[



Apply thread sealant to all non-swiveling
pipe threads.
Supplied loose, not installed.
1
2
Ref. Part Description Qty.
601 24F834 CARRIAGE, weldment, remote manifold
1
602 16T294 PLATE, heater transfer, PFP 2k
1
603 110837 SCREW, flange, hex
2
604 110996 NUT, hex, flange head
2
605 126692 FITTING, tube, NPT x tube
2
606 100721 PLUG, pipe
2
608 189285 LABEL, safety, burn
1
609 120736 SCREW, hex flange HD
2
610 126894 FITTING, union, 1/2 tube x 1/2 tube
2
611* 054960 TUBE, red, nylon, .375 (9.5 mm) ID (1.5 ft)
1
612* 054961 TUBE, blue, nylon, .375 (9.5 mm) ID (1.5 ft)
1
* Supplied loose, not installed.
Replacement Danger and Warning labels, tags, and cards are
available at no cost.
