Operation
3A0420ZAF 31

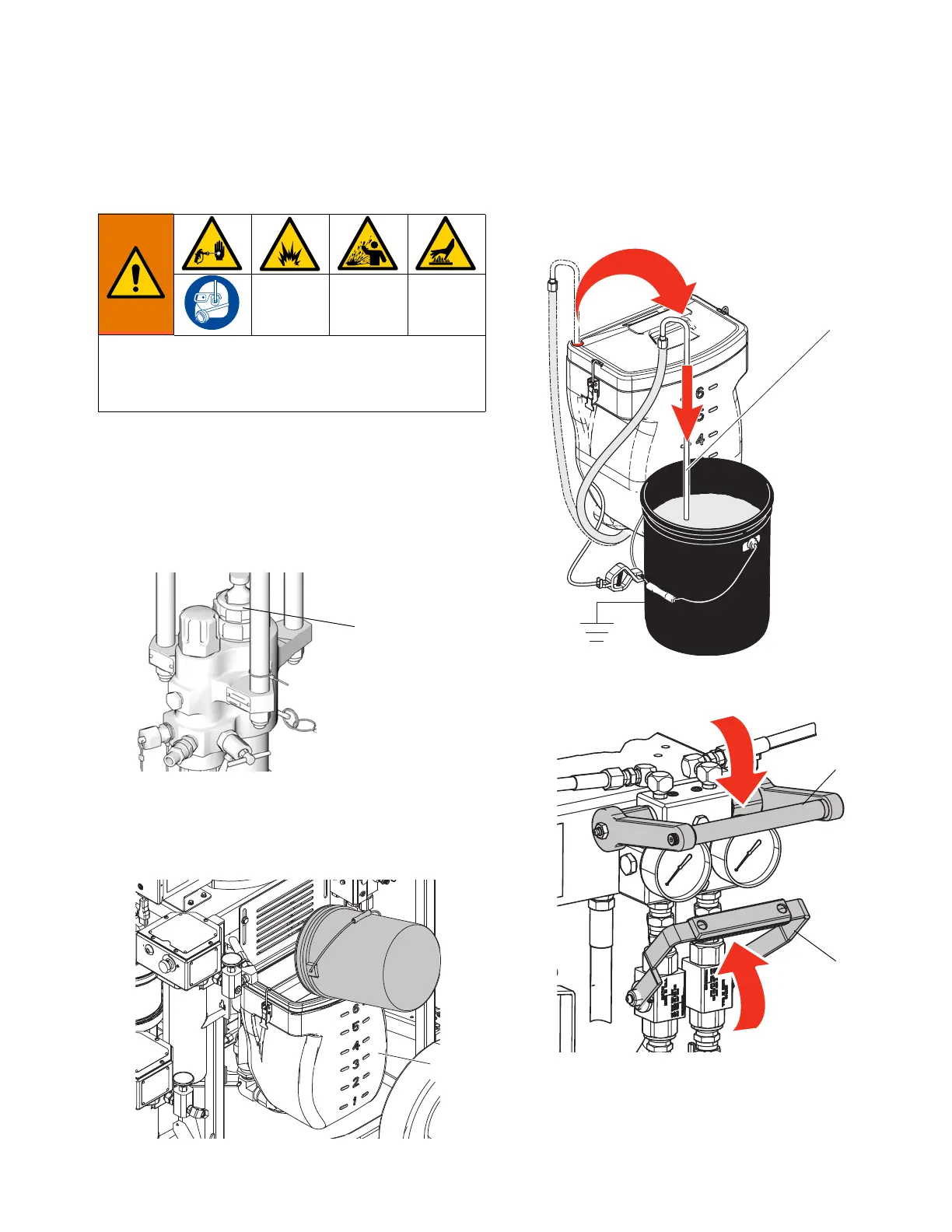

Prime Empty System
Prime A and B Fluids
The equipment is tested with light weight oil at the fac-
tory. If necessary, flush out the oil with a compatible sol-
vent before spraying. See Empty and Flush Entire
System (new system or end of job), page 39.
1. Before starting, check packing nut (S). Fill with
Throat Seal Liquid (TSL). Torque to 25-30 ft-lb
(34-41 N•m).
2. Prepare the materials prior to adding to the hoppers
(J). Ensure that the resin materials are thoroughly
mixed, homogeneous, and pour-able prior to adding
to the hopper. Stir the hardeners back into
suspension prior to adding material to hopper.
3. Fill the A and B hoppers with proper materials. Fill
the A side (blue) with major volume of material; fill
the B side (green) with minor volume of material
(unless 1:1 mix ratio).
4. Move the recirculation lines (U) to empty containers.
5. Close the dual shutoff handle (FE) and open the
circulation handle (FC).
To help prevent injury, wear gloves when using
solvents and/or if the fluid temperature exceeds 110 °F
(48 °C). To avoid splashing, use the lowest pressure
possible to prime.
S
WLD
-
8
WLD
WLD
FE
FC
