Parts
78
3A0420ZAF

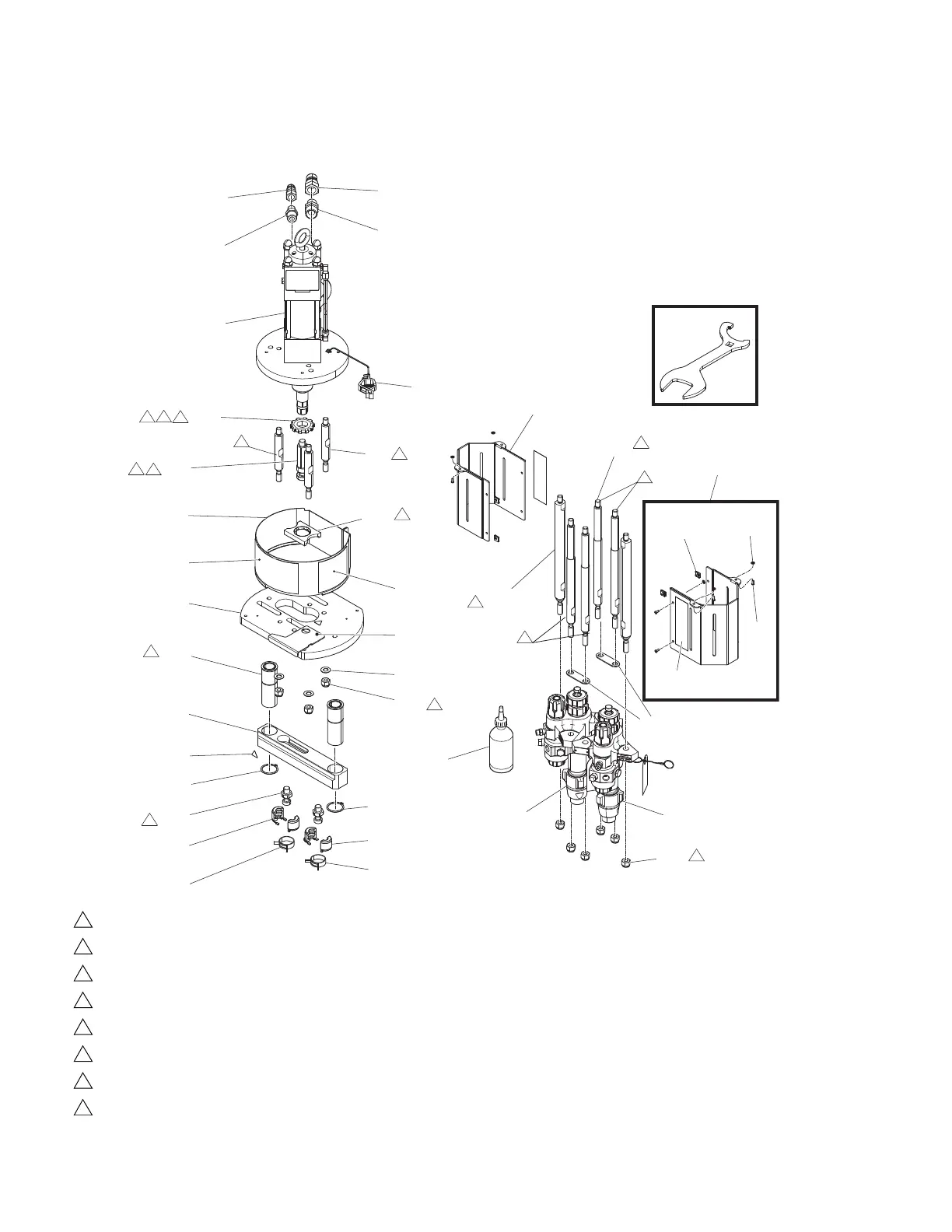

XPh Proportioning Pump Package
Torque together to 50-60 ft-lb (
68-81 N•m).
Torque to 145-155 ft-lb
(196-210 N•m).
Apply blue thread sealant.
Insert lanyard from locking pi
n onto pumps (17, 18) as shown.
Do not apply lubricant.
Torque to 70-80 ft-lb (95-10
8 N•m).
Apply lithium grease to mating tapered surfaces.
Nuts with nylon patch - add anti-seize lub
ricant.
Nuts without nylon patch - add blue thread sealant.
1
2
3
4
5
6
7
8
WLD
F
E
G
D
77
79
