Graco XTR 7 - Resolving Persistent Spray Tip Clogs

Maintenance
310743A 17

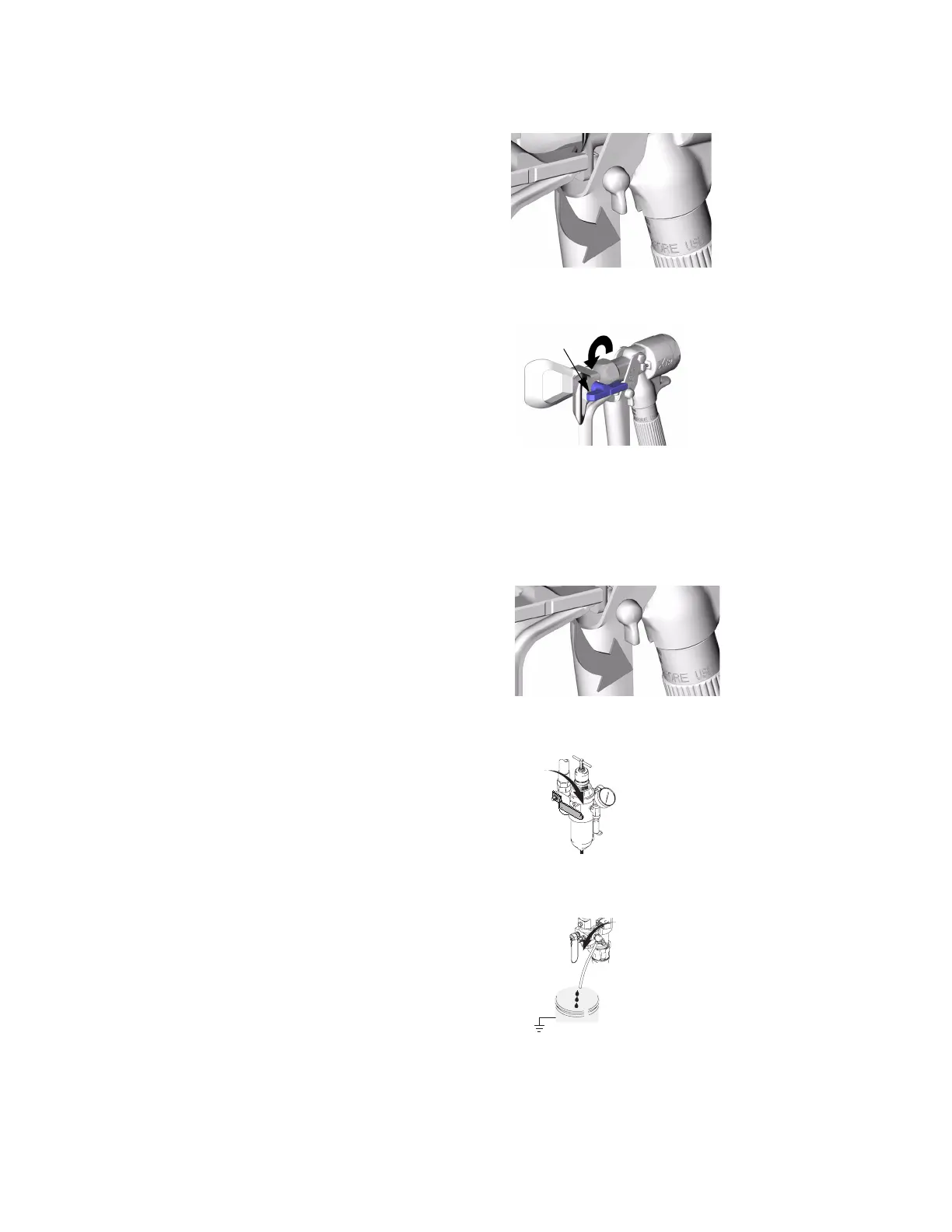

8. If tip is still clogged:
6. Engage trigger lock.
TI5049A
7. Rotate (G) 180° to spraying position (arrow points
forward).
a. Engage trigger lock.
G
TI5182A
TI5048A
b. Shut off sprayer and disconnect power source.
c. Open fluid drain valve to relieve pressure.
