Graco XTR 7 User Manual

Repair
310743A 25

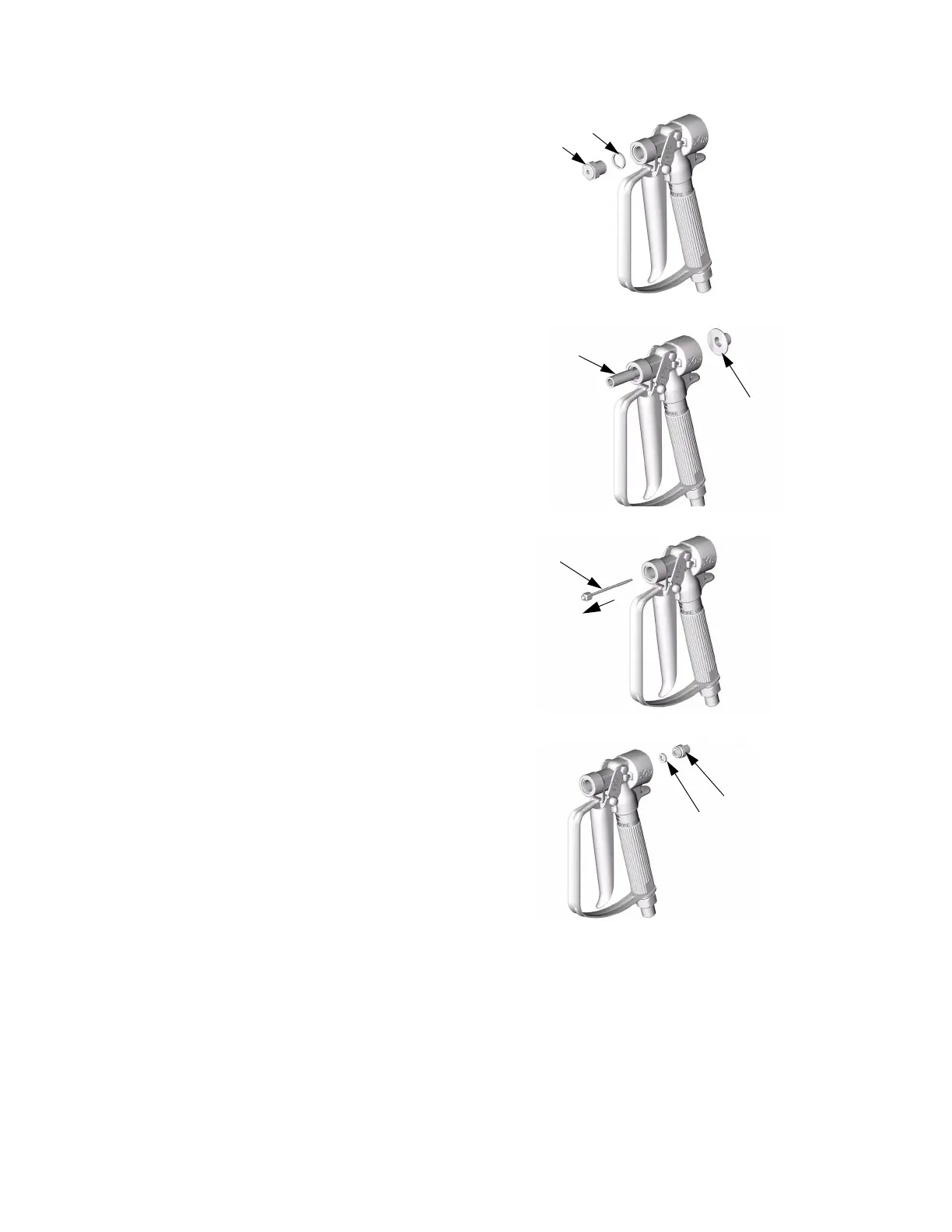

4. Remove the valve seat (10*) and gasket (9*).
5. Holding the needle with tool (A*) remove the needle
retainer (6).
6. Pull the needle (8*) out.
7. Using a socket wrench, remove the seal retainer (2*)
from the back of the gun. Use a pick to remove the gas-
ket (3*).
9*
10*
T15186A
6
T15187A
A*
TI5188A
8*
T15189A
3*
2*
