Repair
26 310743A
If you need to remove the trigger
8. Clean and replace parts as needed.
1. Using a wrench, remove screw (12) from the trigger stud (11).
To avoid losing parts, be ready for two actuator pins (7) to fall out of the gun body (1) when the trigger (16) is
removed.
2. Slide the trigger stud (11) out of the gun body, and
remove the trigger (16).
3. Before installing trigger grease the actuator pins (7) and
trigger stud (11).

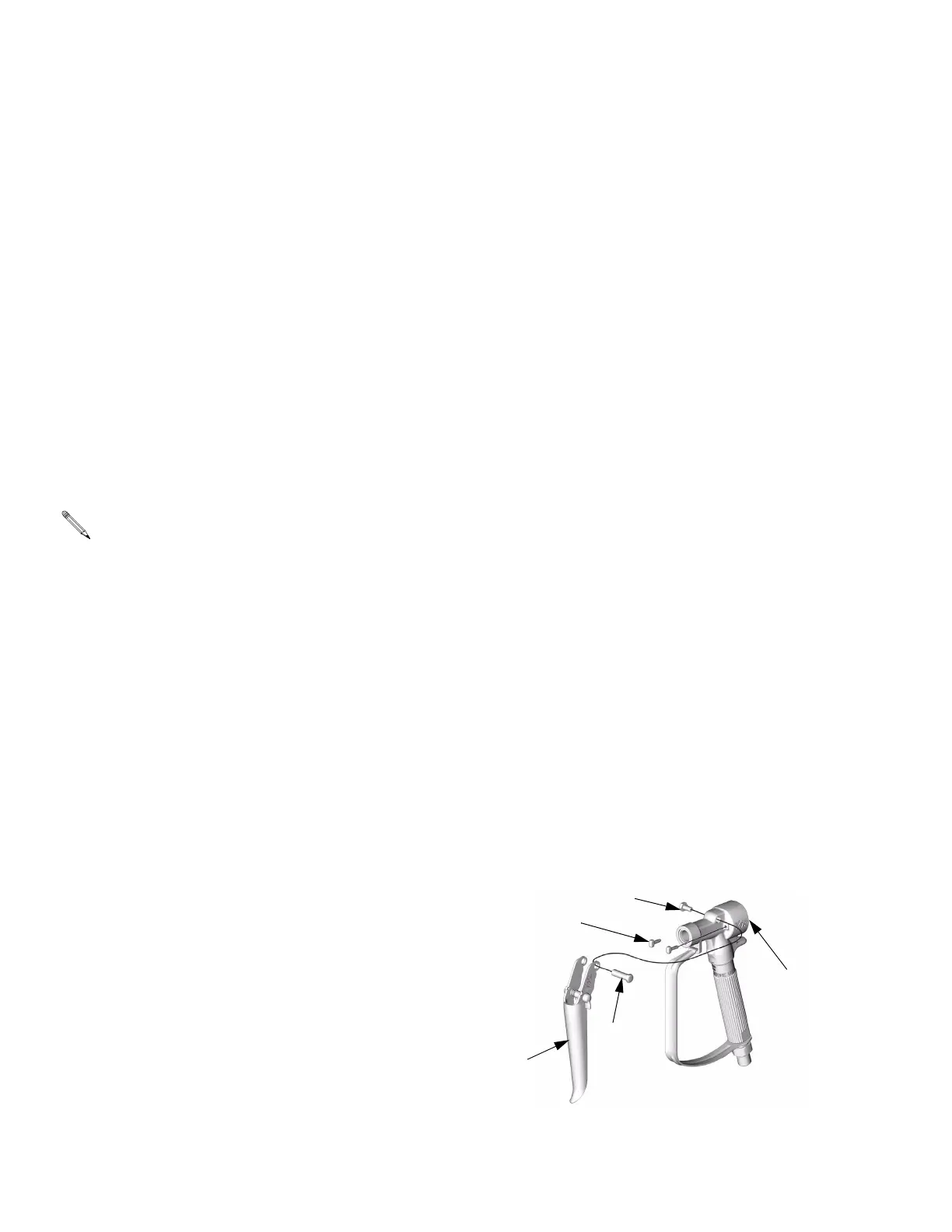

T15190A
12
7
16
11
1
