Graco XTR 7 User Manual

Repair
28 310743A
Test Gun Before Using

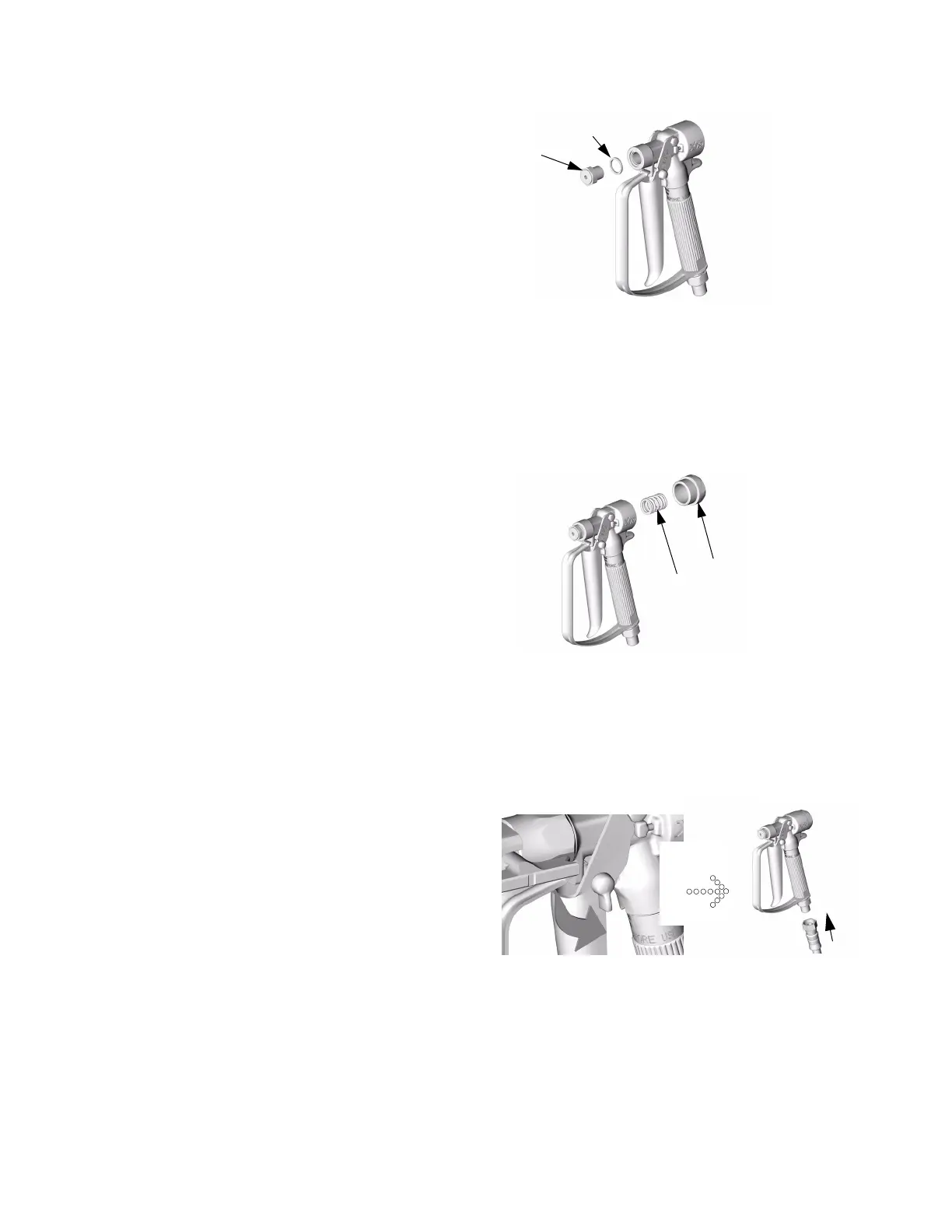

4. Lightly grease valve seat (10*) threads. Squeeze the trig-
ger to retract the needle and install gasket (9*) and valve
seat (10*). Torque valve seat to 26-32 ft-lbs (35-43 N•M).
5. Grease and install the spring (5) and cap (4). Tighten the
cap to 10-13 ft-lbs (8-10 N•M)
9*
TI5186A
10*
5
4
TI5185A
1. Engage trigger lock. Connect fluid hose to gun.
TI5175A
T
I5049A
