Gram K3 - SCALE SETUP AND POWER

!
(!

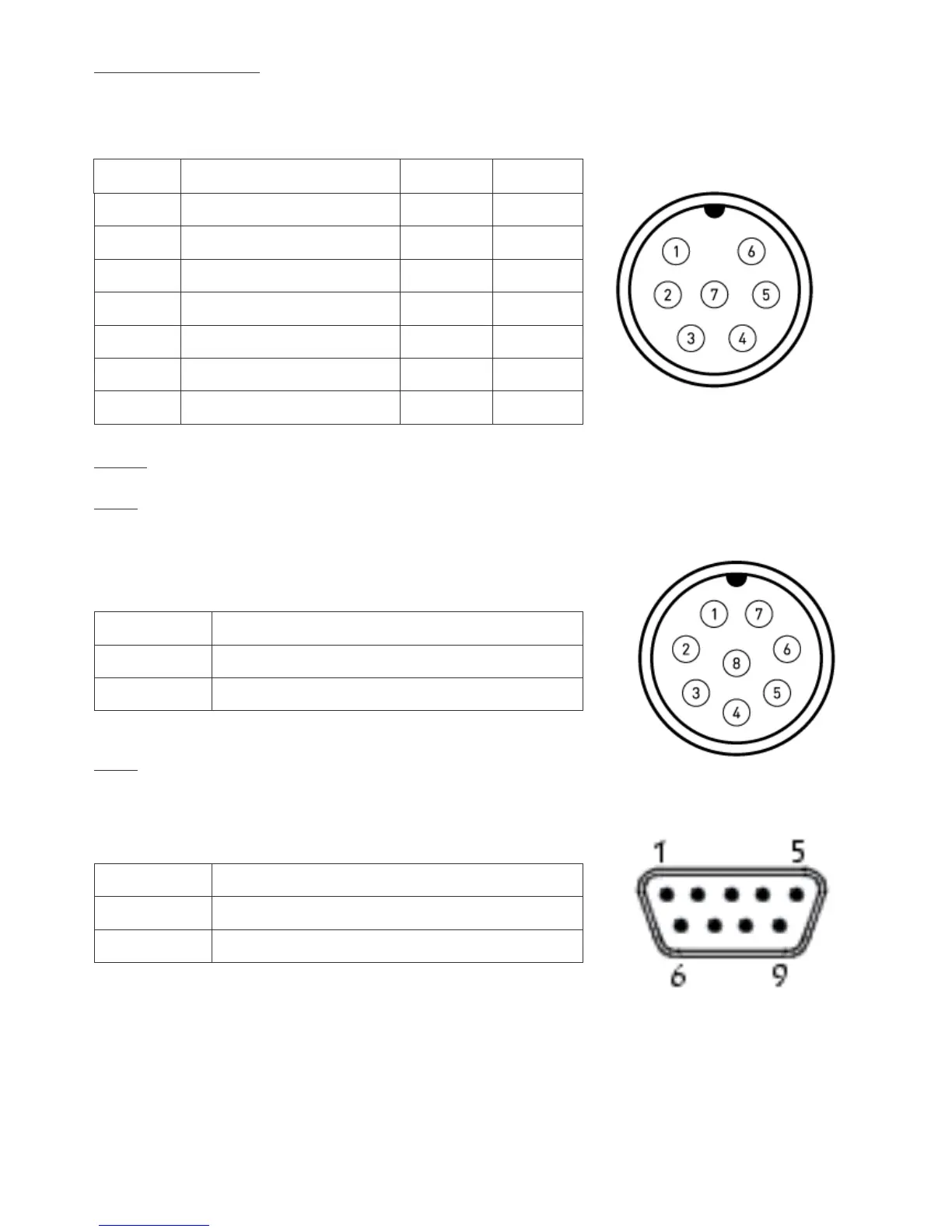

Platform 1 connection.
Multipin mobile connector.
Male chassis socket P700 (7-pin).
RS-232
Case 1
Multipin mobile connector.
Male chassis socket P700 (8-pines).
4
RxD
5
TxD
6
GND
Caso 2
DB9 male connector
Load Cell A
Load Cell B
PIN 1
SIG -
Blue
White
PIN 2
SIG +
Brown
Green
PIN 3
SHIELD
Shield
Shield
PIN 4
EXC -
Black
Black
PIN 5
SENSE -
-
Blue
PIN 6
EXC +
Red
Red
PIN 7
SENSE +
-
Yellow
2
RxD
3
TxD
5
GND
