19
7

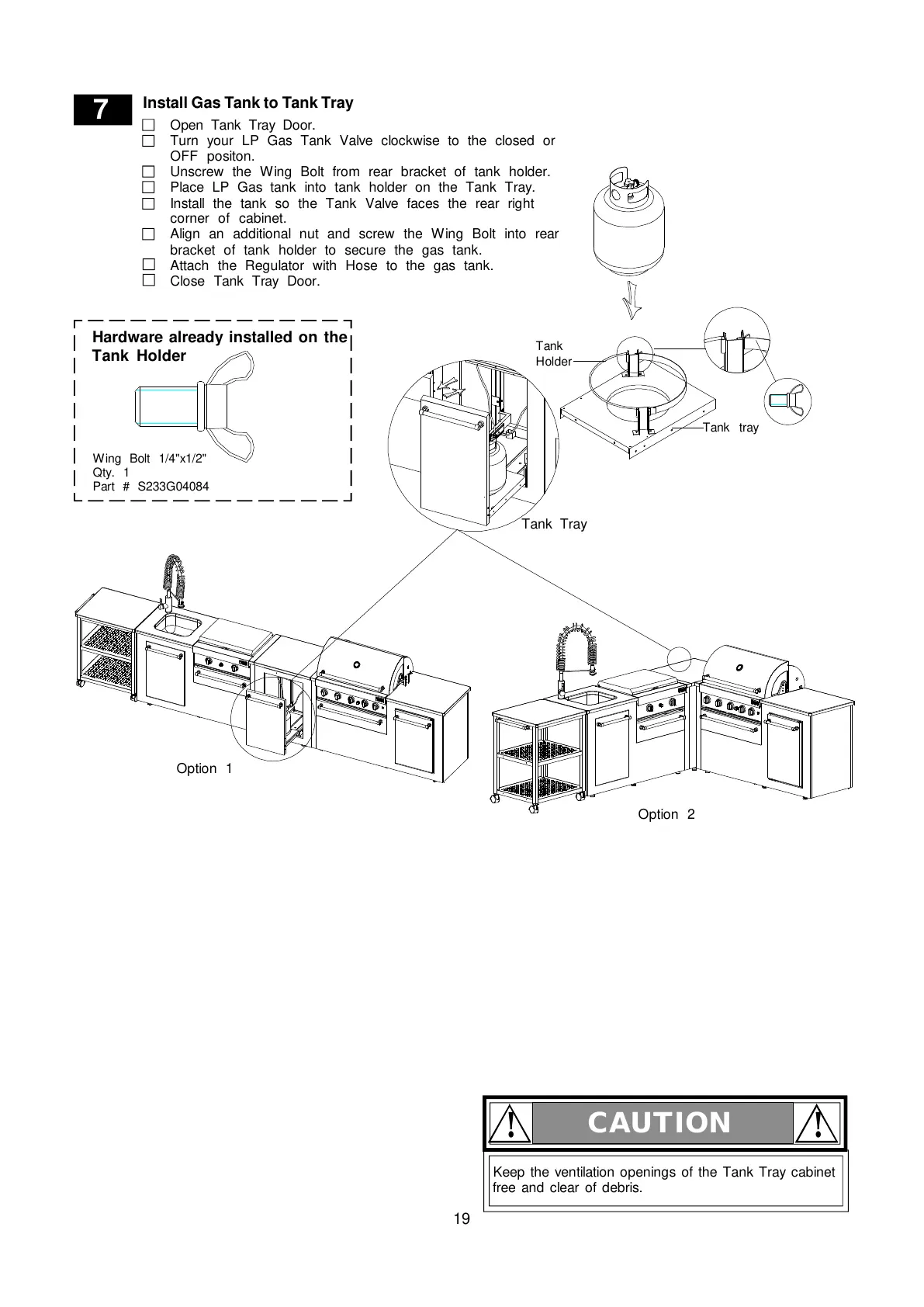

Install Gas Tank to Tank Tray
Open Tank Tray Door.
Turn your LP Gas Tank Valve clockwise to the closed or
OFF positon.
Unscrew the Wing Bolt from rear bracket of tank holder.
Place LP Gas tank into tank holder on the Tank Tray.
Install the tank so the Tank Valve faces the rear right
corner of cabinet.
Align an additional nut and screw the Wing Bolt into rear
bracket of tank holder to secure the gas tank.
Attach the Regulator with Hose to the gas tank.
Close Tank Tray Door.
Keep the ventilation openings of the Tank Tray cabinet
free and clear of debris.
CAUTION
! !
Tank Tray
Option 1
Option 2
Tank tray
Tank
Holder
Wing Bolt 1/4"x1/2"
Qty. 1
Part # S233G04084
Hardware already installed on the
Tank Holder
To Next Page
