INSTALLATION INSTRUCTIONS Gas Furnace: WFAR
50 440 01 7104 02
Specifications subject to change without notice.
1
2
3
4
6
7
5
5
Rotate vent elbow to
required position.
Any other unused
knockout may be used
for combustion air
connection.
&
UPFLOW LEFT CONFIGURATION
A11309A
1
2
3
4
5
6
7
5
Rotate vent elbow to
required position.
A
ny other unused
knockout may be used
for combustion air
connection.
UPFLOW RIGHT CONFIGURATION
A11308A
1
2
3
4
5
6
7
5
A
ny other unused
knockout may be used
for combustion air
connection.
UPFLOW VERTICAL VENT
A11310A

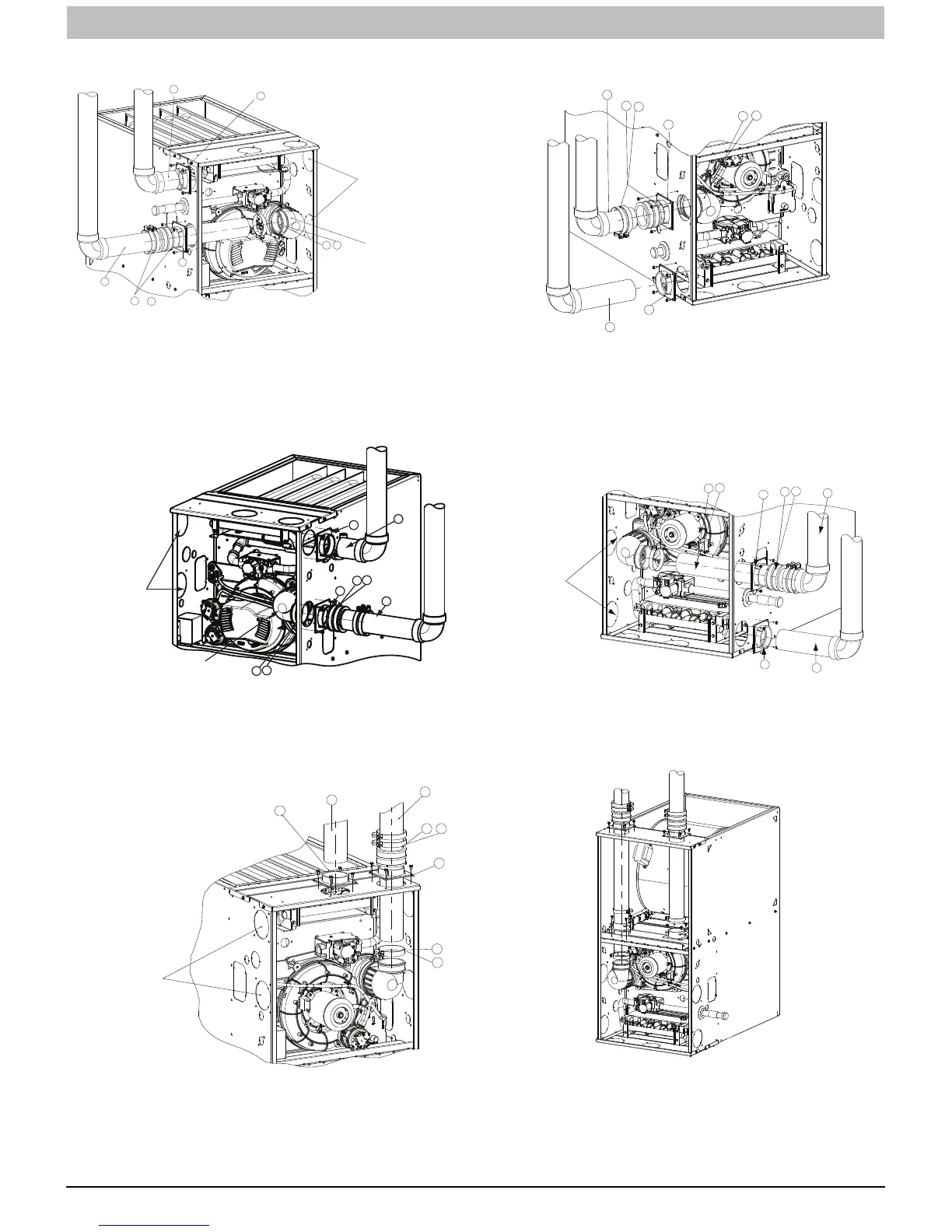

Figure 45 -- Upflow Configurations (Appearance may vary)
See “Notes for Venting Options”
1
2
3
4
5
6
7
5
Rotate vent elbow to
required position.
DOWNFLOW LEFT CONFIGURATION
A11311A
1
2
3
4
5
6
7
5
Rotate vent elbow to
required position.
A
ny other unused
knockout may be used
for combustion air
connection.
DOWNFLOW RIGHT CONFIGURATION
A11312A
Requires Accessory Internal Vent Kit.
See Product Data for current kit number.
DOWNFLOW VERTICAL
A11313A
Figure 46 -- Downflow Configurations (Appearance may
vary) See “Notes for Venting Options”
