INSTALLATION INSTRUCTIONS Gas Furnace: WFAR
440 01 7104 02 51
Specifications subject to change without notice.

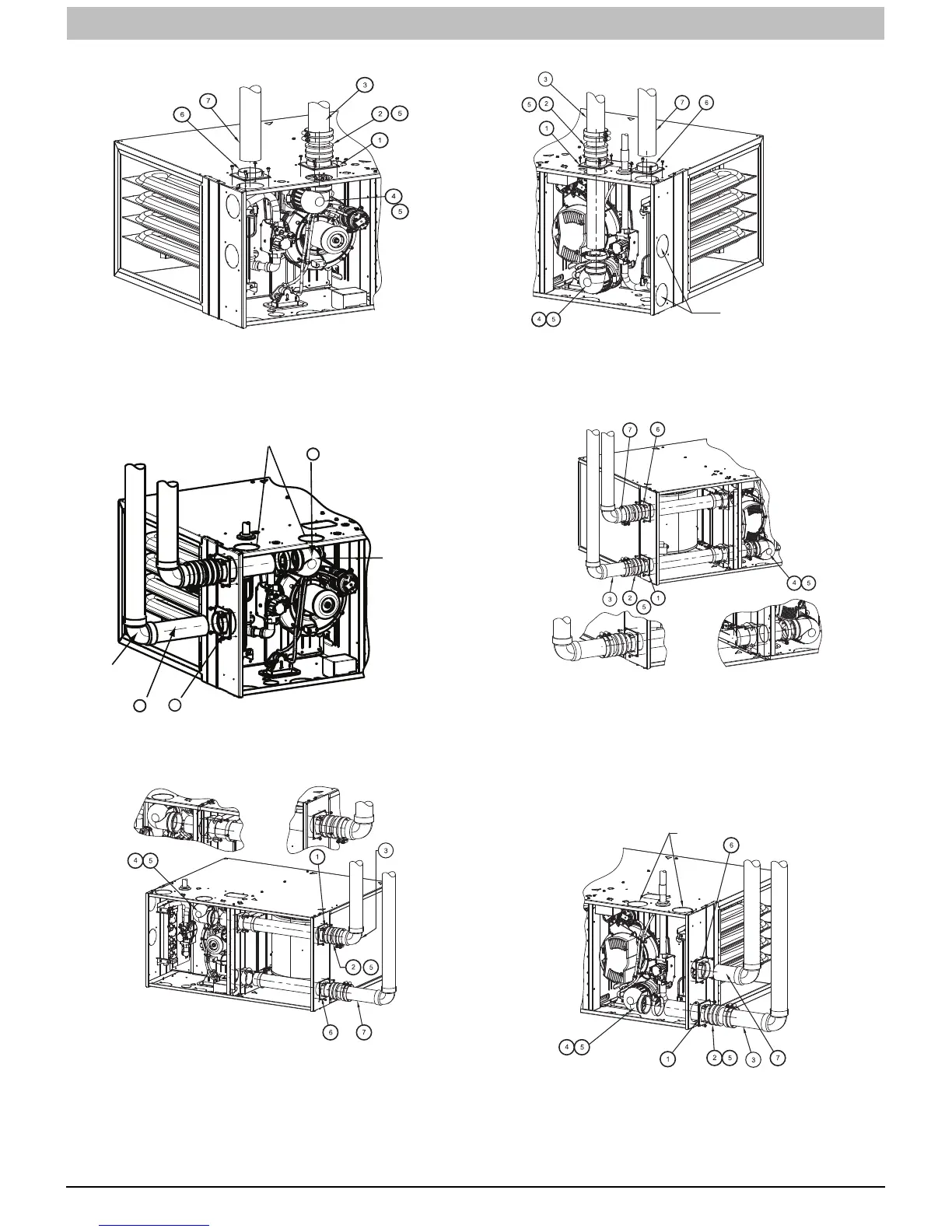

HORIZONTAL LEFT--VERTICAL VENT CONFIGURATION
A11327A
6
4
Alternate combustion air
connection.
Rotate vent
elbow to
required
position.
4
5
Vent Pipe
HORIZONAL LEFT--LEFT VENT CONFIGURATION
A11328A
Requires Accessory Vent Kit
See Product Data for
Current Kit Number
HORIZONTAL LEFT--RIGHT VENT CONFIGURATION
A11329A
Figure 47 -- Horizontal Left (Appearance may vary)
See “Notes for Venting Options”
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT--VERTICAL VENT CONFIGURATION
A11337
Requires Internal Vent Kit
See Product Data for Current Kit Number
HORIZONTAL RIGHT--LEFT VENT CONFIGURATION
A11336
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT--RIGHT VENT CONFIGURATION
A11335
Figure 48 -- Horizontal Right (Appearance may vary)
See “Notes for Venting Options”
