FIRMWARE VERSION 1.0.8.4 GXP1100/GXP1105 USER MANUAL Page 13 of 53
INSTALLATION
EQUIPMENT PACKAGING
Table 2: GXP1100/GXP1105 EQUIPMENT PACKAGING
Main Case
Yes
1
Handset
Yes
1
Phone Cord
Yes
1
Power Adaptor
Yes
1
Ethernet Cable
Yes
1
Phone Stand
Yes
1
Quick Start Guide
Yes
1
CONNECTING YOUR PHONE

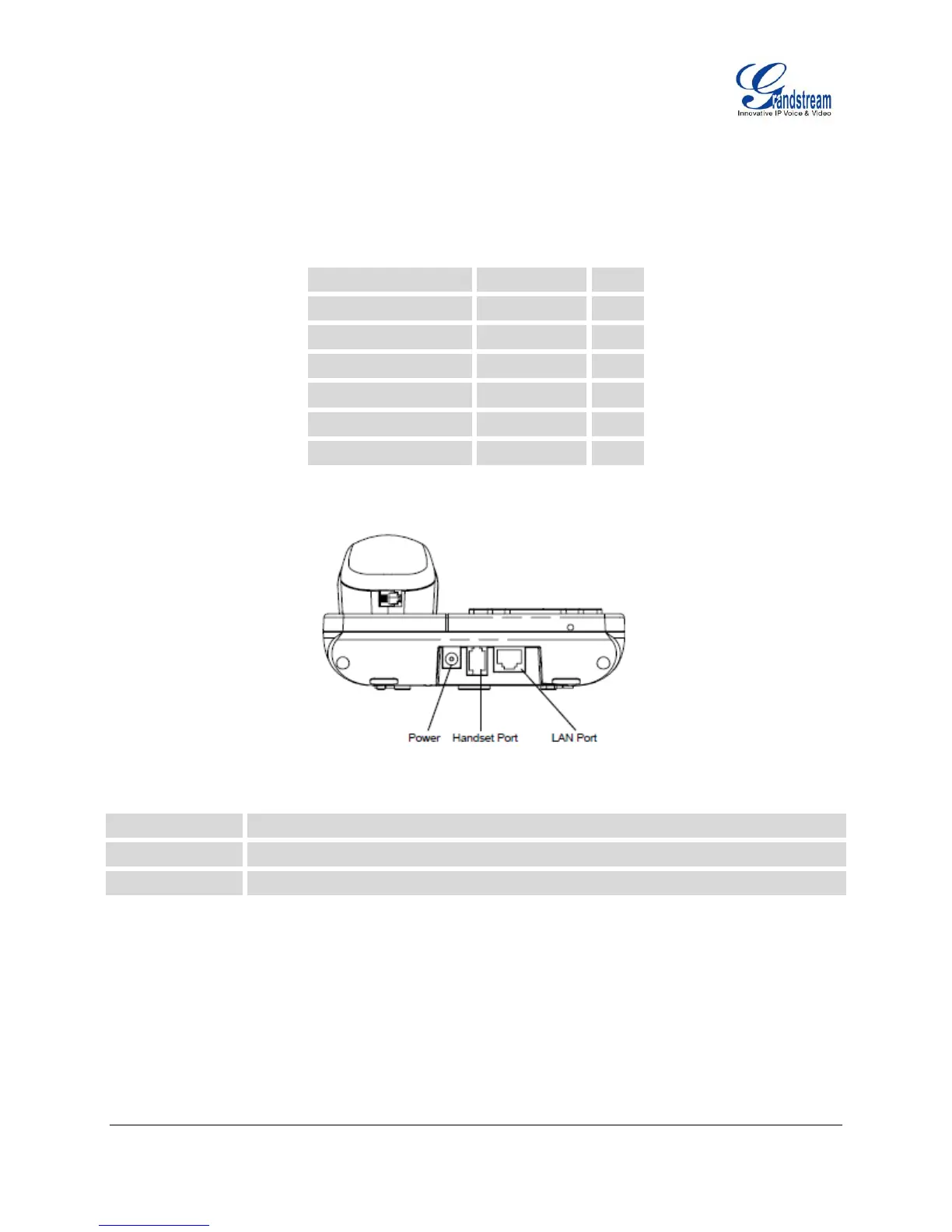

Figure 1: GXP1100/GXP1105 Ports
Table 3: GXP1100/GXP1105 CONNECTORS
Handset Port
RJ9 handset connector port
LAN Port
10/100Mbps RJ-45 port connecting to Ethernet, integrated PoE (GXP1105 only)
Power Jack
5V DC Power connector port
To set up the GXP1100/GXP1105, follow the steps below:
1. Attach the phone stand to the back of the phone where there is a slot for the phone stand;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used on GXP1105 in step 3, this step could be skipped;
