Grandstream Networks UCM6102 Instruction Manual

V 1.4 7
UCM6102 IP PBX

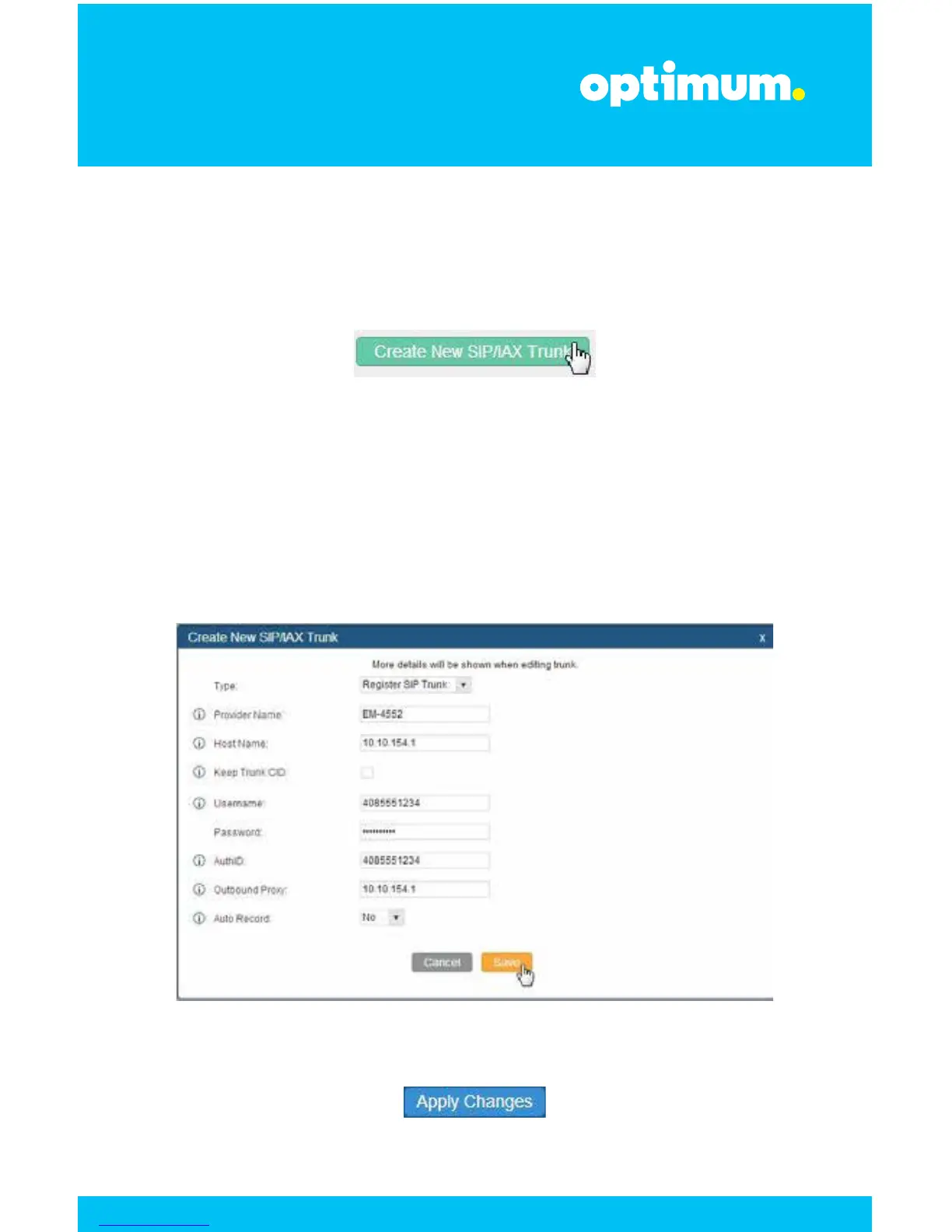

To register the Optimum Business SIP Trunk Adaptor to the PBX, navigate to
PBX4Basic/Call Routes4VoIP Trunks and click on Create New SIP/IAX Trunk.
When done click Save then Apply Changes from above.
Select Register SIP Trunk next to Type. Enter a name for the Optimum Business SIP
Trunk Adaptor next to Provider Name (EM-4552 was use in this example). The
Host Name field should follow the address of the Optimum Business SIP Trunk
Adaptor. Keep Trunk CID was left unchecked and is optional. If checked the Pilot
DID will be the Caller ID for the calls. The Username, Password and AuthID will be
the given credentials between the PBX and the Optimum Business SIP Trunk Adaptor.
The Outbound Proxy should also be the address of the Optimum Business SIP Trunk
Adaptor. Auto Record is optional.
SIP Trunk

Grandstream Networks UCM6102 Specifications

General

Brand	Grandstream Networks
Model	UCM6102
Category	PBX
Language	English
