QUICK INSTALLATION
Connecting the UCM6XXX

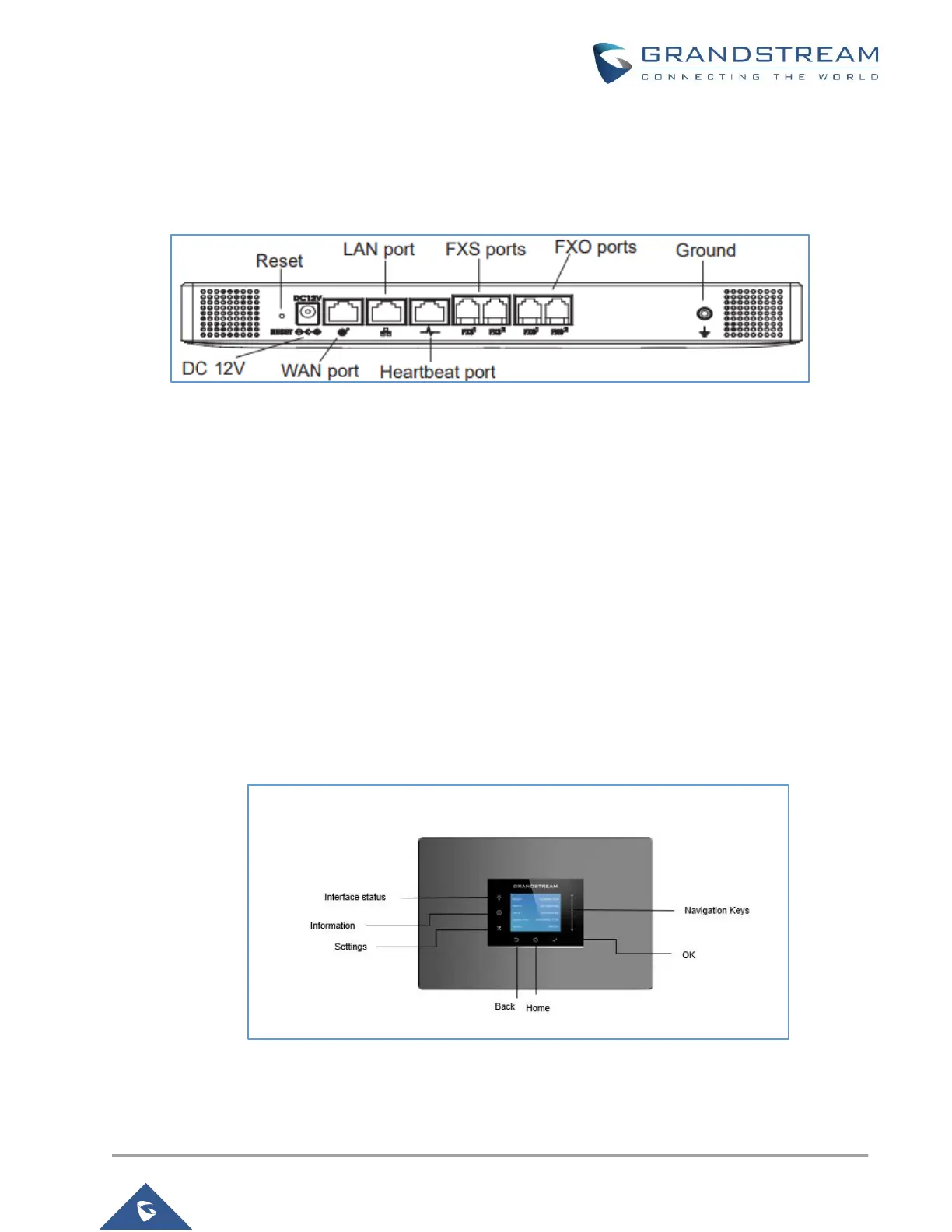

Figure 2: UCM6302 back view
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6301.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6301. Insert
the main plug of the power adapter into a surge-protected power outlet.
4. Wait for the UCM6301 to boot up. The LCD in the front will show the device hardware information when
the boot process is done.
5. Once the UCM6301 is successfully connected to network, press the home button to display the IP
address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and
Fax) to the FXS ports.
Figure 3: UCM6302 Top View
