UCM6510 CDR Report and CDR API Guide

Page 3 of 13

INTRODUCTION

CDR (Call Detail Record) is a data record produced by the PBX that contains attributes specific to a

single instance of phone call handled by the PBX. It has several data fields to provide detailed description

for the call, such as phone number of the calling party, phone number of the receiving party, start time,

call duration, and etc.

CDR FILTER

On the UCM6510, the CDR can be accessed under web UI->Status->CDR->CDR. Users could filter the

call report by specifying the date range and criteria, depending on how the users would like to include the

logs to the report. Then click on "View Report" button to display the generated report.

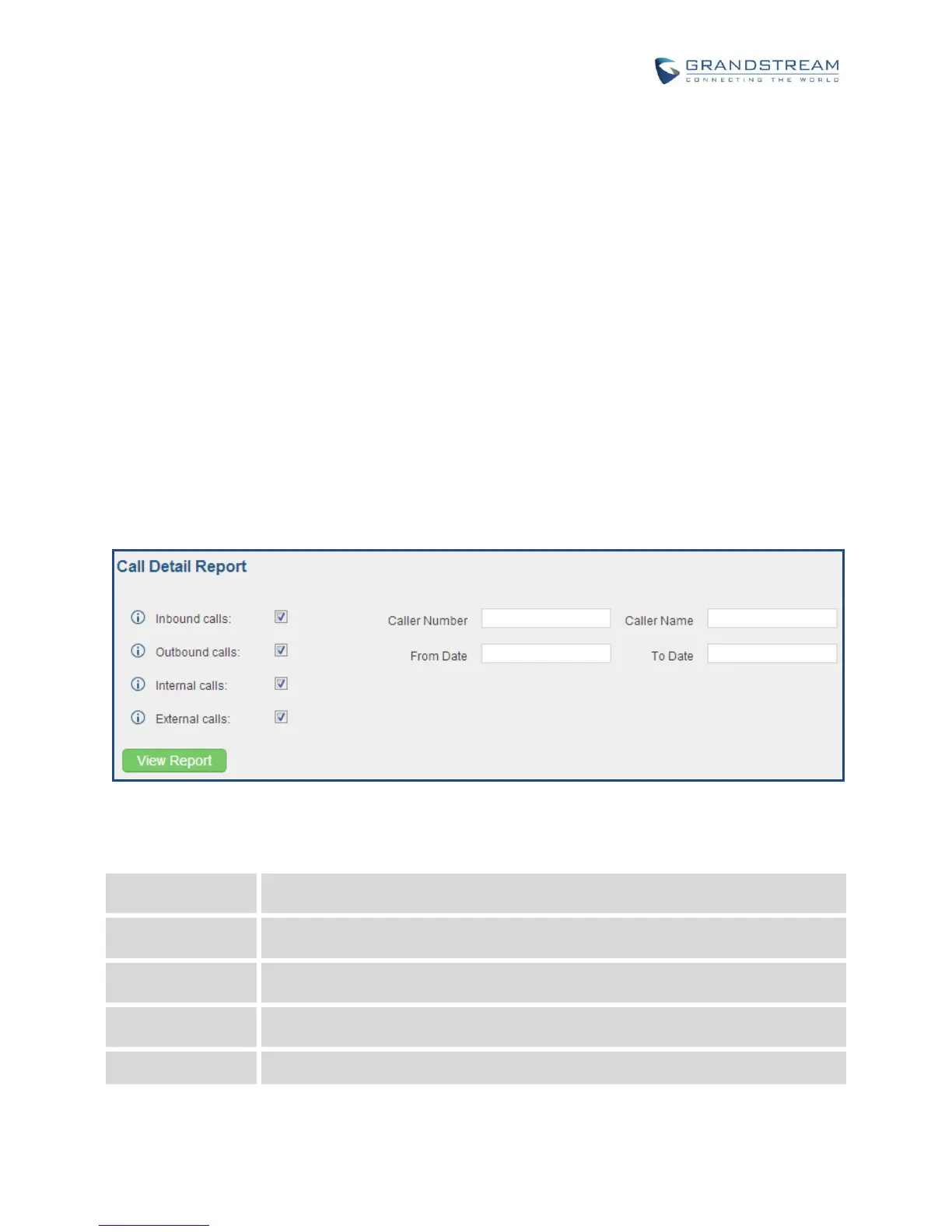

Figure 1: CDR Filter

Table 1: CDR Filter Criteria

Inbound calls

Inbound calls are calls originated from a non-internal source (like a VoIP trunk) and

sent to an internal extension.

Outbound calls

Outbound calls are calls sent to a non-internal source (like a VoIP trunk) from an

internal extension.

Internal calls

Internal calls are calls from one internal extension to another extension, which are

not sent over a trunk.

External calls

External calls are calls sent from one trunk to another trunk, which are not sent to

any internal extension.

Caller Number

Enter the caller number to be filtered in the CDR report.
